Technical Principle
Clinical Benefits

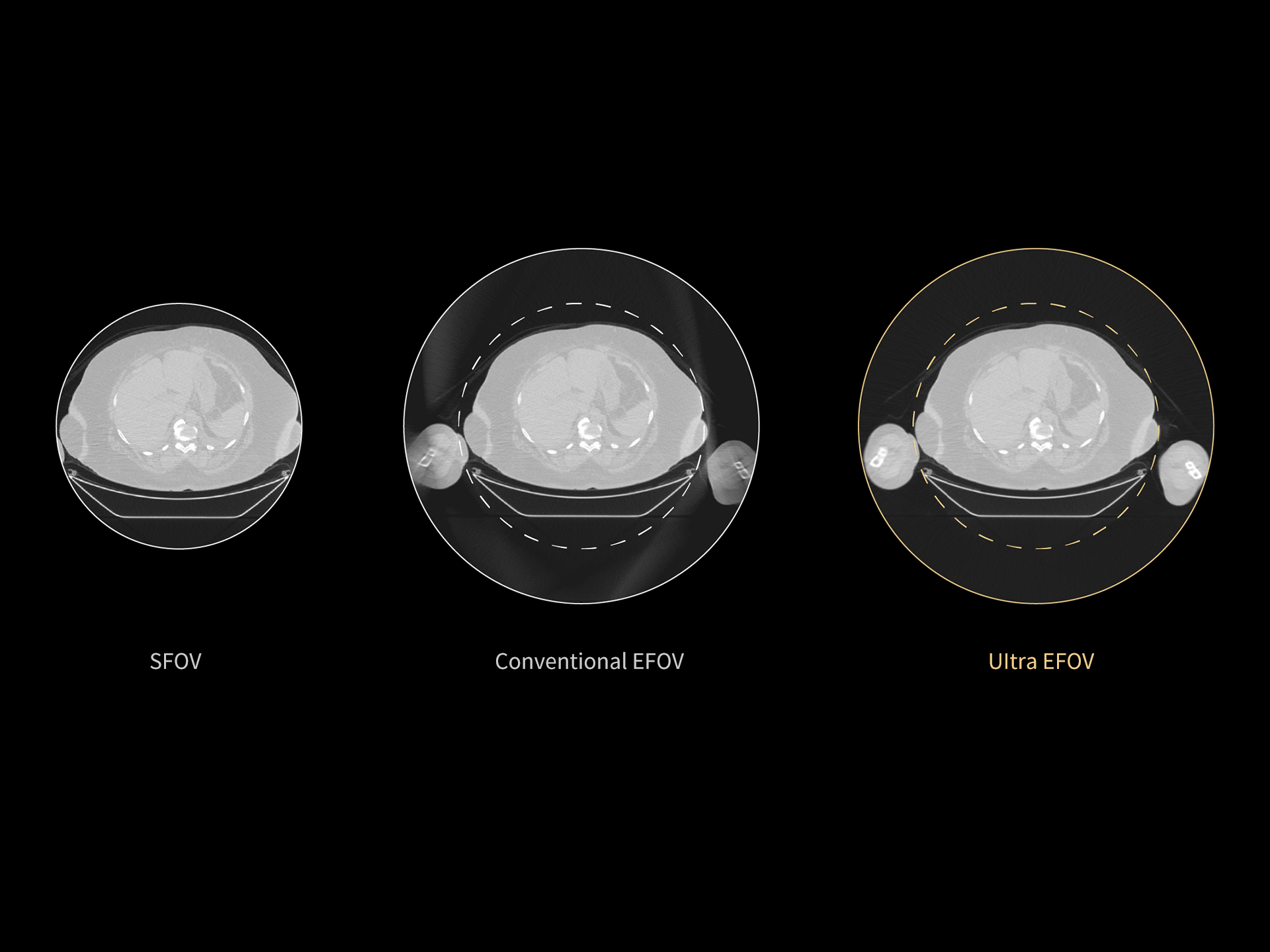

Powered by cutting-edge deep learning technology, Ultra EFOV (Ultra Extended Field of View) redefines the boundaries of imaging—capturing the entire bore-size view with remarkable clarity. It unveils additional anatomical structures, enhances skin contour definition, and delivers seamless image continuity at the SFOV (Scan Field of View) edge — so you always capture what matters.

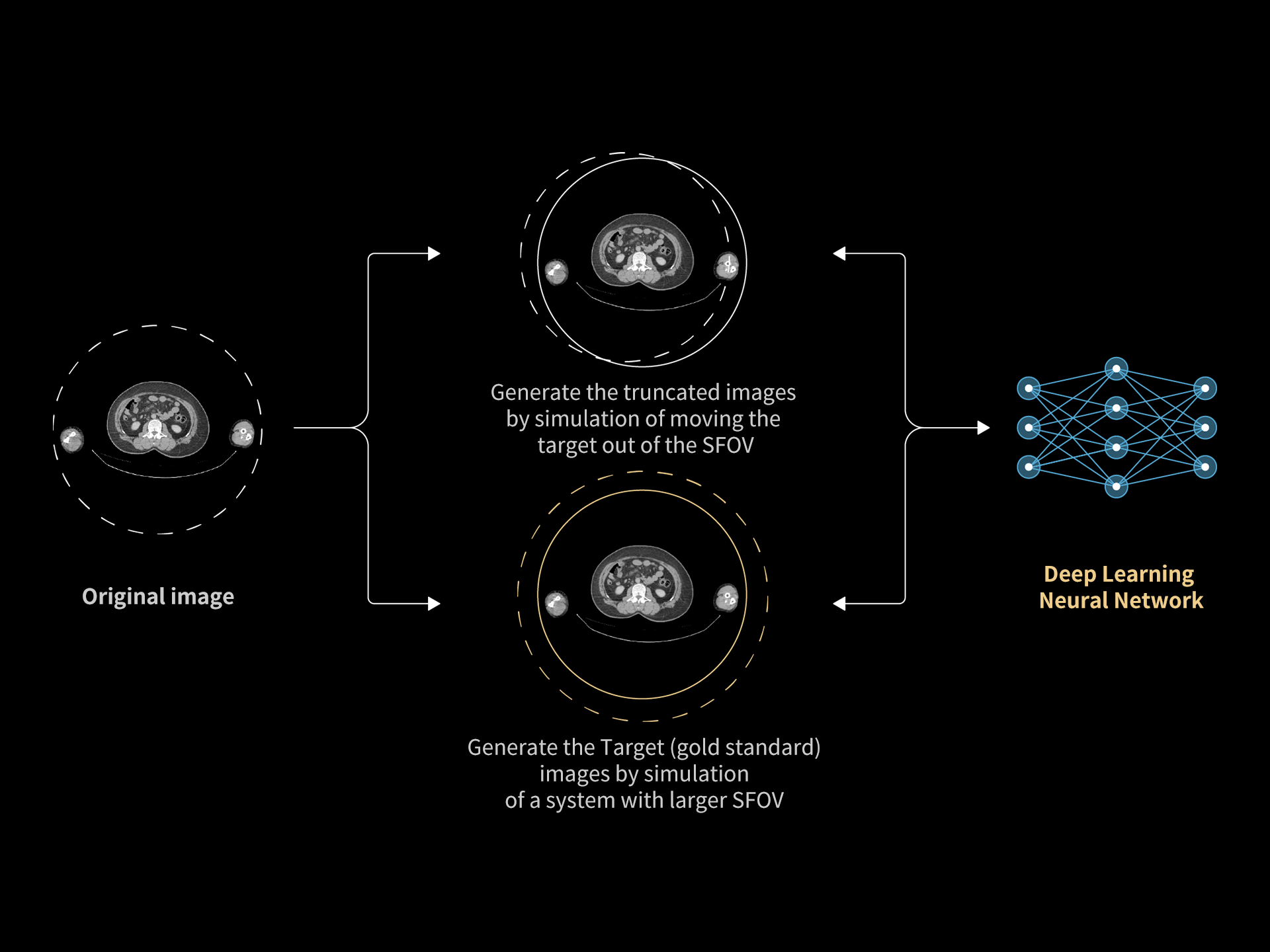

Ultra EFOV uses a deep learning model to learn the differences between high-quality, bore-size gold-standard images and simulated truncated images beyond the SFOV. With a training dataset of over 500,000 images, the model is capable of restoring missing anatomical details outside the SFOV, eliminating truncation artifacts, and delivering clearer, full field-of-view images.

Ultra EFOV maintains HU deviations within ±20 HU across the extended FOV range from 50 cm to 82 cm. Its deep learning-based model effectively compensates for HU drift at EFOV boundaries, enhancing the image quality of both soft tissue and bone.

Reveals more

Ultra EFOV uses a deep learning model to learn the differences between high-quality, bore-size gold-standard images and simulated truncated images beyond the SFOV. With a training dataset of over 500,000 images, the model is capable of restoring missing anatomical details outside the SFOV, eliminating truncation artifacts, and delivering clearer, full field-of-view images.

Quantifies precisely

Ultra EFOV maintains HU deviations within ±20 HU across the extended FOV range from 50 cm to 82 cm. Its deep learning-based model effectively compensates for HU drift at EFOV boundaries, enhancing the image quality of both soft tissue and bone.

Challenging Anatomy Imaging

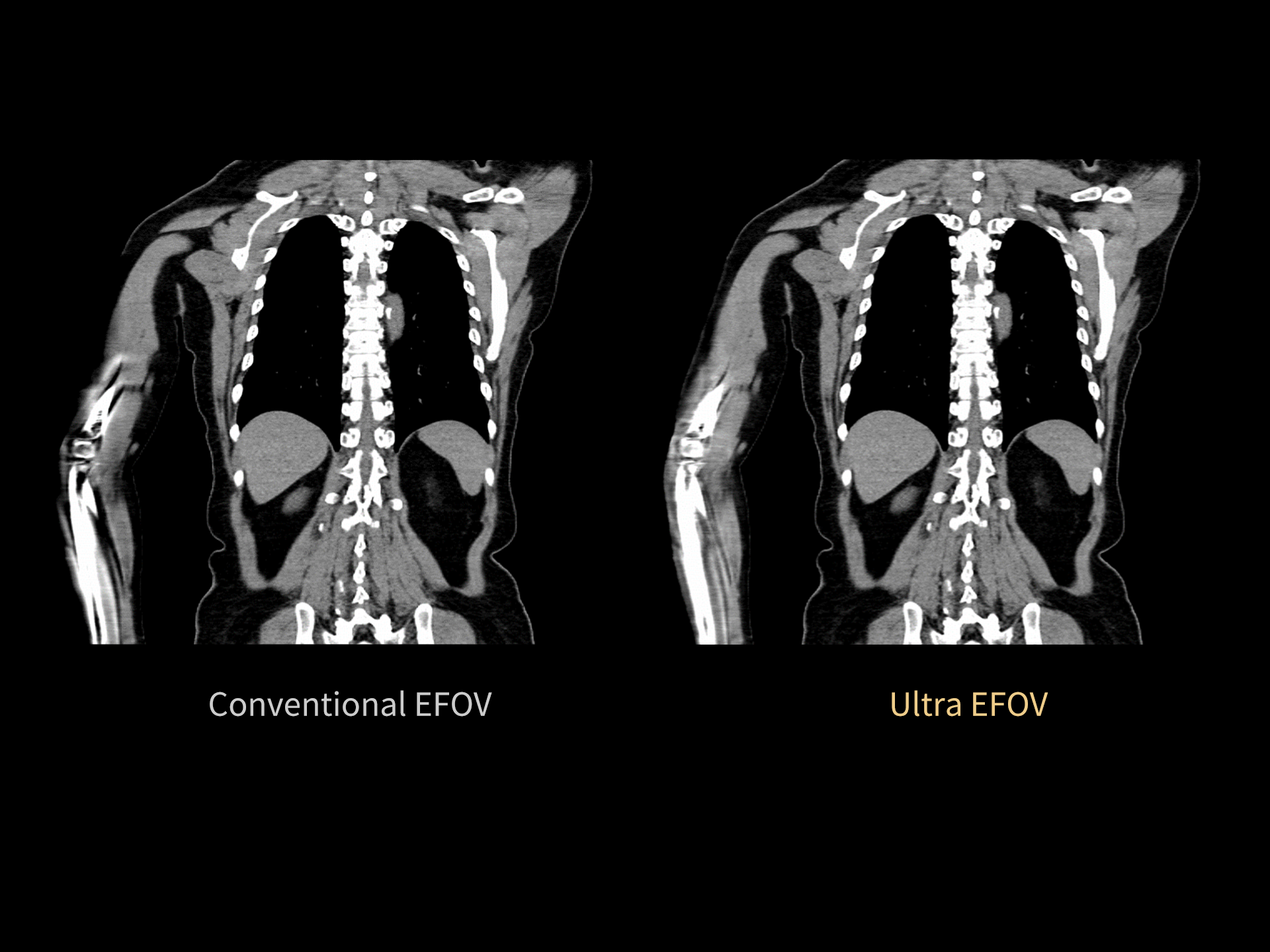

Ultra EFOV image shows clearer anatomical structures of an obese patient ( BMI 47.8 ) outside the SFOV.

kV: 120
mAs: 100
CTDIvol: 7.23 mGy

Positioning Flexibility

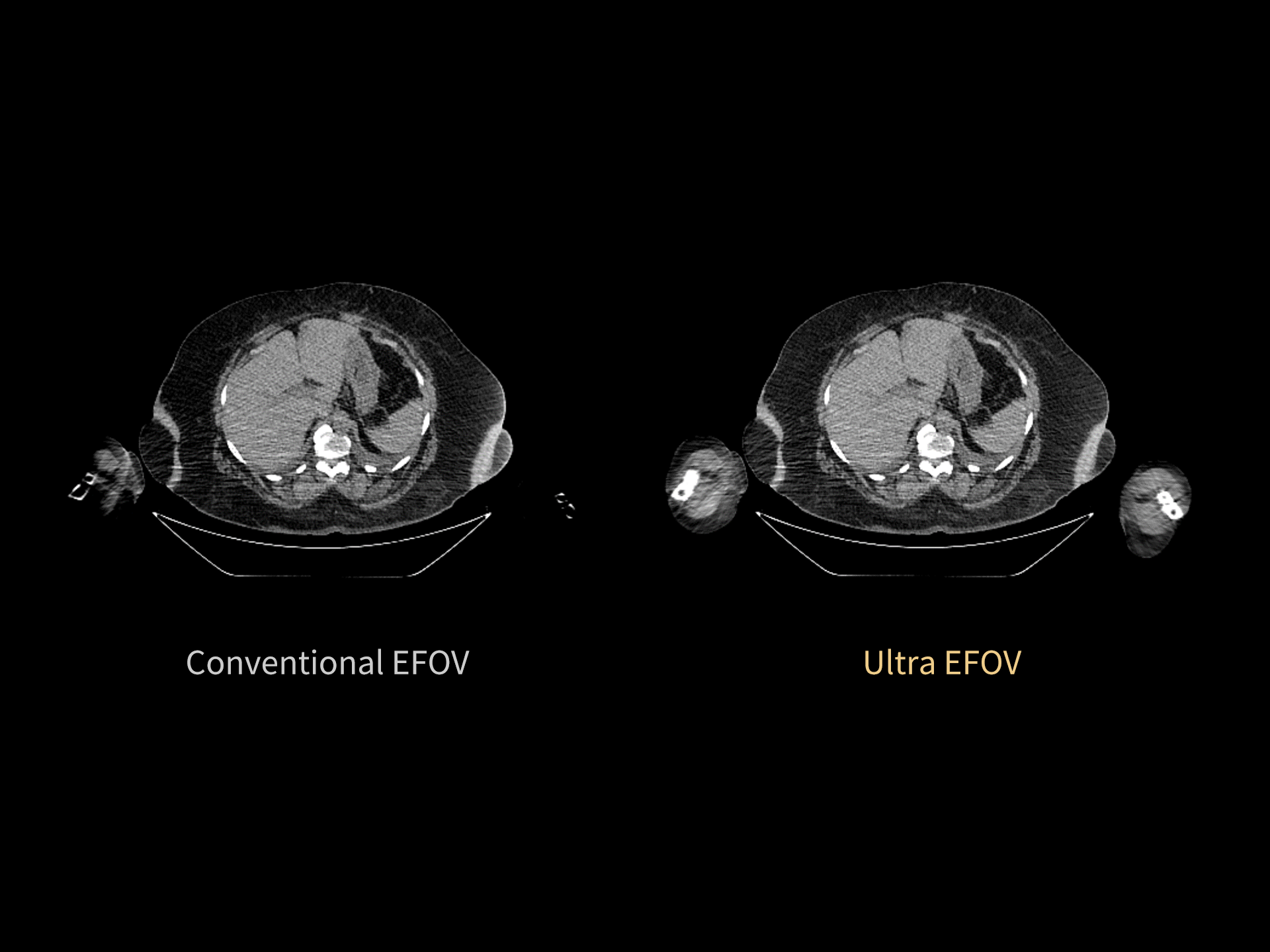

For the patient with special scan positioning, Ultra EFOV image shows superior continuity and improved image quality outside the SFOV.

kV: 120
mAs: 94
CTDIvol: 6.77 mGy

Positioning Flexibility

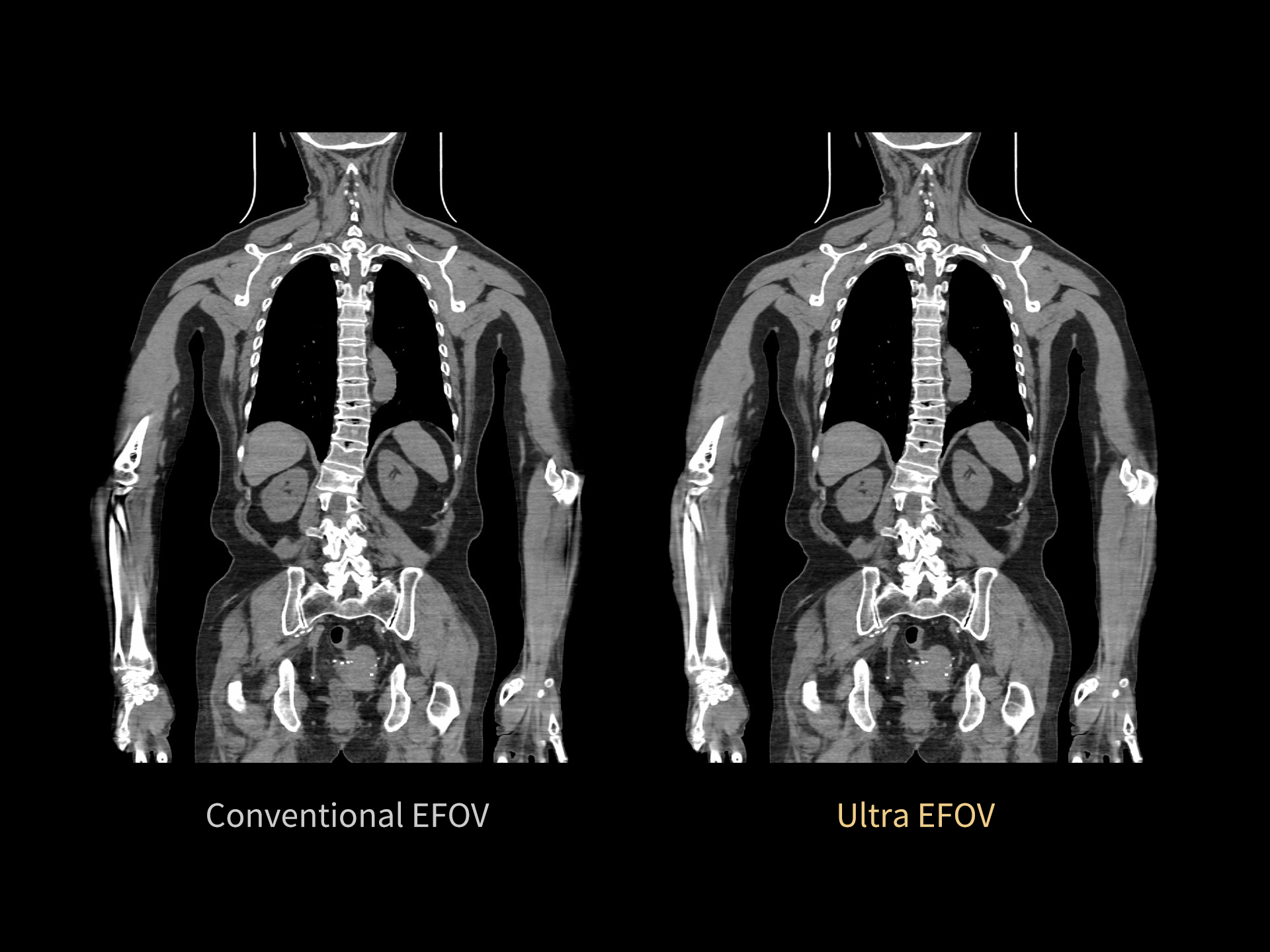

Ultra EFOV delivers bore-size images, reducing the truncation artifact for scoliosis patients while maintaining a natural arms-down position.

kV: 120
mAs: 109
CTDIvol: 7.26 mGy

Learn more about Ultra EFOV: Ultra EFOV Technical White Paper
