Designed for Precise Cardiac Imaging

Cardiac CT serves as a cornerstone in coronary and cardiac assessment, where precision directly determines patient treatment. Yet imaging the heart often involves complex challenges—soft and mixed plaques, stent and in-stent lumen evaluation, as well as blooming artifacts—all of which can degrade image quality and obscure critical details.
To overcome these hurdles, we developed CardioBoost, a cardiac-specific deep-learning reconstruction algorithm particularly trained to enhance clarity in these challenging scenarios and elevate diagnostic confidence.

3D Neural Network

Processing volumetric data, preserving spatial information.

Tissue Recognition & Classification

Boosting model robustness and improving tissue contrast.

Million-scaled Training Dataset

Optimizing resolution, enriching the depiction of subtle details.

Spatial Attention Module

Bringing clearer visualization of the targeting area such as plaques and stents.

Resolution Boost
Enhanced depiction of stent and stent lumen


示例图片
Up to 72%*
Improvements in spatial resolution at the same radiation dose


*CardioBoost images compared with FBP based on phantom tests. Data on file.

Contrast Boost
Refined visualization of calcified or mixed plaques with clearer edges

At the same radiation dose, CardioBoost simultaneously achieves:

示例图片
Up to 99%*
Low contrast detectability(LCD) improvements

Up to 97%*
Noise reduction

At the same LCD level, CardioBoost achieves:

Up to 70%*
Radiation dose reduction

*CardioBoost images compared with FBP based on phantom tests. Data on file.

Artifact Suppression
With spatial attention module, CardioBoost can precisely target the highly-dense area, reducing blooming artifacts , and therefore providing a precise evaluation about the degrees of coronary stenosis.
Resolution Boost
Enhanced depiction of stent and stent lumen


示例图片
Up to 72%*
Improvements in spatial resolution at the same radiation dose


*CardioBoost images compared with FBP based on phantom tests. Data on file.

Contrast Boost
Refined visualization of calcified or mixed plaques with clearer edges

At the same radiation dose, CardioBoost simultaneously achieves:

示例图片
Up to 99%*
Low contrast detectability(LCD) improvements

Up to 97%*
Noise reduction

At the same LCD level, CardioBoost achieves:

Up to 70%*
Radiation dose reduction

*CardioBoost images compared with FBP based on phantom tests. Data on file.

Artifact Suppression
With spatial attention module, CardioBoost can precisely target the highly-dense area, reducing blooming artifacts , and therefore providing a precise evaluation about the degrees of coronary stenosis.

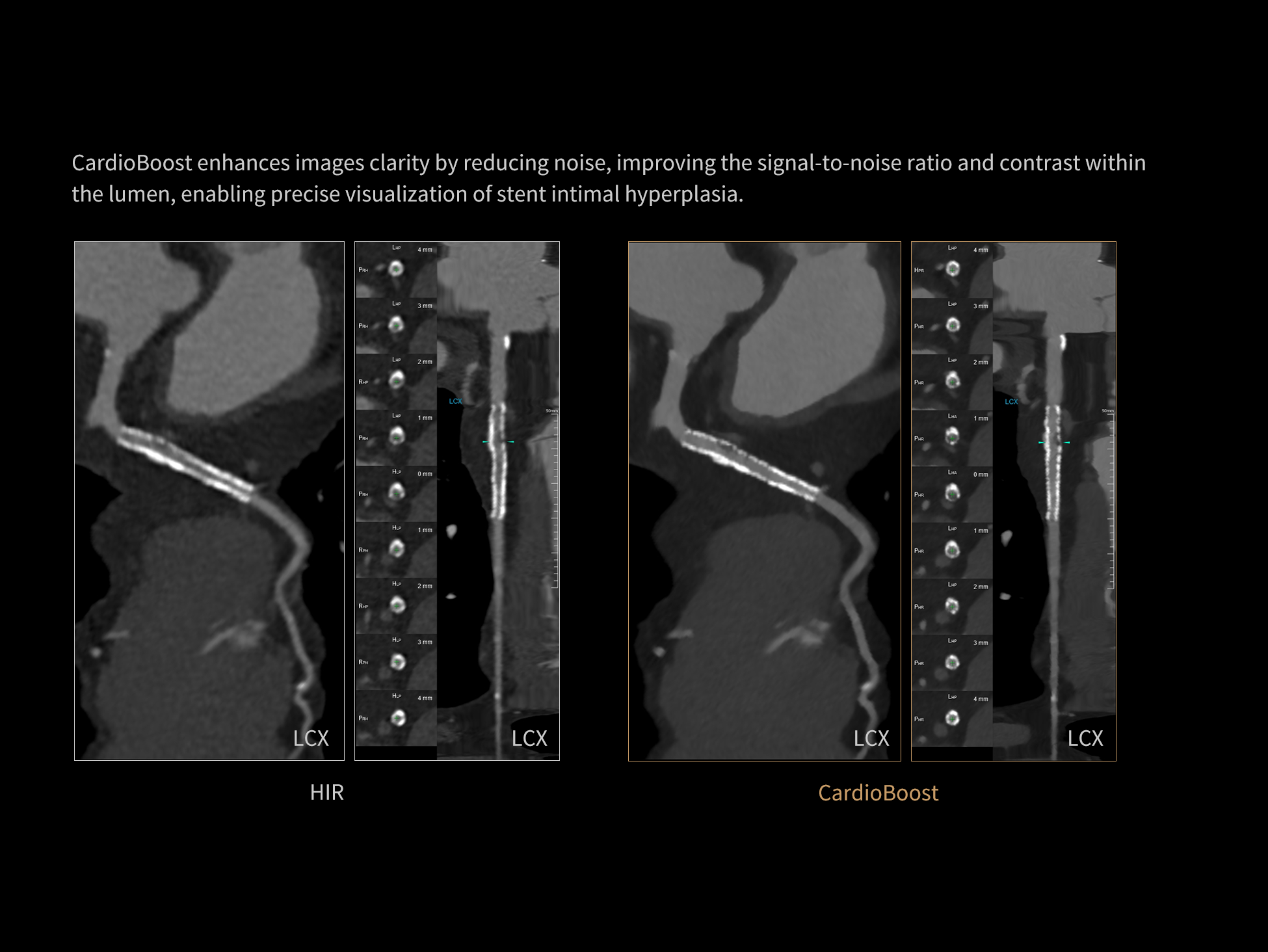

Stent

Plaque

Complications

Low Dose

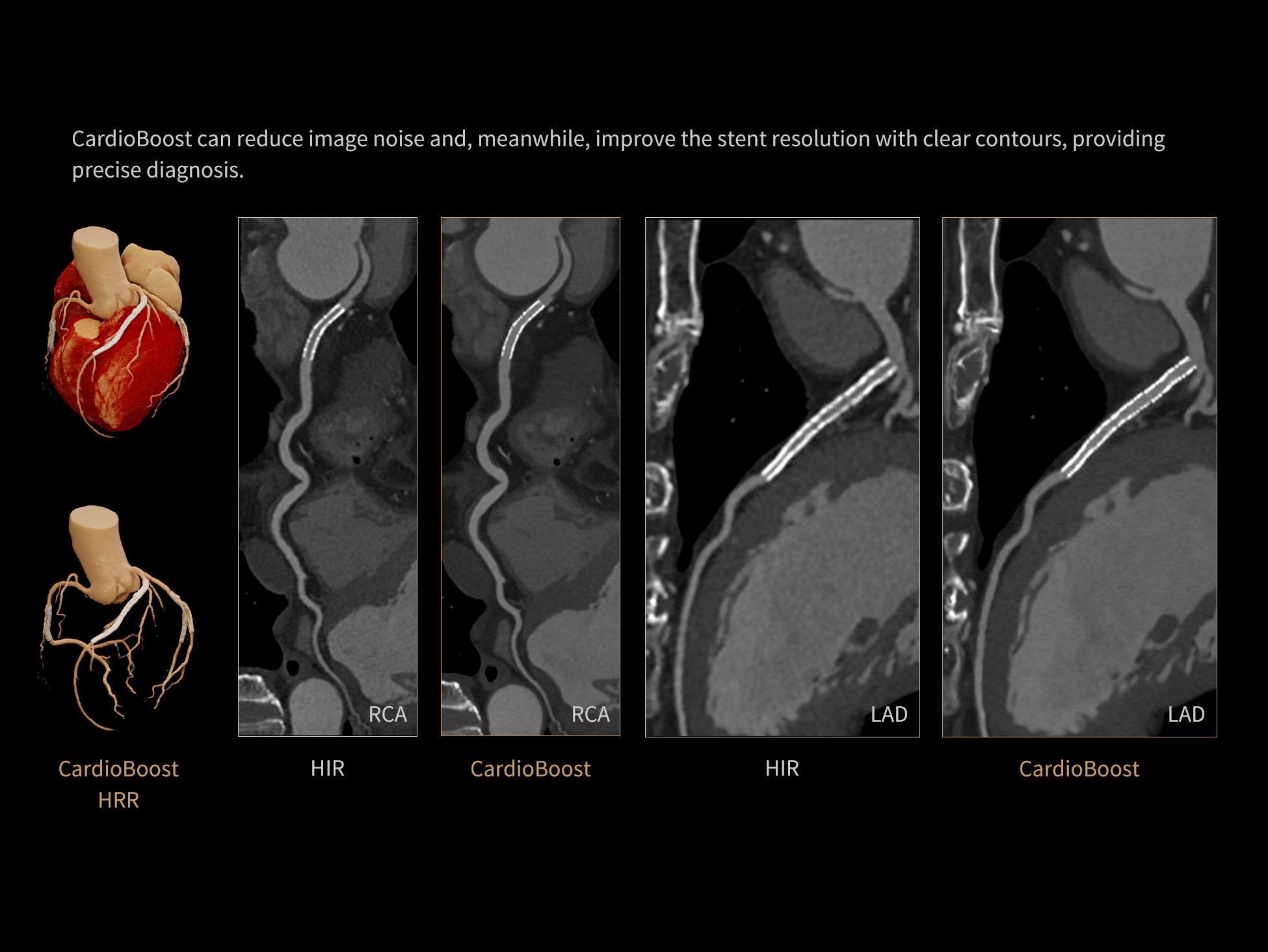

Stent

Scan Parameters:
kV: 100
mAs: 126
0.25 s/rotation
CTDIvol: 14.3 mGy
ED: 2.8 mSv

Reconstruction:
HIR: C_SOFT_AA, KARL: 8
0.5 mm * 0.5 mm
CardioBoost: 1
0.5 mm * 0.5 mm

Contrast:
50 ml, 4.5 ml/s

CT Scanner:
uCT 960+

Stent

Scan Parameters:
kV: 100
mAs: 130
0.25 s/rotation
CTDIvol: 13.1 mGy
ED: 4.0 mSv

Reconstruction:
HIR: C_SOFT_AA, KARL: 8
0.5 mm * 0.5 mm
CardioBoost: 1
0.5 mm * 0.5 mm

Contrast:
60 ml, 4.5 ml/s

CT Scanner:
uCT 868

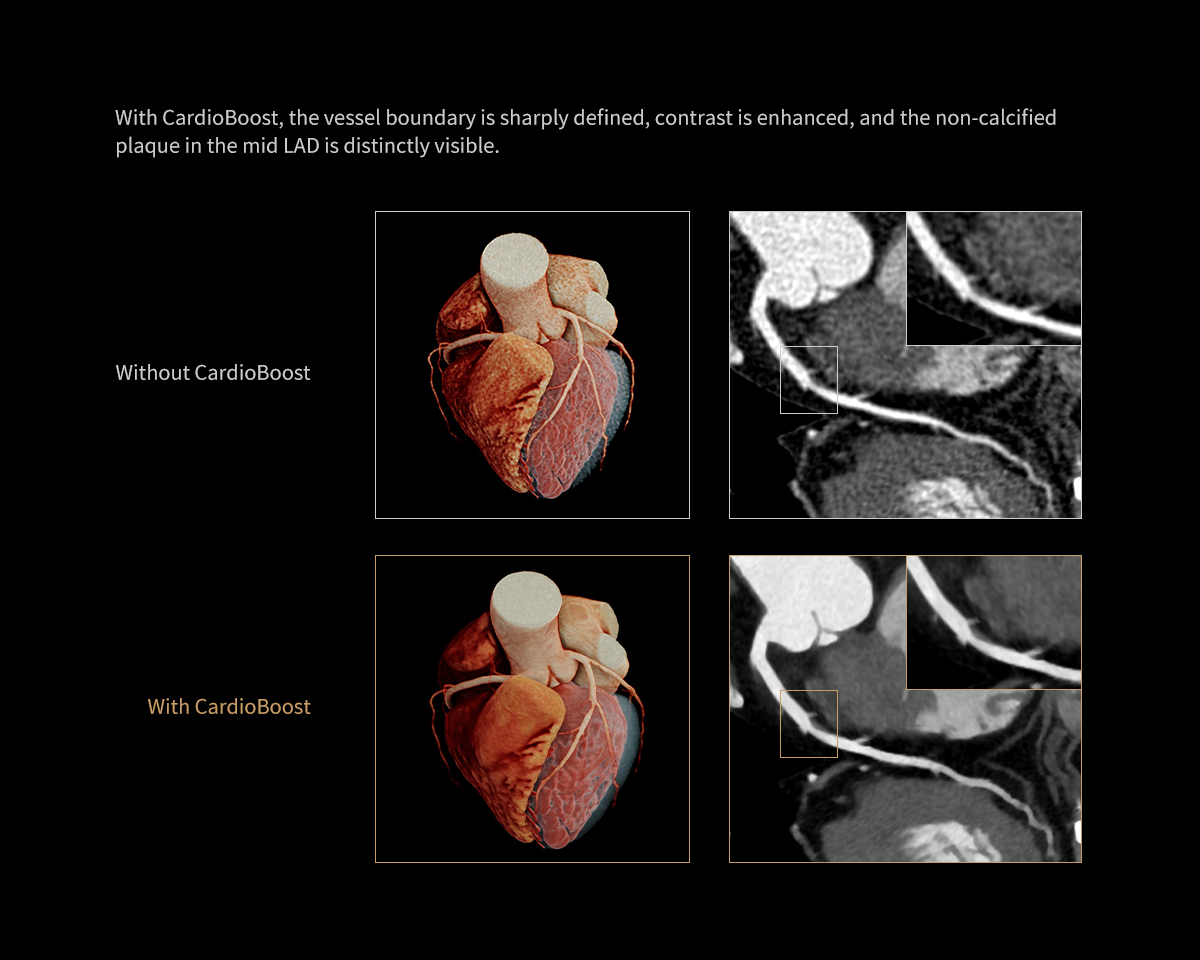

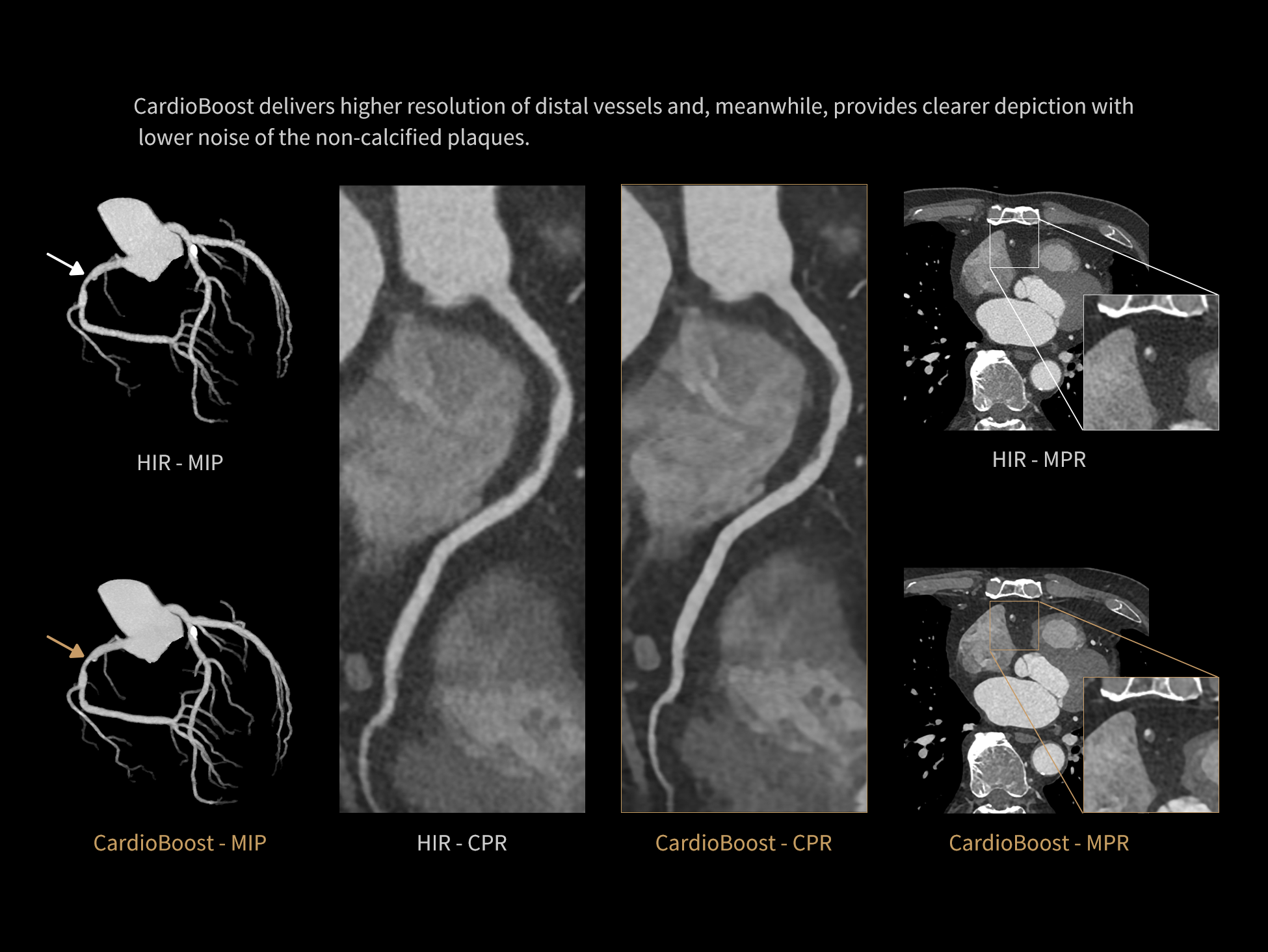

Plaque

Scan Parameters:
kV: 100
mAs: 187
0.25 s/rotation
CTDIvol: 21.13 mGy
ED: 4.73 mSv

Reconstruction:
HIR: C_SOFT_AA, KARL: 8
0.5 mm * 0.5 mm
CardioBoost: 1
0.5 mm * 0.5 mm

Contrast:
50 ml, 4.5 ml/s

CT Scanner:
uCT 960+

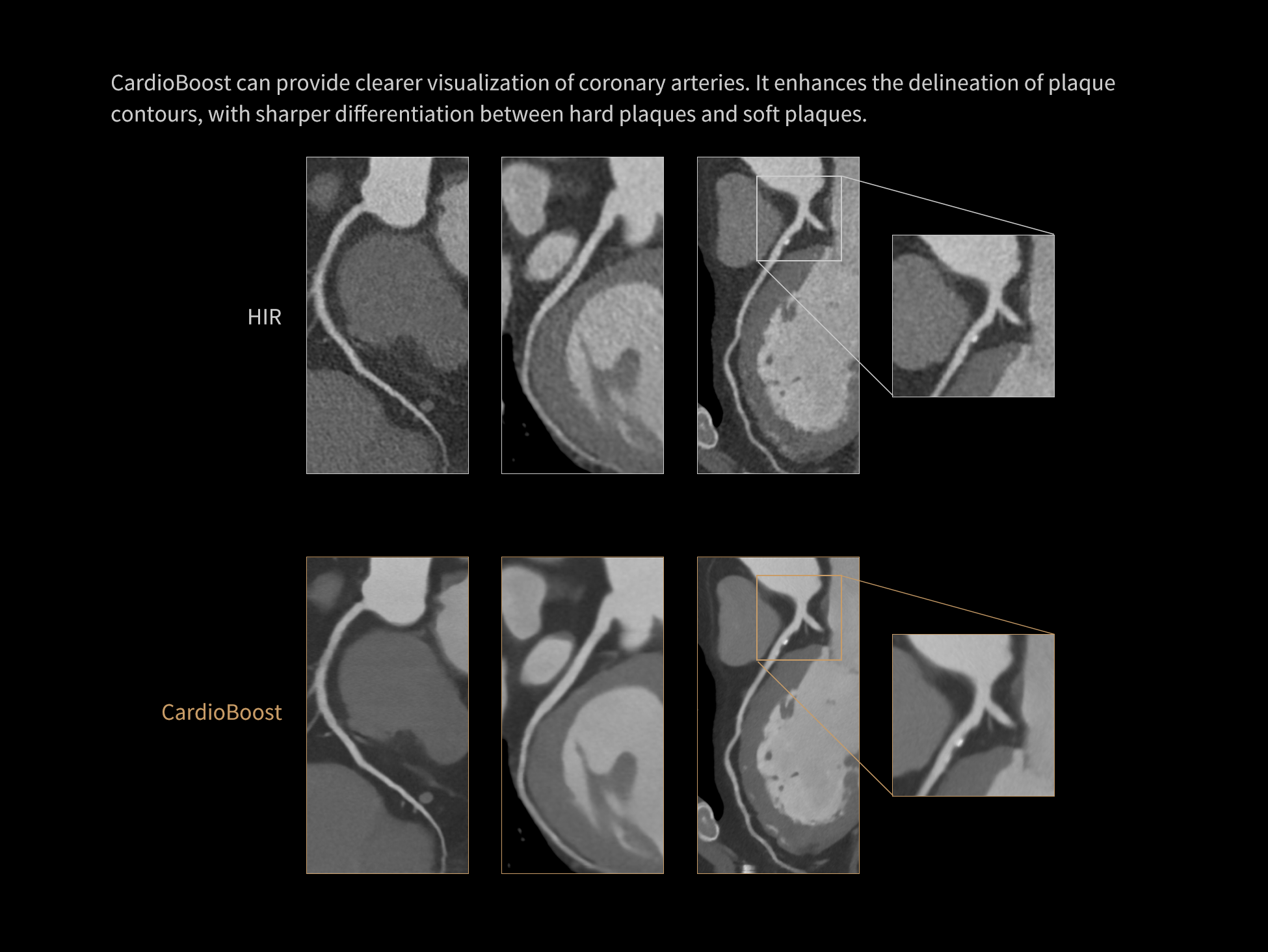

Plaque

Scan Parameters:
kV: 100
0.25 s/rotation
CTDIvol: 12.0 mGy
ED: 3.5 mSv

Reconstruction:
HIR: C_SOFT_AA, KARL: 8
0.5 mm * 0.5 mm
CardioBoost: 1
0.5 mm * 0.5 mm

Contrast:
60 ml, 4.5 ml/s

CT Scanner:
uCT 868

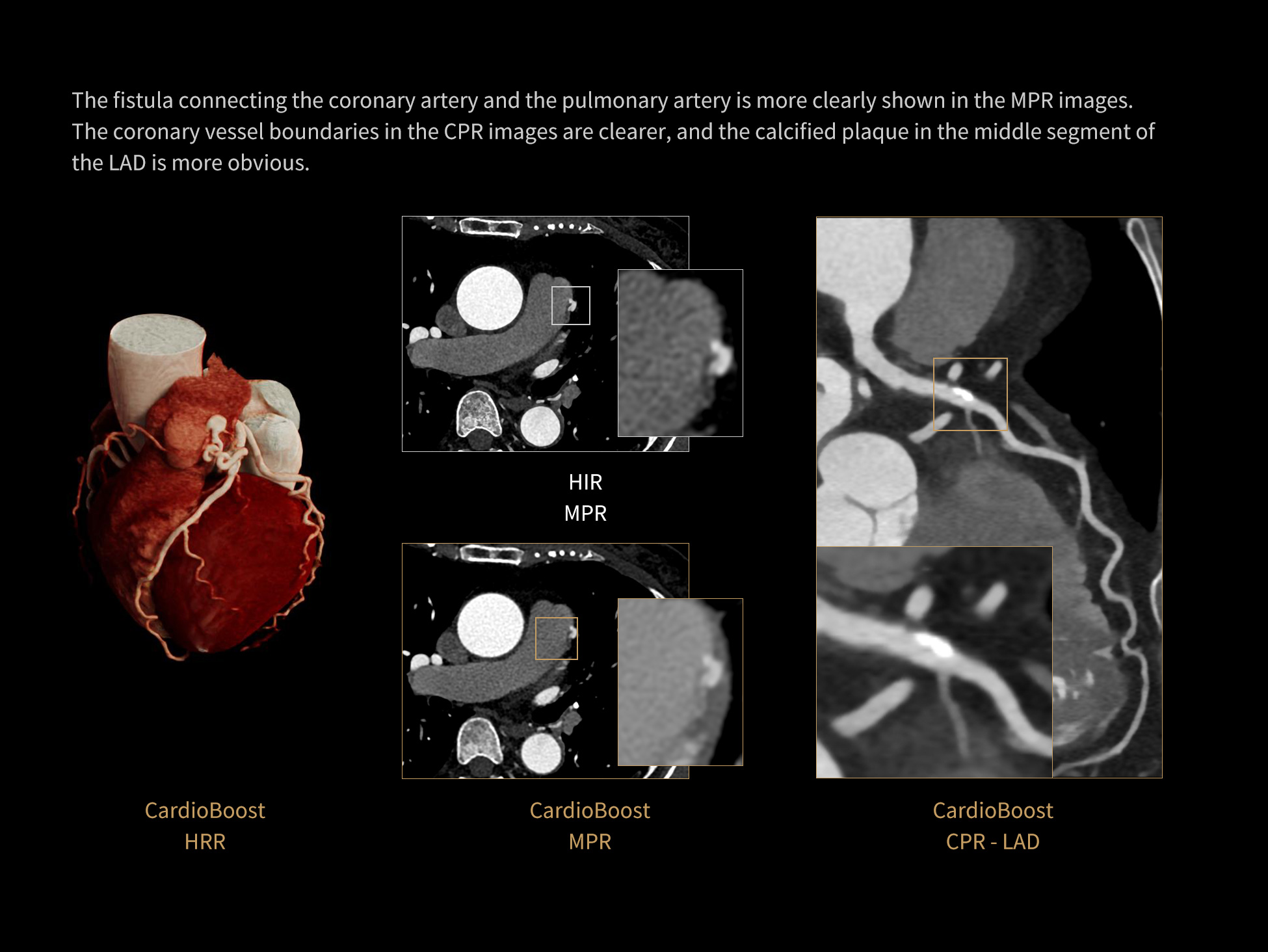

Plaque

Scan Parameters:
kV: 100
mAs: 140
0.25 s/rotation
CTDIvol: 29.29 mGy
ED: 6.34 mSv

Reconstruction:
HIR: C_SOFT_BA, KARL: 5
0.75 mm * 0.5 mm
CardioBoost: 3
0.75 mm * 0.5 mm

Contrast:
60 ml, 5.0 ml/s

CT Scanner:
uCT 820

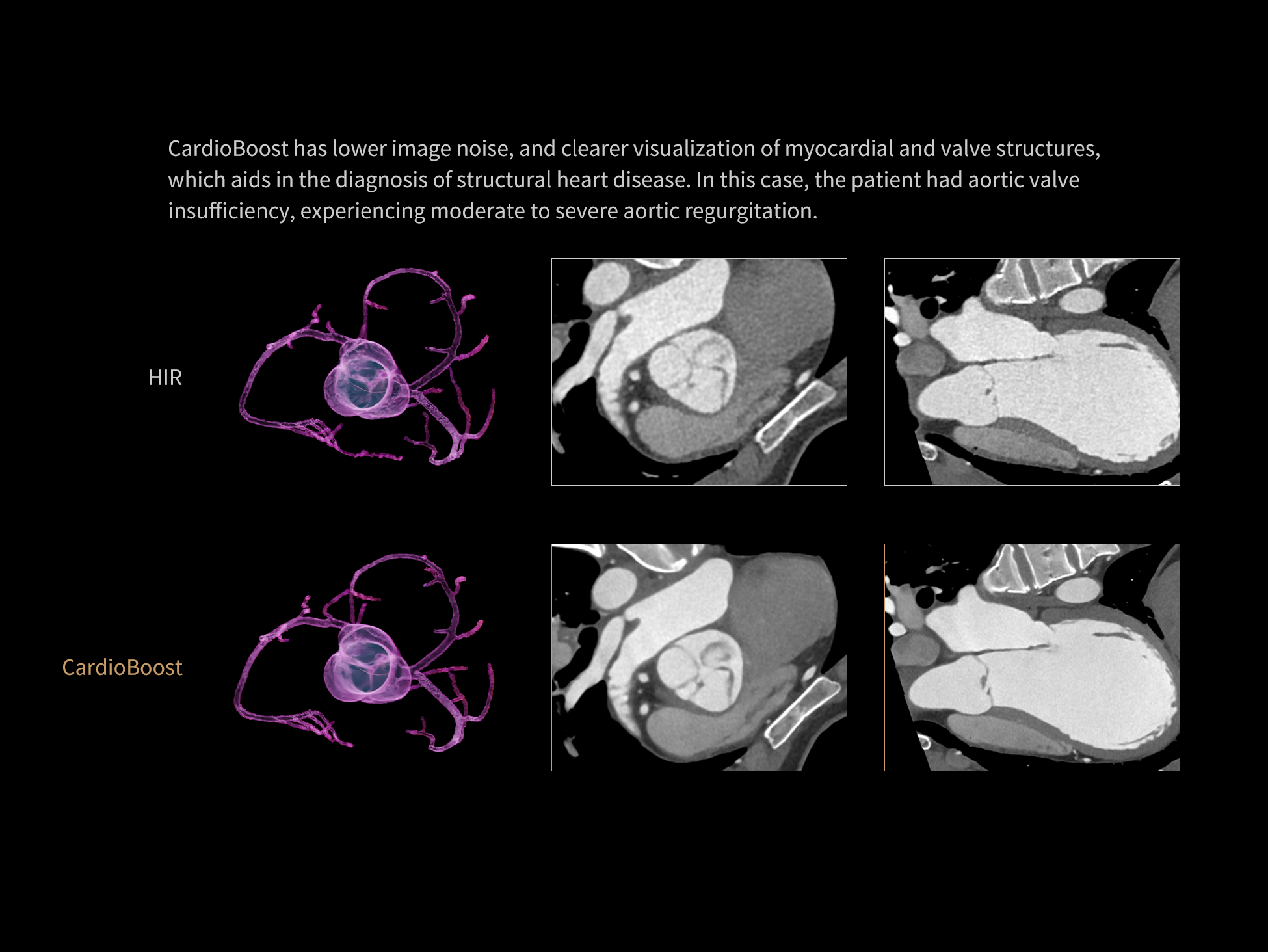

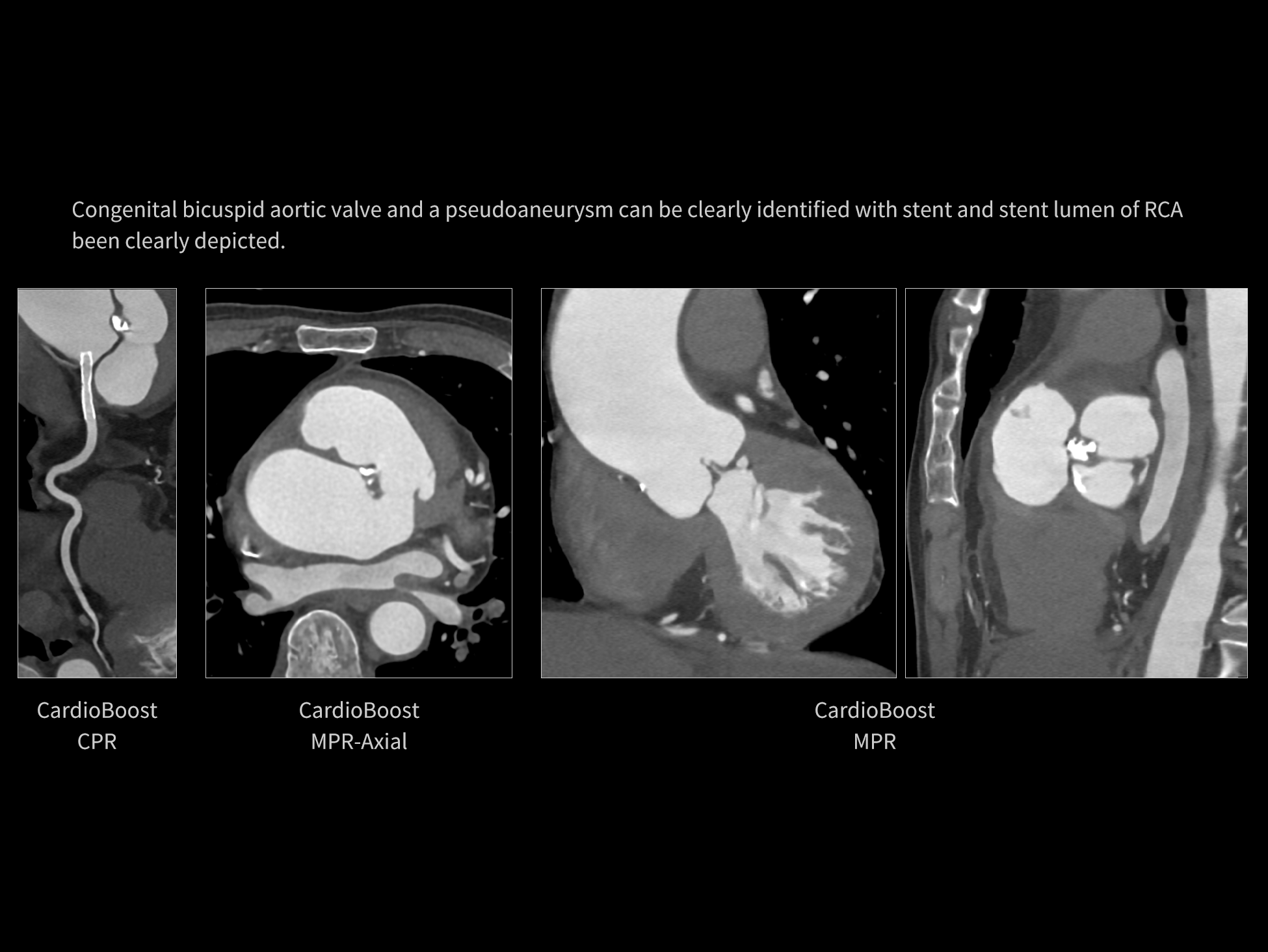

Complications

Scan Parameters:
kV: 100
mAs: 106
0.25 s/rotation
CTDIvol: 11.67 mGy
ED: 2.61 mSv

Reconstruction:
HIR: C_SOFT_AA, KARL: 8
0.5 mm * 0.5 mm
CardioBoost: 1
0.5 mm * 0.5 mm

Contrast:
50 ml, 4.5 ml/s

CT Scanner:
uCT 960+

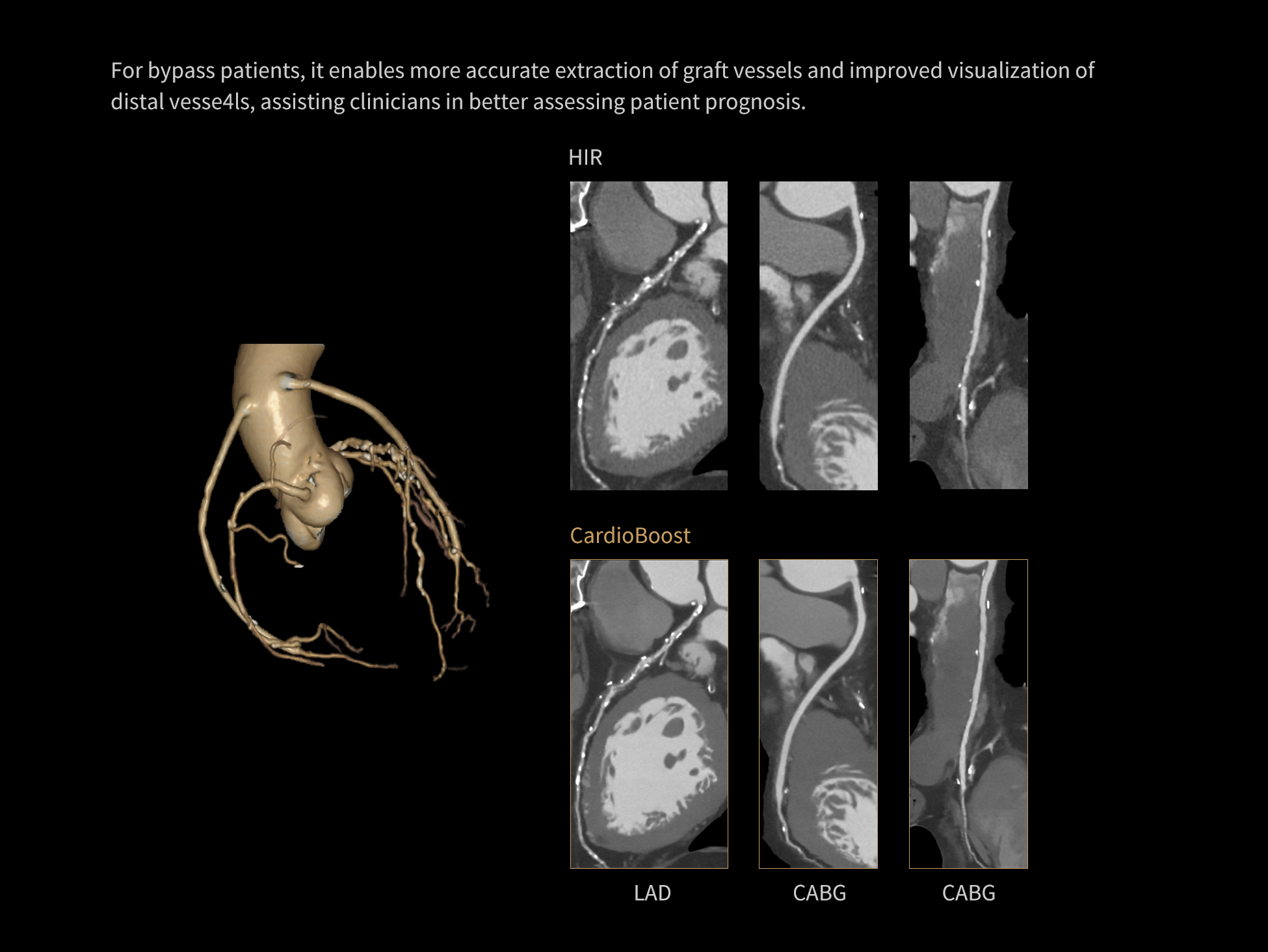

Complications

Scan Parameters:
kV: 100
mAs: 160
0.25 s/rotation
CTDIvol: 32.15 mGy
ED: 7.13 mSv

Reconstruction:
HIR: C_SOFT_BA, KARL: 5
0.75 mm * 0.5 mm
CardioBoost: 3
0.75 mm * 0.5 mm

Contrast:
65 ml, 4.5 ml/s

CT Scanner:
uCT 820

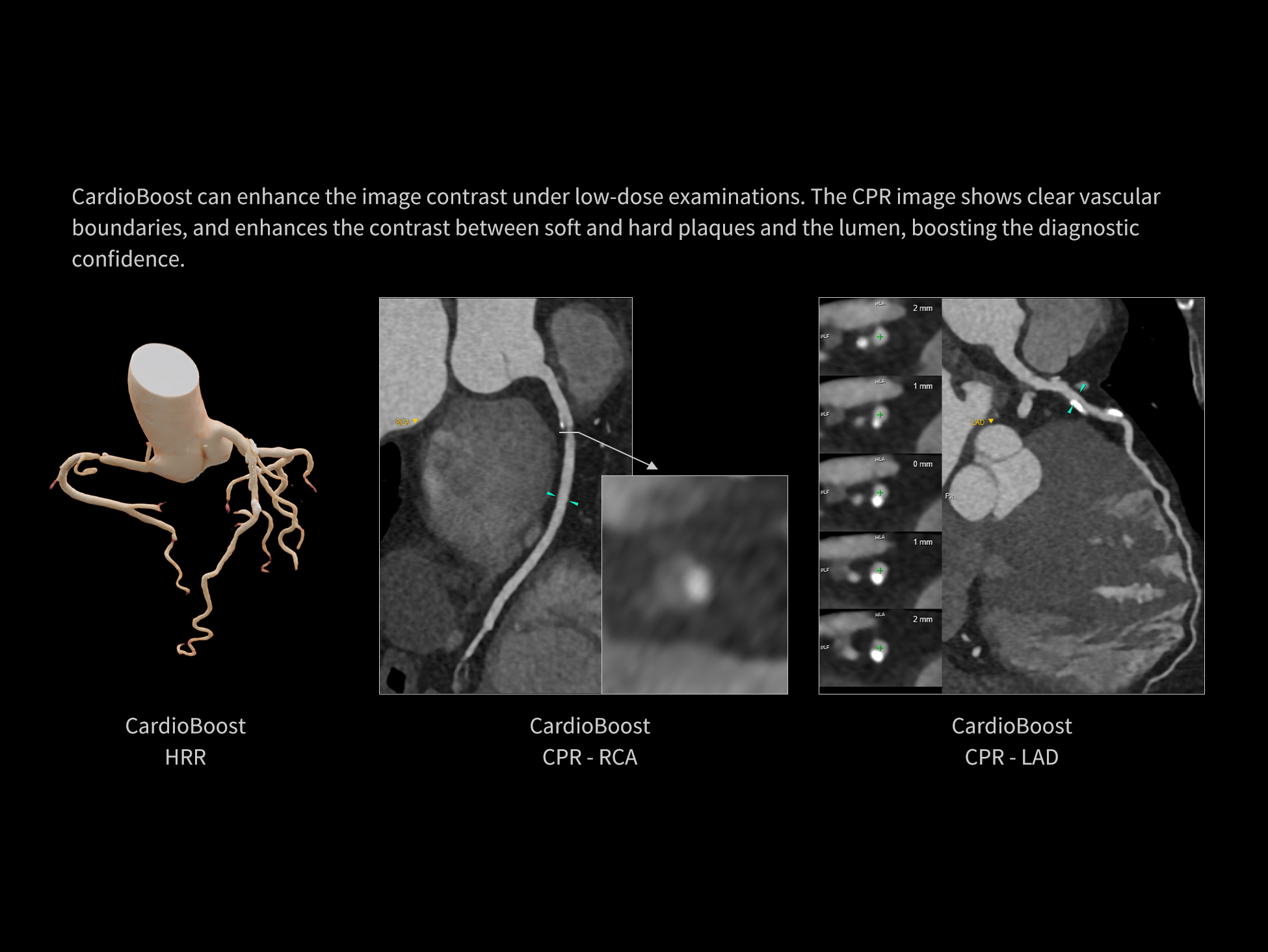

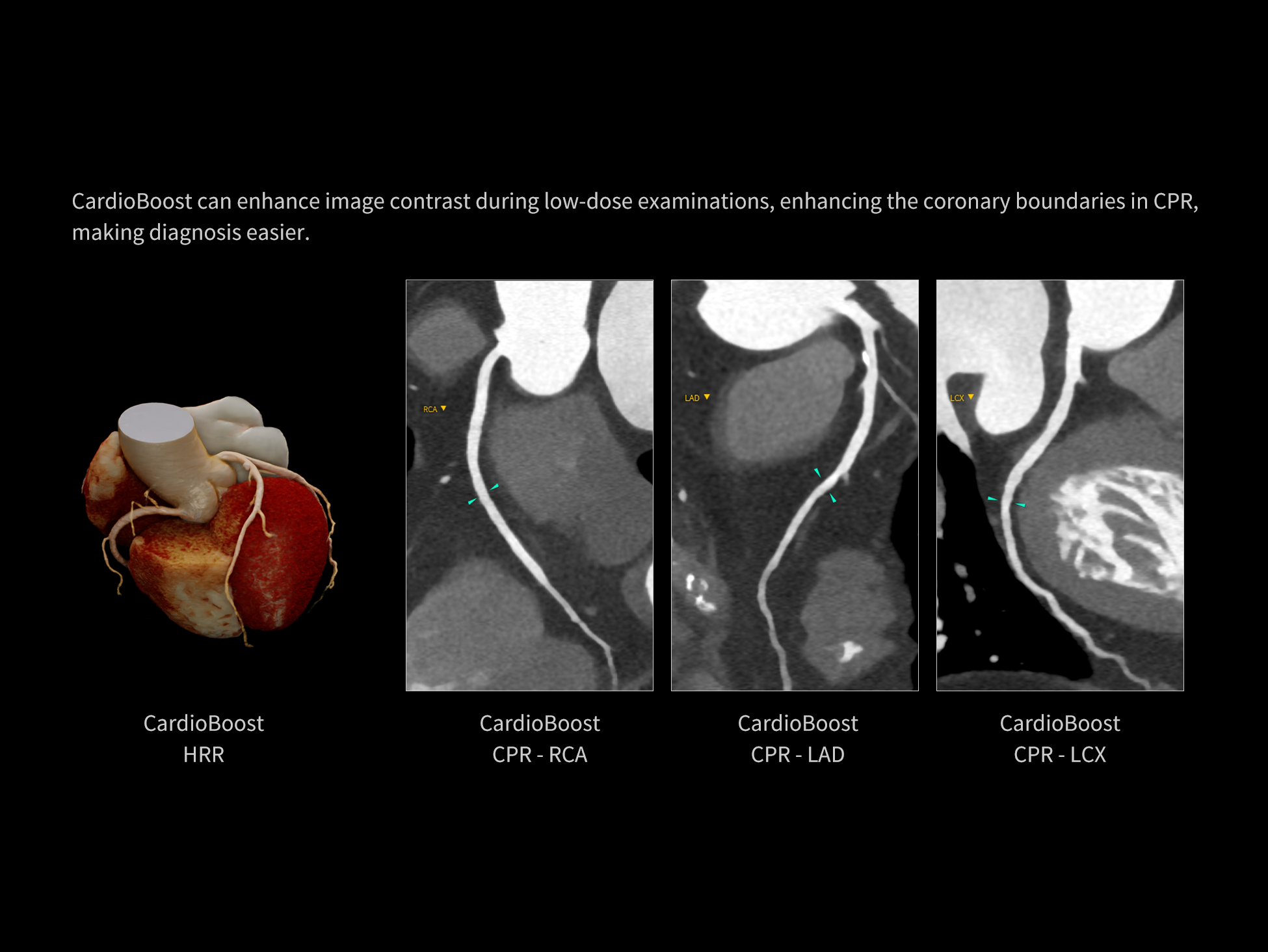

Low Dose

Scan Parameters:
kV: 80
mAs: 148
0.25 s/rotation
CTDIvol: 7.28 mGy
ED: 1.43 mSv

Reconstruction:
HIR: C_SOFT_AA, KARL: 8
0.5 mm * 0.5 mm
CardioBoost: 1
0.5 mm * 0.5 mm

Contrast:
55 ml, 4.0 ml/s

CT Scanner:
uCT 960+

Low Dose

Scan Parameters:
kV: 80
mAs: 148
0.25 s/rotation
CTDIvol: 7.81 mGy
ED: 1.53 mSv

Reconstruction:
HIR: C_SOFT_AA, KARL: 8
0.5 mm * 0.5 mm
CardioBoost: 1
0.5 mm * 0.5 mm

Contrast:
55 ml, 4.0 ml/s

CT Scanner:
uCT 960+

Low Dose

Scan Parameters:
kV: 80
mAs: 197
0.25 s/rotation
CTDIvol: 9.76 mGy
ED: 1.91 mSv

Reconstruction:
HIR: C_SOFT_AA, KARL: 8
0.5 mm * 0.5 mm
CardioBoost: 1
0.5 mm * 0.5 mm

Contrast:
55 ml, 4.5 ml/s

CT Scanner:
uCT 960+

Low Dose

Scan Parameters:
kV: 100
mAs: 102
0.25 s/rotation
CTDIvol: 8.00 mGy
ED: 1.57 mSv

Reconstruction:
HIR: C_SOFT_AA, KARL: 5
0.5 mm * 0.5 mm
CardioBoost: 1
0.5 mm * 0.5 mm

Contrast:
50 ml, 4.0 ml/s

CT Scanner:
uCT 960+

Learn more about CardioBoost: CardioBoost Technical White Paper
