A 3T MR that cares for ALL
uMR Astra

Comfort, complexity, and clinical challenges have long been topics in MR devices. It is difficult to systematically address these issues solely through fragmented comfort improvements and AI innovations.
Taking 「care」 as the core driving force of design, uMR Astra creates comprehensive care experiences for different roles with a new generation of RF design and clustered AI technologies that empowers the whole process and all scenarios.

Care for Patients

Comfort is the most intuitive criterion for patients to evaluate an MR scanning experience. The ultimate proactive patient care should be a full-sensory comfort design: Astra-filled bore for vision, coils and cushions for touching, and silent scanning for hearing – that is, a sight that calms the heart, a touch that warms the soul, a sound that sooths the mind. uMR Astra delivers a serene experience for patients.

Full-Range Multi-Size SuperFlex Coils

uMR Astra has expanded the SuperFlex family to 9 members. Featuring 10+ breakthrough technological innovations, the SuperFlex Coils on uMR Astra come in a variety of sizes and shapes, all with significantly high coil density, and thus show prominent SNR increase on images. These coils deliver excellent adaptability and enhanced patient comfort, making them ideal for a wide range of clinical applications.

With a 92.0×61.6 cm² size with no effective area limitation, SuperFlex Whole Body – 48 provides large scanning coverage for various body types, from thorax to abdomen and pelvis. This enables efficient one-stop large-scale imaging, delivering comprehensive anatomical information for patients and doctors.

With great progress on decoupling technology, UHD SuperFlex Small – 24 achieves a coil density of 229 elements/m², delivering a significant improvement in image SNR over previous generations.

Traditional shoulder coils are mostly constructed with rigid components, leading to poor fixation on varied body contours and compromised image quality. Shoulder Coil – 24 on uMR Astra features a wearable design with exceptional adaptability, achieving superior patient comfort and outstanding image quality.

Featuring a unique soft, lightweight shawl-like design, UHD SuperFlex Neck & Chest – 24 ensures exceptional comfort during thoracic and vascular scans. It also enables efficient one-stop head-carotid-aorta imaging for comprehensive vascular screening and evaluation.

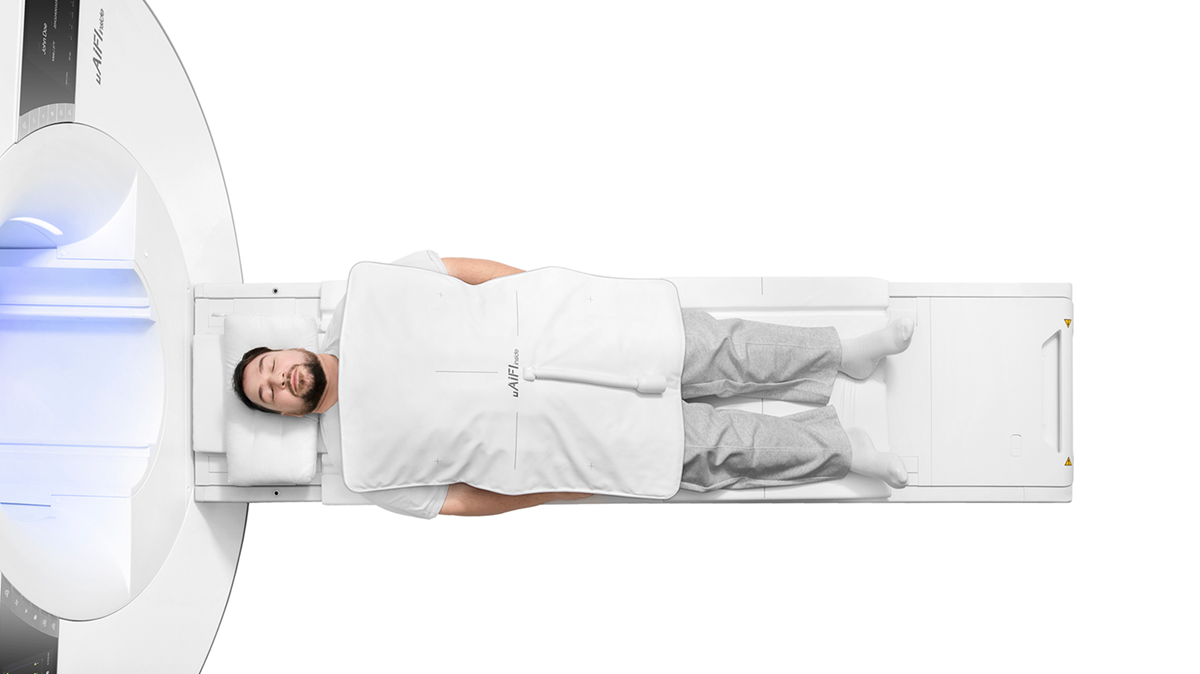

SuperFlex Whole Body – 48 (SFWB48)

With a 92.0×61.6 cm² size with no effective area limitation, SuperFlex Whole Body – 48 provides large scanning coverage for various body types, from thorax to abdomen and pelvis. This enables efficient one-stop large-scale imaging, delivering comprehensive anatomical information for patients and doctors.

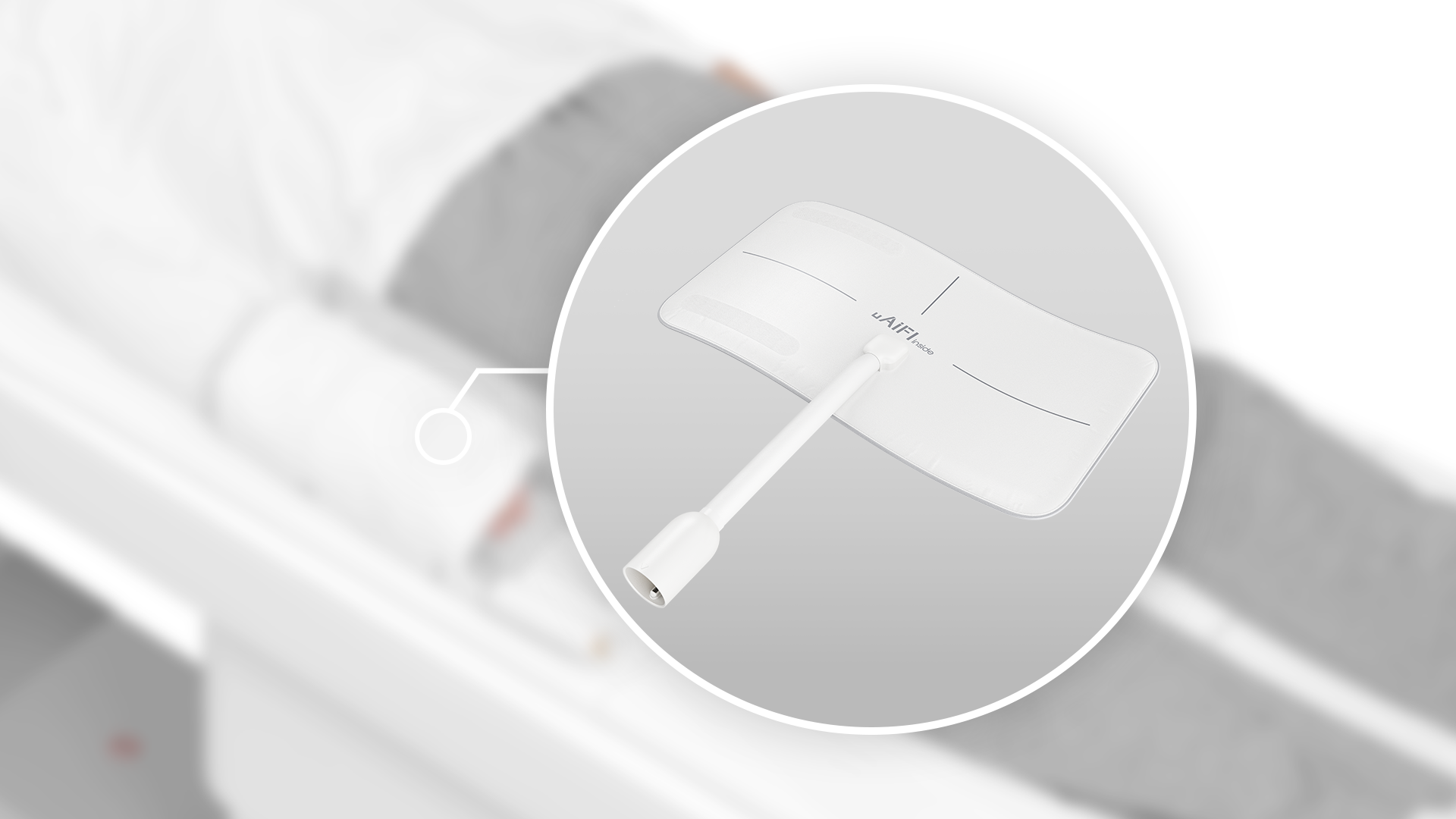

UHD1 SuperFlex Small – 24 (USFS24)

With great progress on decoupling technology, UHD SuperFlex Small – 24 achieves a coil density of 229 elements/m², delivering a significant improvement in image SNR over previous generations.

Shoulder Coil – 24 (SHC24)

Traditional shoulder coils are mostly constructed with rigid components, leading to poor fixation on varied body contours and compromised image quality. Shoulder Coil – 24 on uMR Astra features a wearable design with exceptional adaptability, achieving superior patient comfort and outstanding image quality.

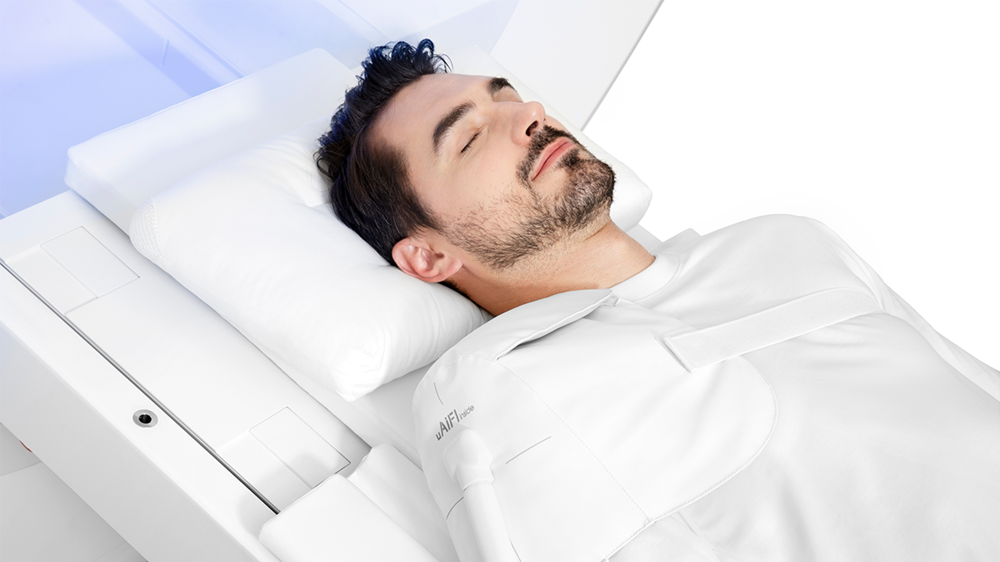

UHD SuperFlex Neck & Chest – 24 (USFN24)

Featuring a unique soft, lightweight shawl-like design, UHD SuperFlex Neck & Chest – 24 ensures exceptional comfort during thoracic and vascular scans. It also enables efficient one-stop head-carotid-aorta imaging for comprehensive vascular screening and evaluation.

Breakthrough of SuperFlex Leading the Image Quality Progress

SFWB48

SFB24

USFL24

USFS24

USFN24

SHC24

WRC24

SFWB48

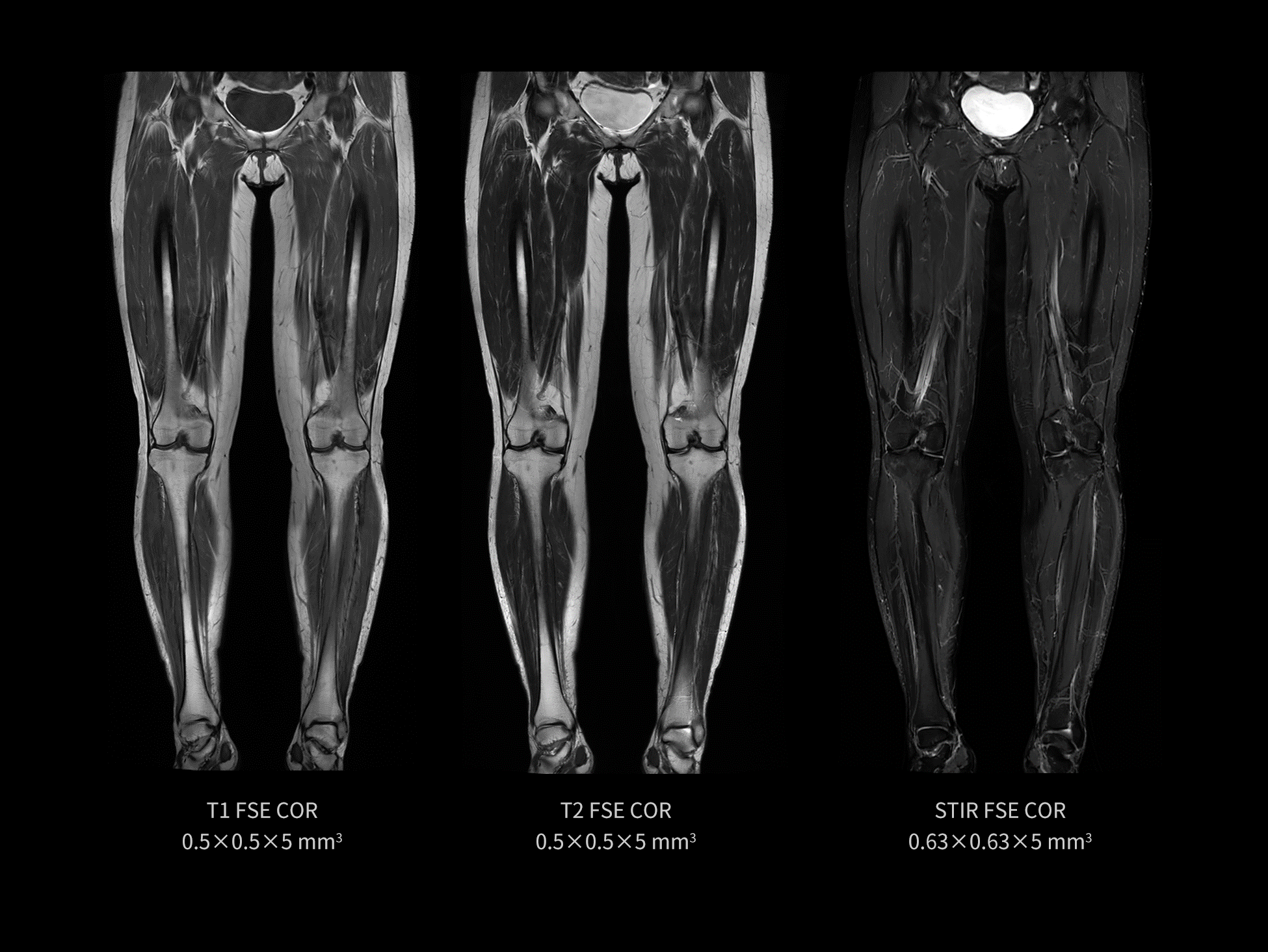

Lower Extremities

SFB24

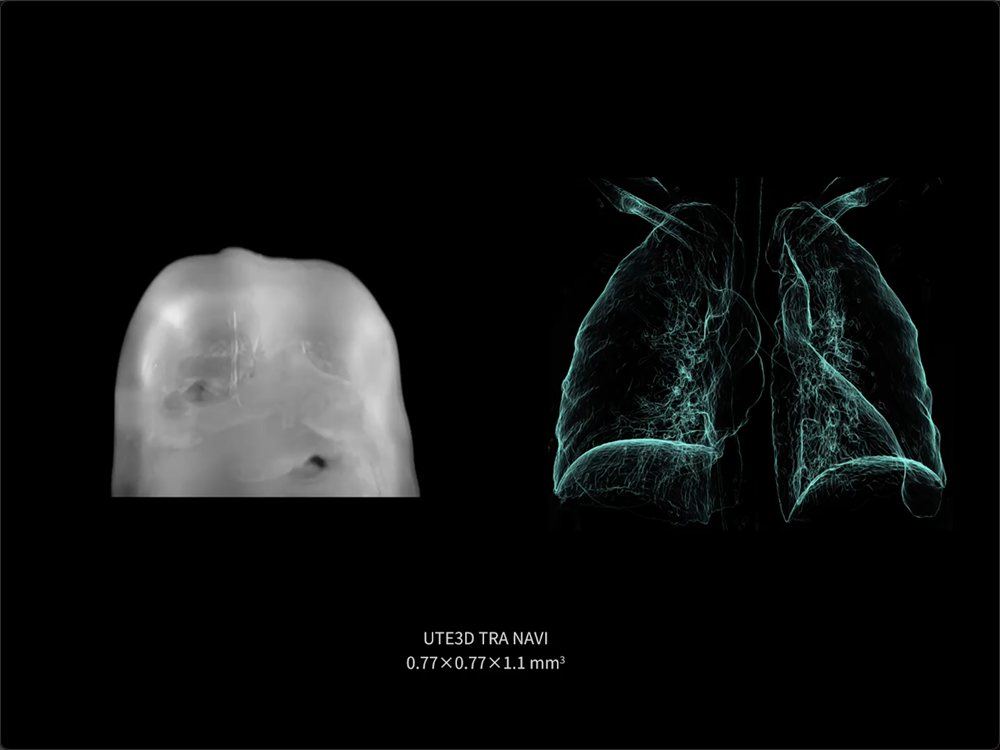

Lungs

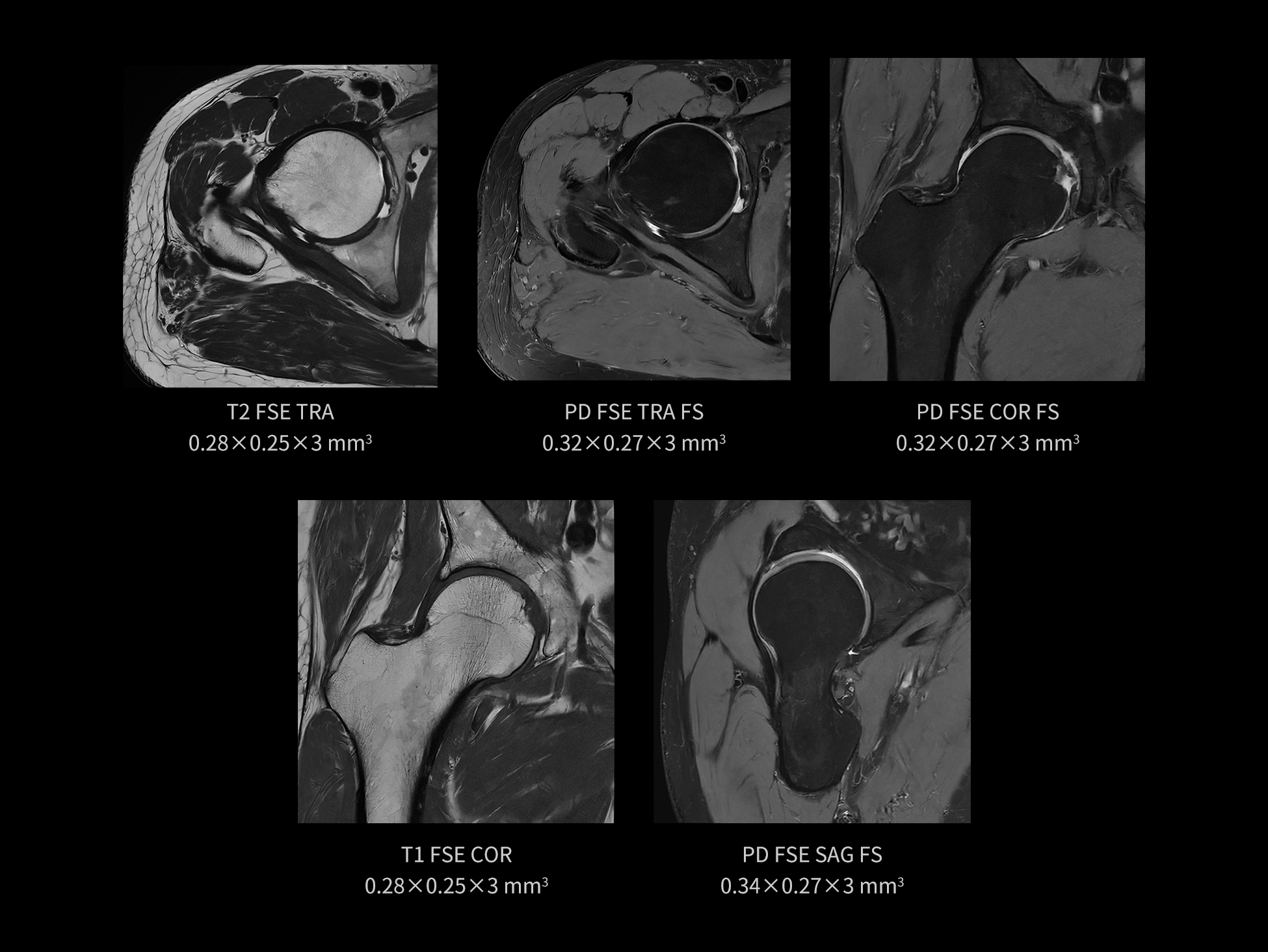

USFL24

Unilateral Hip

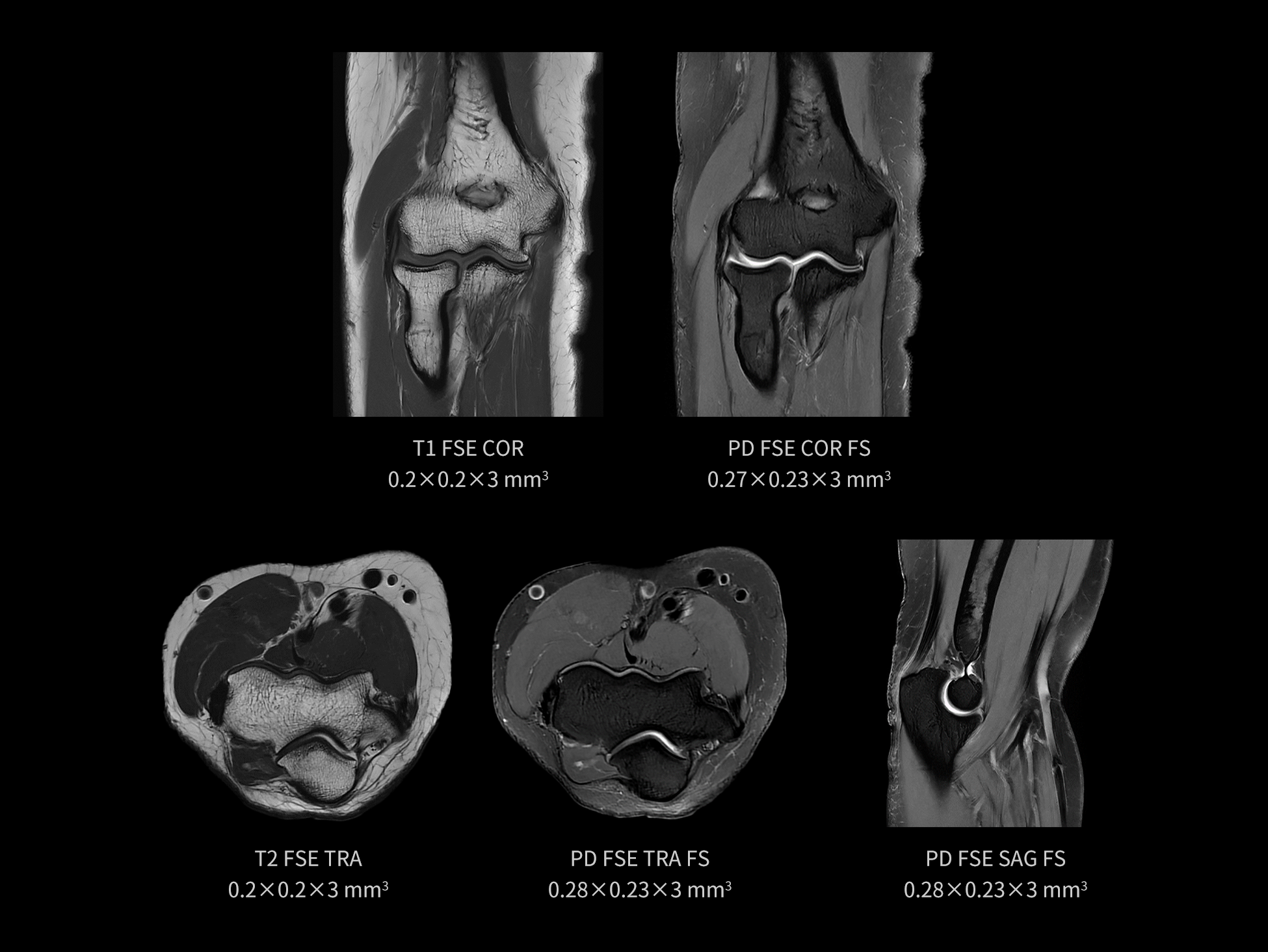

USFS24

Elbow

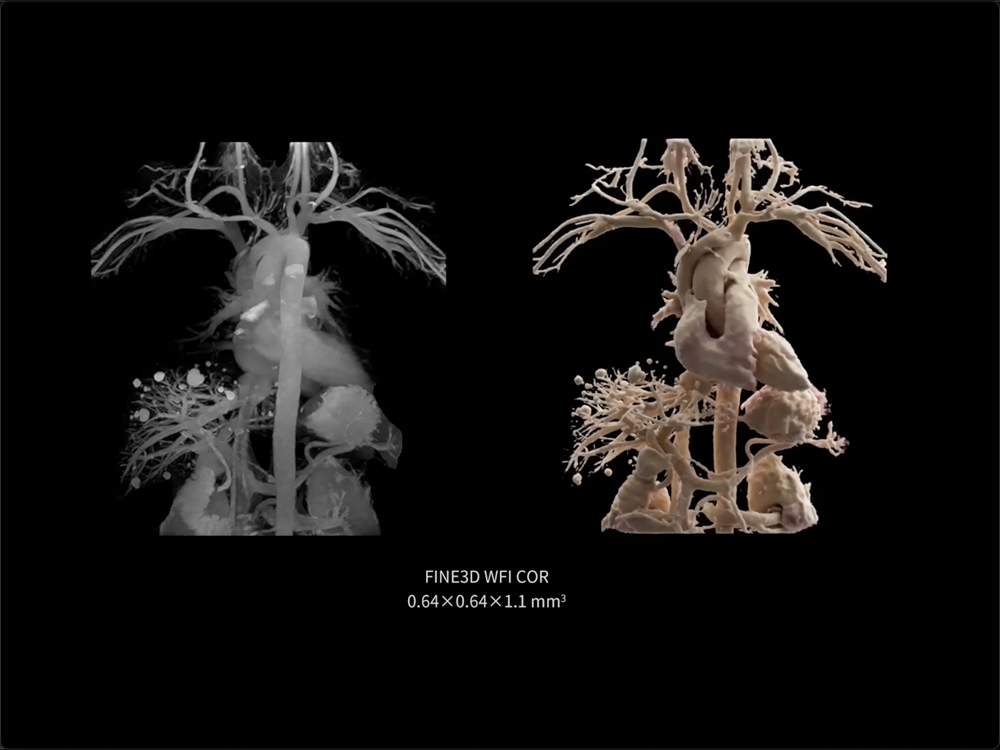

USFN24

Thorax

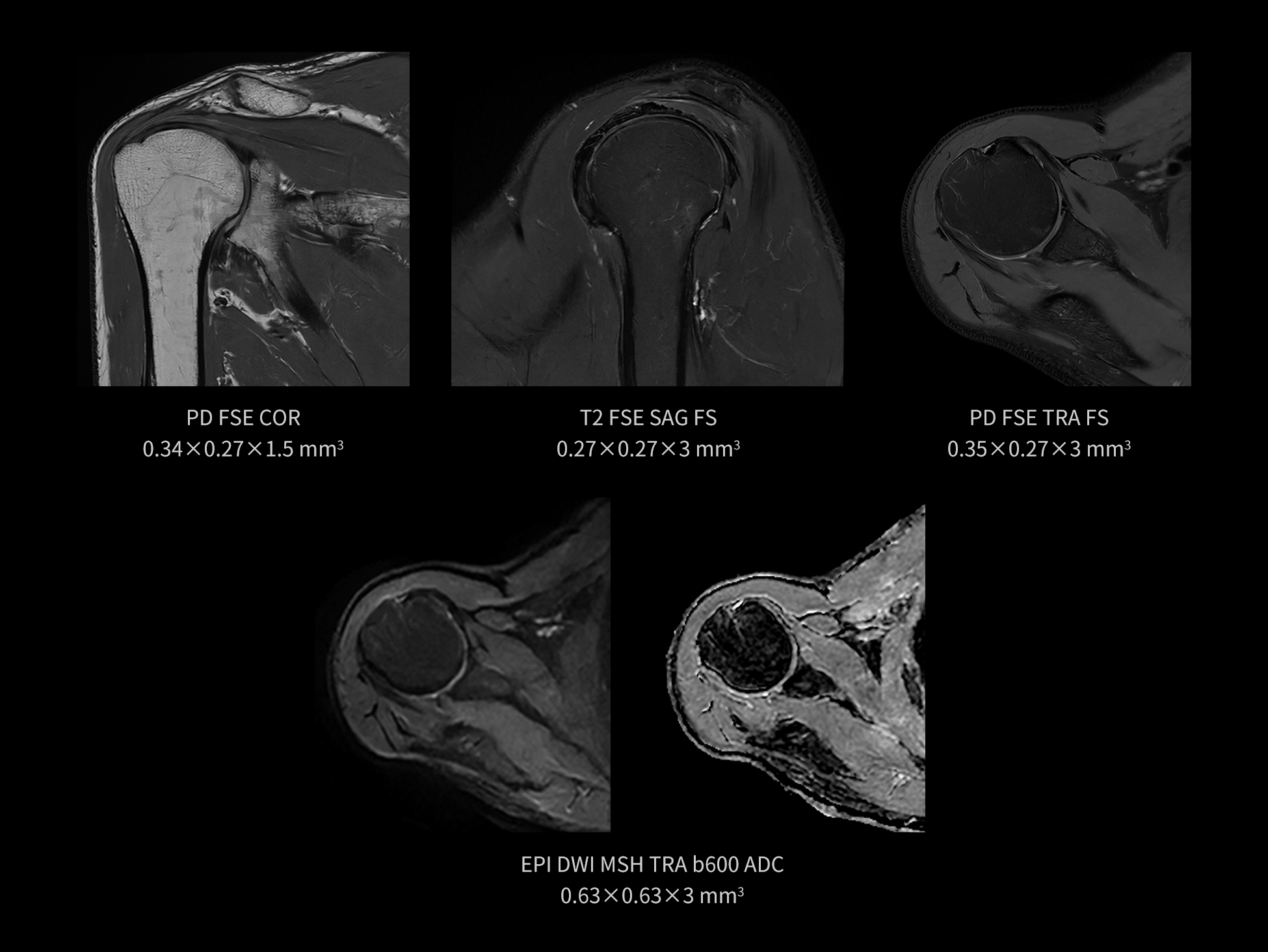

SHC24

Shoulder

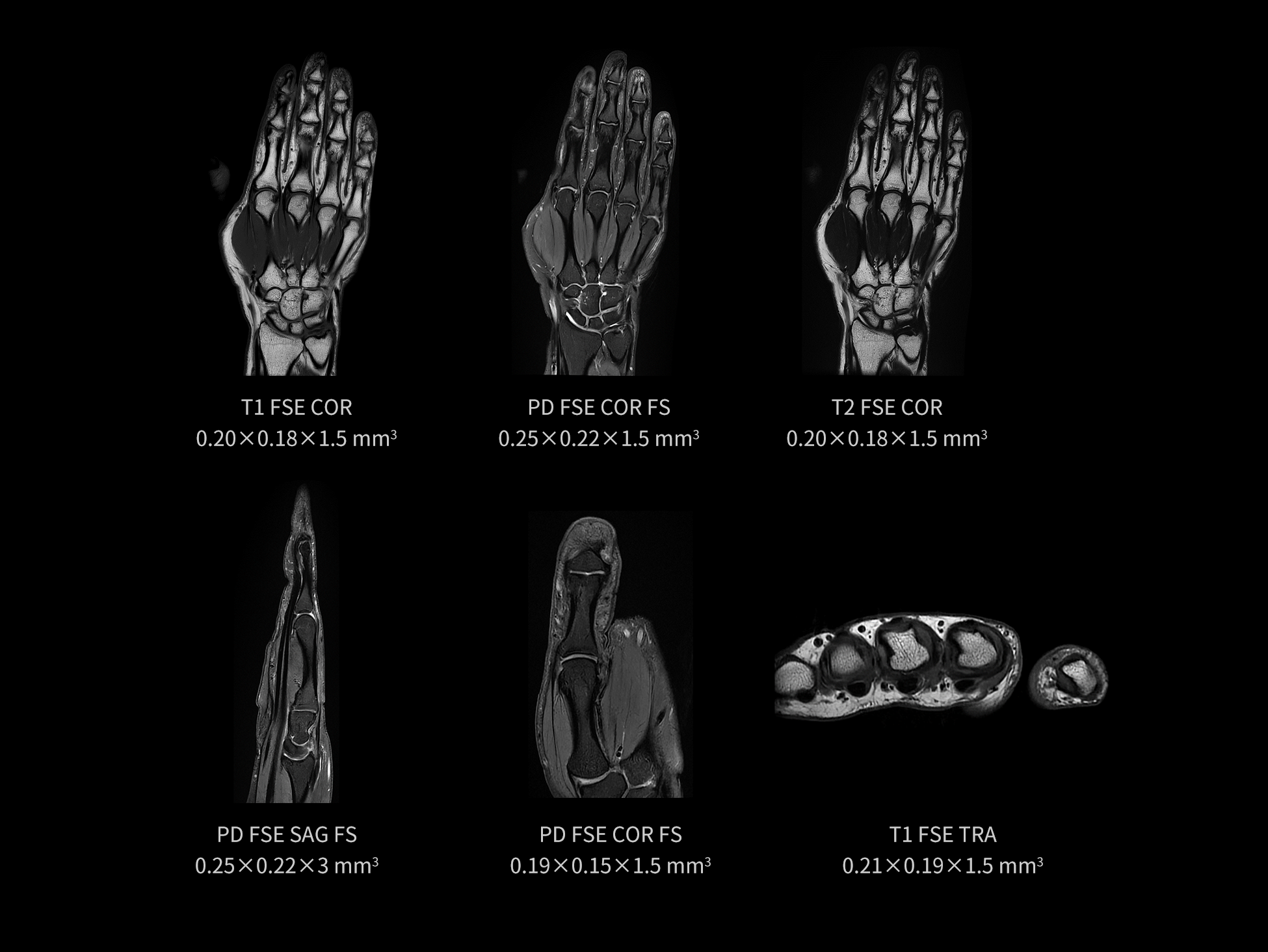

WRC24

Hand

Full-sensory comfort design

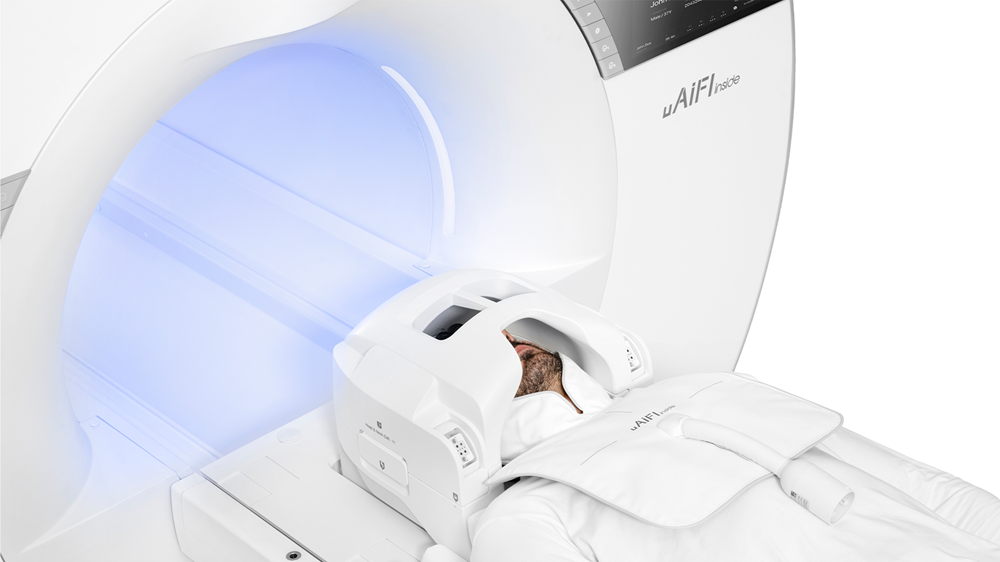

Vision – Astra-filled 70 cm wide bore

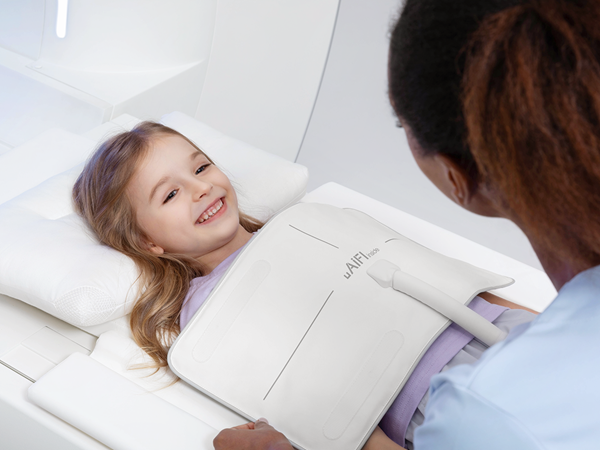

Touch – Next-generation SuperFlex &
4 cm extra-thick cushion

Hearing – Conversation-level sound scanning

Care for Technicians

uAIFI platform has achieved proactive care and self-evolution. The AI workflow empowered by uAIFI on uMR Astra is now available on more completed process and clinical scenarios than ever. With the integration of AI workflow and upgraded coil workflow design, uMR Astra provides a seamless operating experience from start to finish, supporting a far wider range of clinical scenarios, and empowering daily high-throughput scanning work.

Full-Process AI Workflow Tailored for Diverse Clinical Scenarios
uMR Astra marks a new era of self-revolution for the uAIFI platform. Featuring an end-to-end AI workflow, uMR Astra empowers technicians across diverse clinical scenarios, streamlining operations, reducing scan time, and addressing a full spectrum of clinical and technical requirements.

uVision is a 3D camera that recognizes patient anatomy. It enables a one-click or even 0-click table-in workflow on 17 main body regions and diverse specialized scenarios, while traditionally the process requires typically more than 6 keystrokes.

With a unique dual-source phased-array millimeter-wave radar replacing the binding VSM, EasySense is able to provide stable and precise gating signal via a contactless design, streamlining patient preparation while enhancing patient comfort.

Although uncommon, specialized clinical scenarios should not be overlooked. EasyScan now covers 40 distinct body parts, supporting around 98% clinical scenarios. It transforms complex positioning protocols into a simple one-click operation and a 15-second scan.

Technicians typically perform around 100 clicks to crop a basic vascular MIP image following an MRA scan. With the unique EasyCrop AI feature, uMR Astra has simplified this process to a button-free automated results with 0 time delay.
uVision: AI-Assisted Patient Positioning

uVision is a 3D camera that recognizes patient anatomy. It enables a one-click or even 0-click table-in workflow on 17 main body regions and diverse specialized scenarios, while traditionally the process requires typically more than 6 keystrokes.

EasySense: Contactless Physiological Signal Monitoring

With a unique dual-source phased-array millimeter-wave radar replacing the binding VSM, EasySense is able to provide stable and precise gating signal via a contactless design, streamlining patient preparation while enhancing patient comfort.

EasyScan: AI-Based Localization

Although uncommon, specialized clinical scenarios should not be overlooked. EasyScan now covers 40 distinct body parts, supporting around 98% clinical scenarios. It transforms complex positioning protocols into a simple one-click operation and a 15-second scan.

EasyCrop: AI-Assisted Vessel Cropping

Technicians typically perform around 100 clicks to crop a basic vascular MIP image following an MRA scan. With the unique EasyCrop AI feature, uMR Astra has simplified this process to a button-free automated results with 0 time delay.

Enhanced Hardware Design for Superior Usability
The next-generation RF architecture of uMR Astra further enhances technologist efficiency through its lightweight and ergonomic design. The integration of hardware improvement and AI revolution is the key to care for technicians.

Powered by breakthroughs in decoupling technology and strategic hardware design, the SuperFlex coils on uMR Astra significantly reduce their coil weight, delivering a lightweight, comfortable scanning experience for both patients and technicians.

While traps on conventional coil cables are essential for maintaining B₀ homogeneity during scanning, their chain‑like design compromises patient comfort and increases coil damage risk. The next‑generation RF architecture of uMR Astra features full-flex cables with integrated cable management, effectively addressing these issues.

The coils on uMR Astra feature a low-insertion-force design. Technicians can easily verify connection status via the integrated LED indicator. This thoughtful engineering ensures a compact port while enabling high-density data transmission.
Lightweight Coil Design

Powered by breakthroughs in decoupling technology and strategic hardware design, the SuperFlex coils on uMR Astra significantly reduce their coil weight, delivering a lightweight, comfortable scanning experience for both patients and technicians.

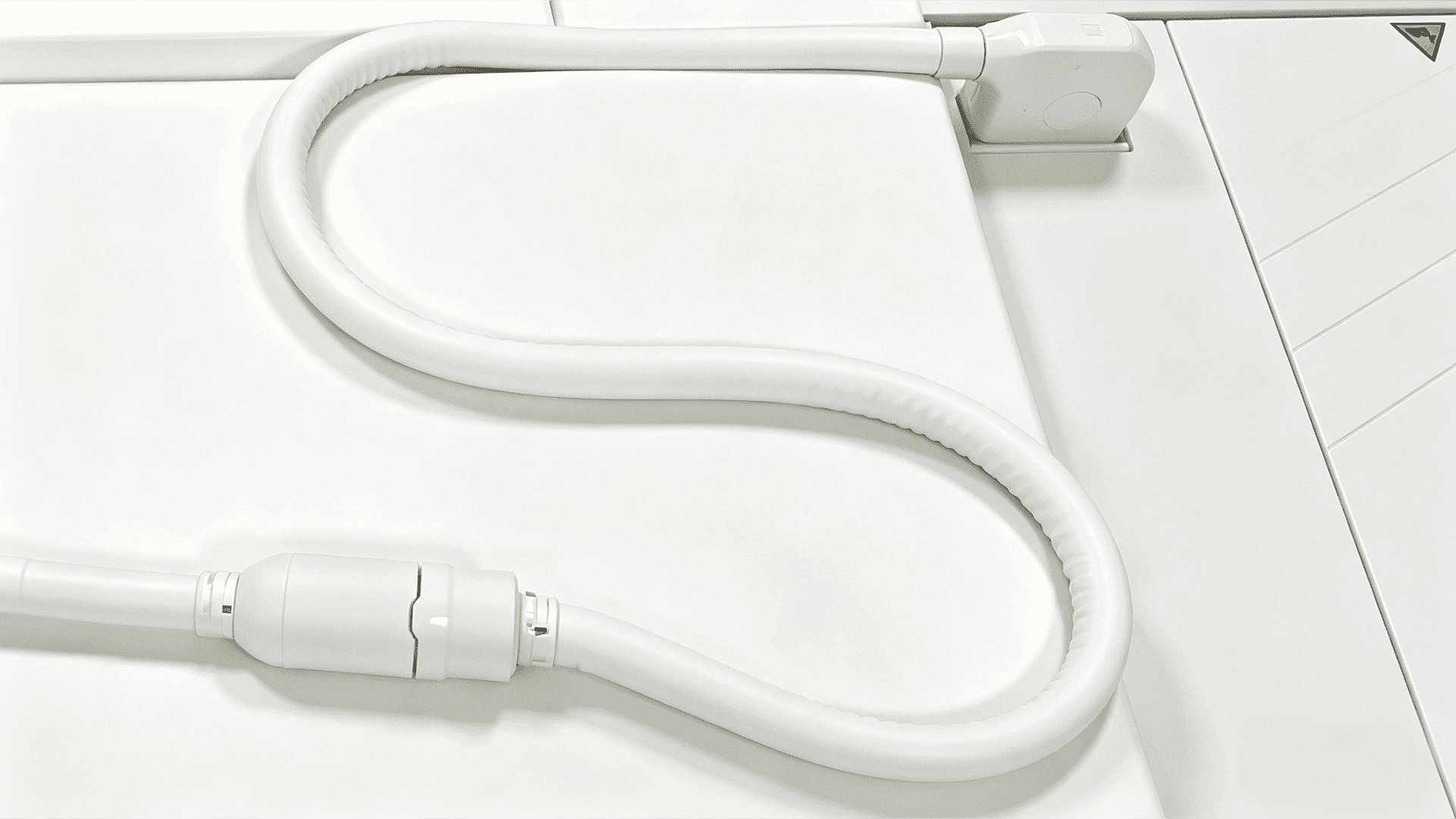

Full-Flex Cables Design

While traps on conventional coil cables are essential for maintaining B₀ homogeneity during scanning, their chain‑like design compromises patient comfort and increases coil damage risk. The next‑generation RF architecture of uMR Astra features full-flex cables with integrated cable management, effectively addressing these issues.

Convenient Plug-in Design

The coils on uMR Astra feature a low-insertion-force design. Technicians can easily verify connection status via the integrated LED indicator. This thoughtful engineering ensures a compact port while enabling high-density data transmission.

Care for Doctors

Artifacts have long posed a clinical challenge for doctors. The doctor-centric care delivered by uMR Astra features a full-stack artifact solution, enabling artifact monitoring and correction at every step of the scanning process. This unique quality assurance technology completes the final piece of the puzzle for stable and efficient MR scanning. In addition, the high-channel system and coils support high-channel one-stop imaging, equipping doctors with a systematic approach to disease screening and evaluation.

Full-Stack Artifact Solution Clearing Doctor's View
Artifacts are a major barrier to doctor's accurate diagnosis. Traditional ways of artifact mitigation force compromised between image quality and scan time. Now, uMR Astra delivers a systematic Full-Stack Artifact Solution that proactively controls and corrects artifacts across all of the scanning steps, restoring doctors a clear diagnostic view.

MoCap utilizes a motion monitoring module embedded into data acquisition intervals to visualize the patient's motion in real time. This technology facilitates effective communication and improves the overall efficiency of MR examinations.

As the guardian of image quality and the criterion of artifact correction, ImageGuard assesses motion artifacts and issues real-time pop-up alerts. The threshold of artifact warning is fully customizable by users.

Traditional motion artifact correction technologies compromise image quality and scan time. As an innovative AI technology, AiCo corrects motion artifacts during reconstruction, with the capability to refine even subtle micro-motion-induced blurring.

Though occurring occasionally, spark artifacts can severely impact diagnosis. SparkCo addresses this special scenario and can detect and correct spark artifacts in real time.
MoCap Monitoring Motion During Scan

MoCap utilizes a motion monitoring module embedded into data acquisition intervals to visualize the patient's motion in real time. This technology facilitates effective communication and improves the overall efficiency of MR examinations.

ImageGuard for Quality Control After Scan

As the guardian of image quality and the criterion of artifact correction, ImageGuard assesses motion artifacts and issues real-time pop-up alerts. The threshold of artifact warning is fully customizable by users.

AiCo Eliminating Motion Artifacts During Reconstruction

Traditional motion artifact correction technologies compromise image quality and scan time. As an innovative AI technology, AiCo corrects motion artifacts during reconstruction, with the capability to refine even subtle micro-motion-induced blurring.

SparkCo Protecting Images from 「Spark」 Artifacts2

Though occurring occasionally, spark artifacts can severely impact diagnosis. SparkCo addresses this special scenario and can detect and correct spark artifacts in real time.

One-Stop Clinical Solution with High-Channel Coil Combinations

Head-Carotid-Aorta

Thorax-Abdomen-Pelvis

Whole-Body

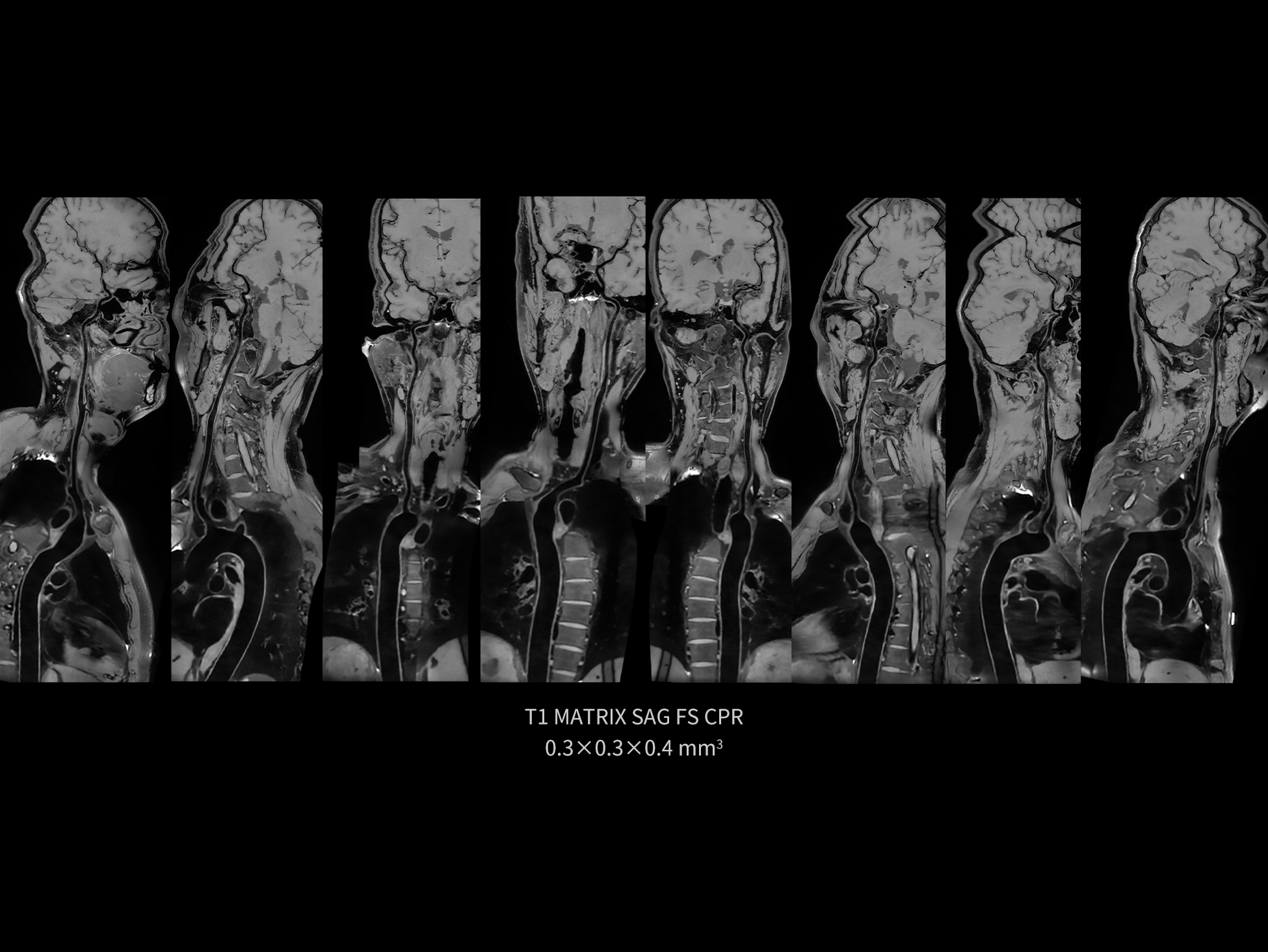

Head-Carotid-Aorta

One-stop head-carotid-aorta vessel wall imaging with Head & Neck Coil – 48, UHD SuperFlex Neck & Chest – 24 and Spine Coil – 48.

Thorax-Abdomen-Pelvis

One-stop thorax-abdomen-pelvis imaging with SuperFlex Wide Body – 48 and Spine Coil – 48.

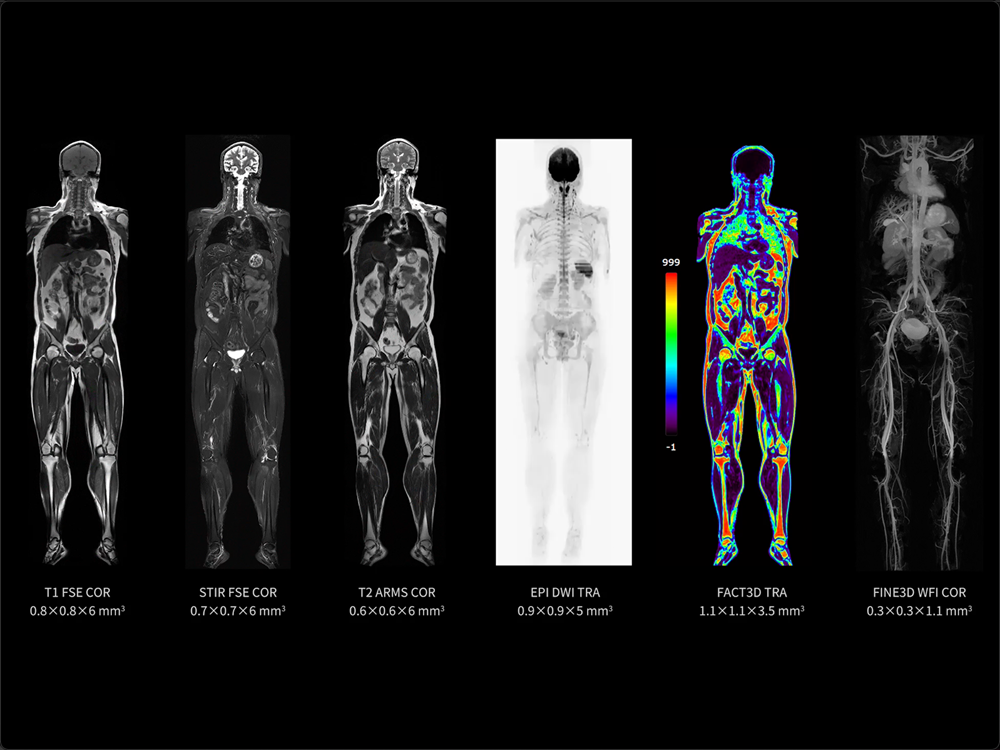

Whole-Body

One-Stop whole-body imaging with Head & Neck Coil – 48, SuperFlex Wide Body – 48, SuperFlex Body – 24 and Spine Coil – 48.

Technical Details3



Magnet System



Field Strength

3 Tesla

Bore size

70 cm

Liquid helium consumption*

*Note: under normal operating conditions

Zero

Gradient Performance



Max. uniaxial gradient strength (X/Y/Z axis can achieve simultaneously)

50 mT/m

Max. uniaxial slew rate (X/Y/Z axis can achieve simultaneously)

200 T/m/s

Max. FOV

55 cm (X and Y directions)

RF System



Number of transmit channels

2

Number of independent receiver channels that can be used simultaneously in one single scan in one FOV

Up to 144

Installation Information



Scanning room area (minimum)

15.2 m²

Control room area (minimum)

3.8 m²

DISCLAIMERS

1. UHD, ultra-high density.
2. Spark artifact, also known as spike artifact or herringbone artifact.
3. Data on file.
Certain features are optional. Configurations shall be subject to local market.
