Every Photon Counts

uMC 560i adopts high performance monocrystalline silicon flat-panel detector to achieve high-resolution fluoroscopic imaging. Large C-arm opening, dual touch screen design, and a multitude of utility functionalities provide surgeons in orthopedics, gastroenterology and urology with an upgraded operation experience.

RealSense Detector

Two Million Pixels Image Chain

Extended 85cm Opening

uReal Image Chain

RealSense Detector

The chip grade active matrix array dramatically increases signal-to-noise ratio (SNR), and the 152μm pixel size provide lower dose, high definition images.

uRealView System

Two million pixels imaging chain brings twice the amount of image information, producing distortion-free images with fine anatomical details.

Micro Pixel Structure

3.3lp/mm spatial resolution enables multi-level zoom visualization, revealing fine anatomical details.

uFree Workflow

uFree Protocol Selection

Automatically adjust protocol parameters according to the clinical application, freely select from statistic and dynamic imaging modes, display high resolution clinical images.

uFree Dose Management

Combines powerful object recognition, metal artifact reduction, and motion detection uFree Dose Management will automatically detects patient positioning, adjusts exposure parameters and intelligently reduces metal and motion artifacts to optimized visual fidelity.

Ingenious Design

Extended 85cm Opening

Dual Synchronized Touchable Control Panel

Color Coded Handle

Omni Balance Design

Dual Laser Positioning Lamps

Wireless Footswitch*

*Optional

Clinical Application

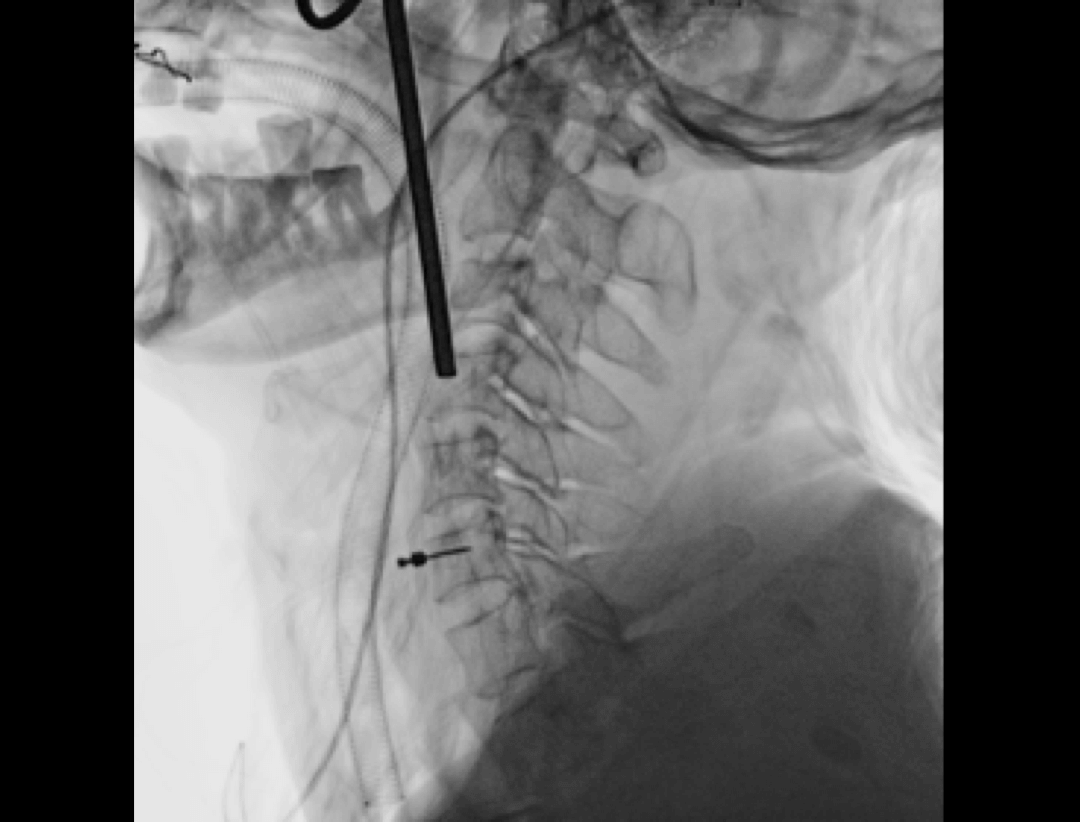

Anterior Cervical Discectomy

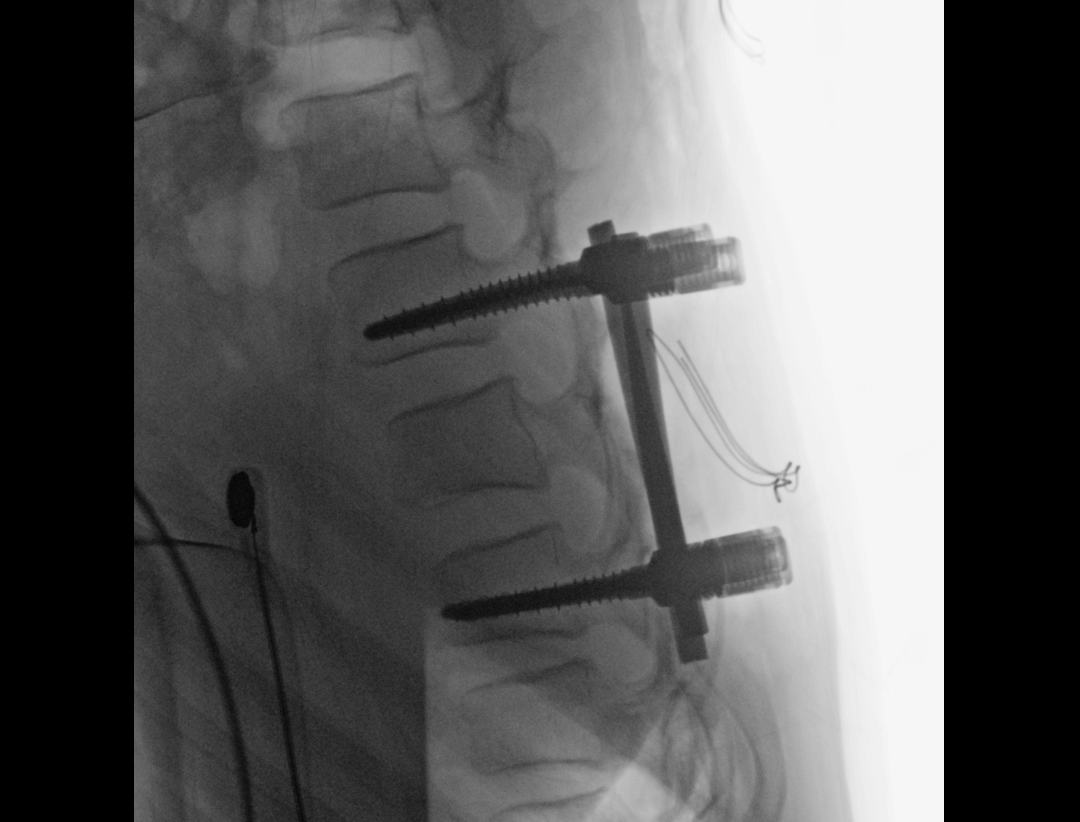

Pedicle Screw Fixation

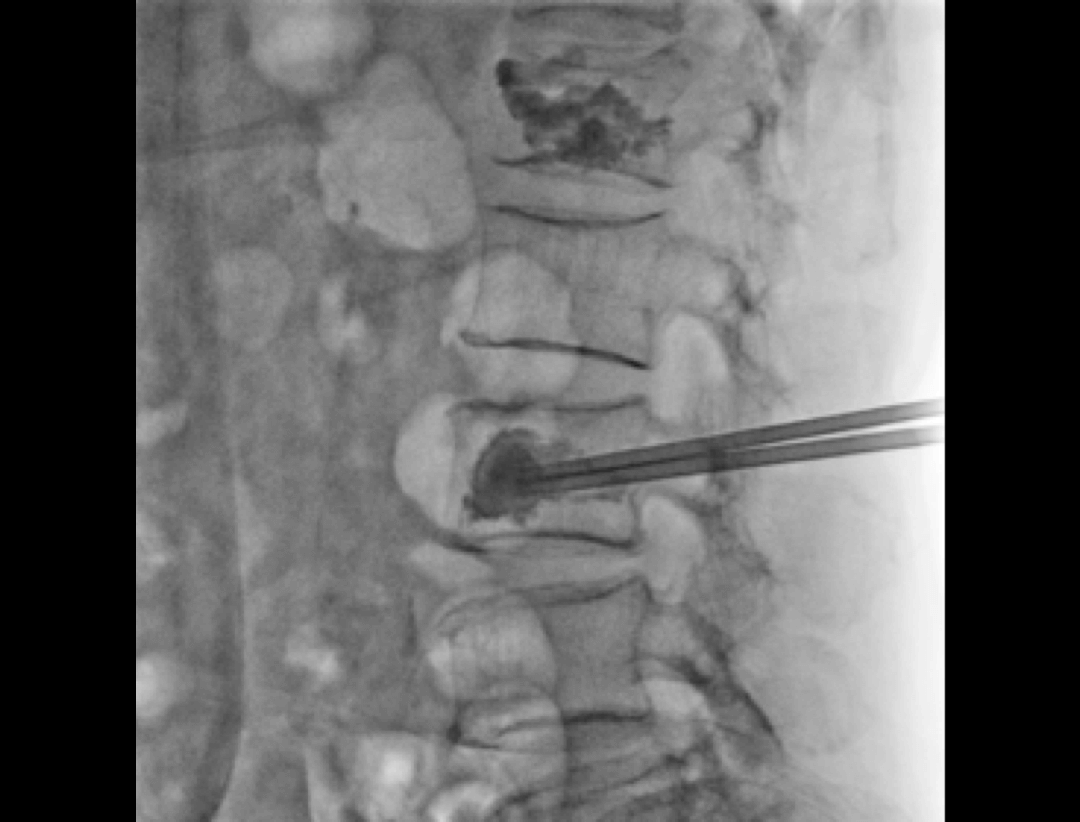

Percutaneous Kyphoplasty

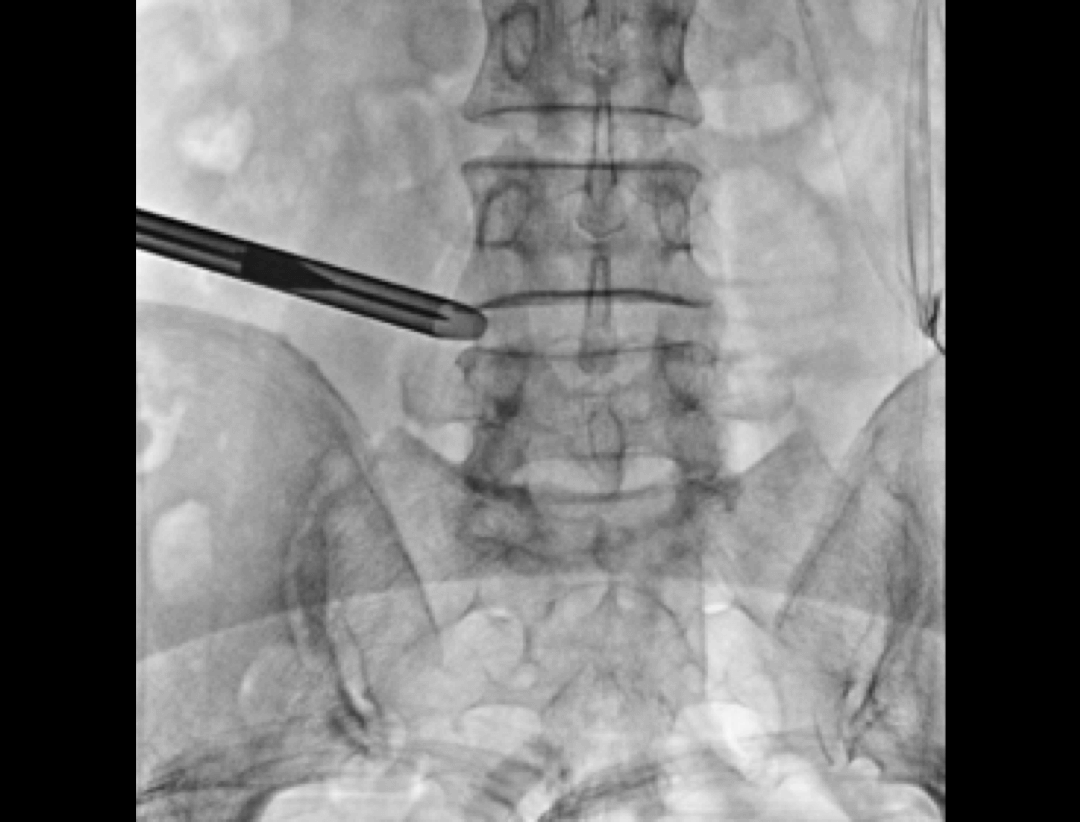

Percutaneous Transforaminal Endoscopic Discectomy
Technical Specification
  • Gantry
  • Image chain

Gantry


C-Arm Horizontal Movement

200mm

C-Arm Vertical Movement

420mm

Orbital Rotation

-50°~90°

Angulation

±225°

Swiveling

±10°

C-arm Depth

690mm

Free Space

850mm

Image chain



Power output

3.5kw

Range of kV

40-110kV

Range of mAs

0.01-30mAs

Detector technology

CMOS (complementary metal-oxide semiconductor)

Field of View

20 x 20 cm
