Precision. Accelerated.

As clinical examinations become more complex, the demands on CT scanner's performance increase, requiring improvements not only in patient care but also in workflow efficiency. This drives the need to integrate AI into the CT scanners. uCT 780, equipped with advanced AI technology, enhances image quality while reducing dose, simplifies the examination process for technicians, and offers versatility for radiologists handling a broad spectrum of clinical scenarios.

Evolve with Care

uCT 780 equipped with the DELTA deep learning reconstruction algorithm, excels in fine image details at low radiation dose, effectively bridging the gap between radiation dose reduction and patient-centric care.

DELTA

Deep learning trained algorithm (DELTA) leverages an extensive training dataset and a sophisticated 3D neural network to deliver images that are both more defined and detailed at lower radiation dose, setting a new standard in imaging excellence.

Up to 80%* radiation dose reduction at the same low contrast detectability (LCD).

Up to 98%* image noise reduction at the same dose.

Up to 155%* LCD improvement at the same dose.

*DELTA images compared with FBP based on phantom tests. Data on file.

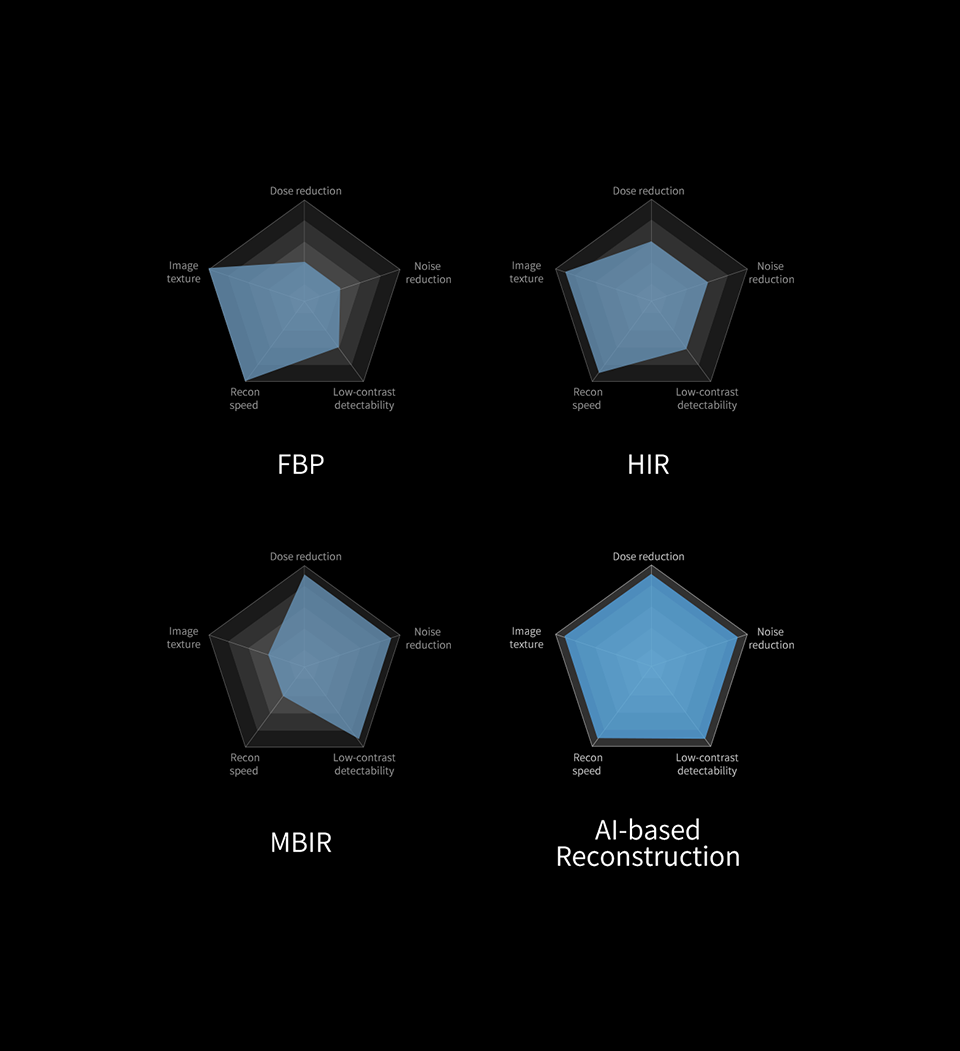

Conventional 2D neural networks can only process one single image at a time, which may affect the image continuity and lead to missing structural details around lesions. In contrast, 3D neural networks support volumetric data input, maintaining data continuity while improving reconstruction speed, accuracy, and reliability.

Leveraging a million-level data training set across diverse clinical scenarios, DELTA delivers whole-body low dose imaging with fine anatomical details.

During the training of neural networks, data propagation and correction are crucial factors for algorithm accuracy. Traditional network structures involve single-layer data propagation, whereas the specialized network design enables dense connections and efficient data propagation between different layers of network, preserving image details even at low radiation dose.

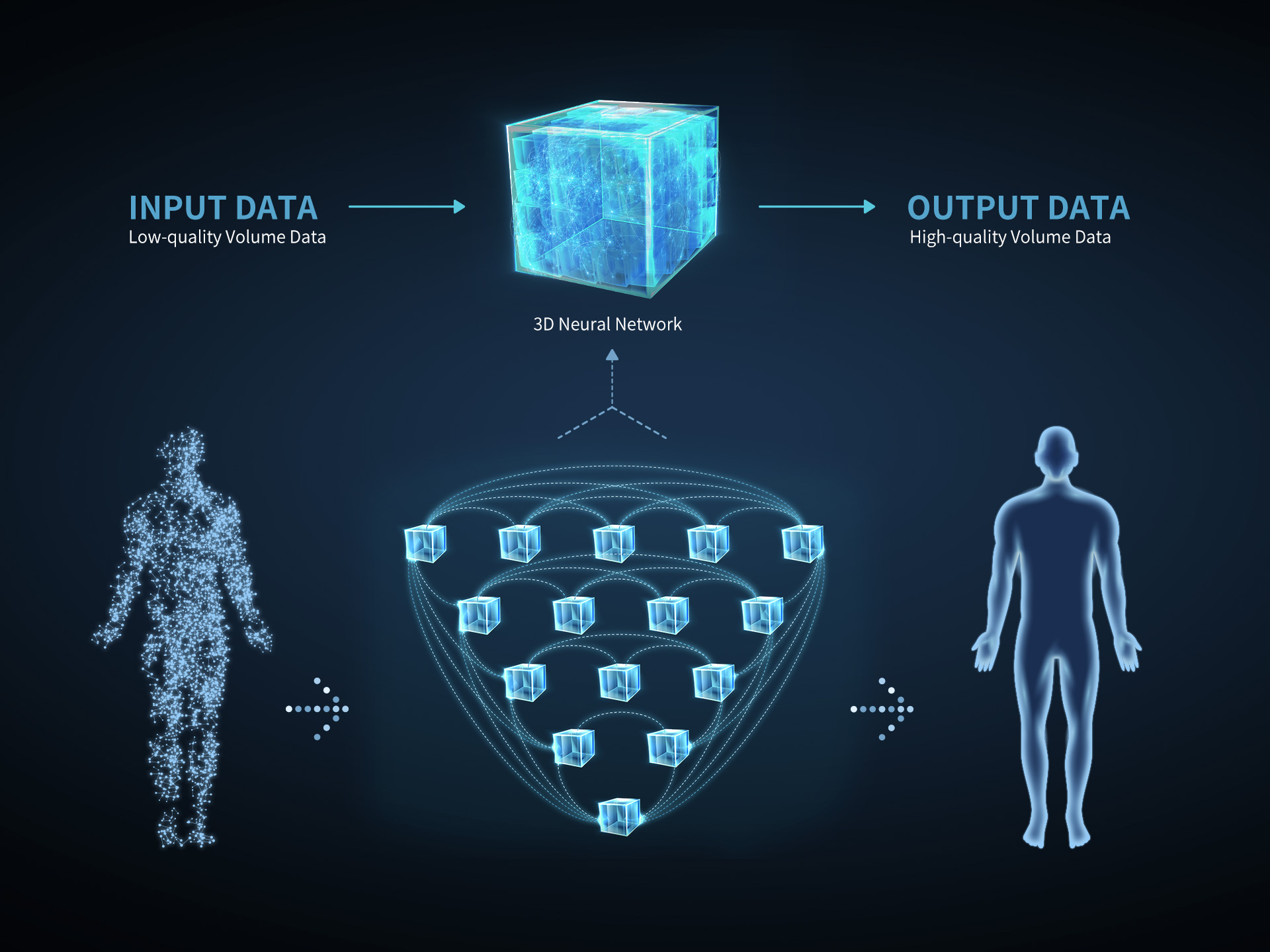

Build up a 3D Neural Network Specialized for CT Imaging

Conventional 2D neural networks can only process one single image at a time, which may affect the image continuity and lead to missing structural details around lesions. In contrast, 3D neural networks support volumetric data input, maintaining data continuity while improving reconstruction speed, accuracy, and reliability.

Million-level Dataset

Leveraging a million-level data training set across diverse clinical scenarios, DELTA delivers whole-body low dose imaging with fine anatomical details.

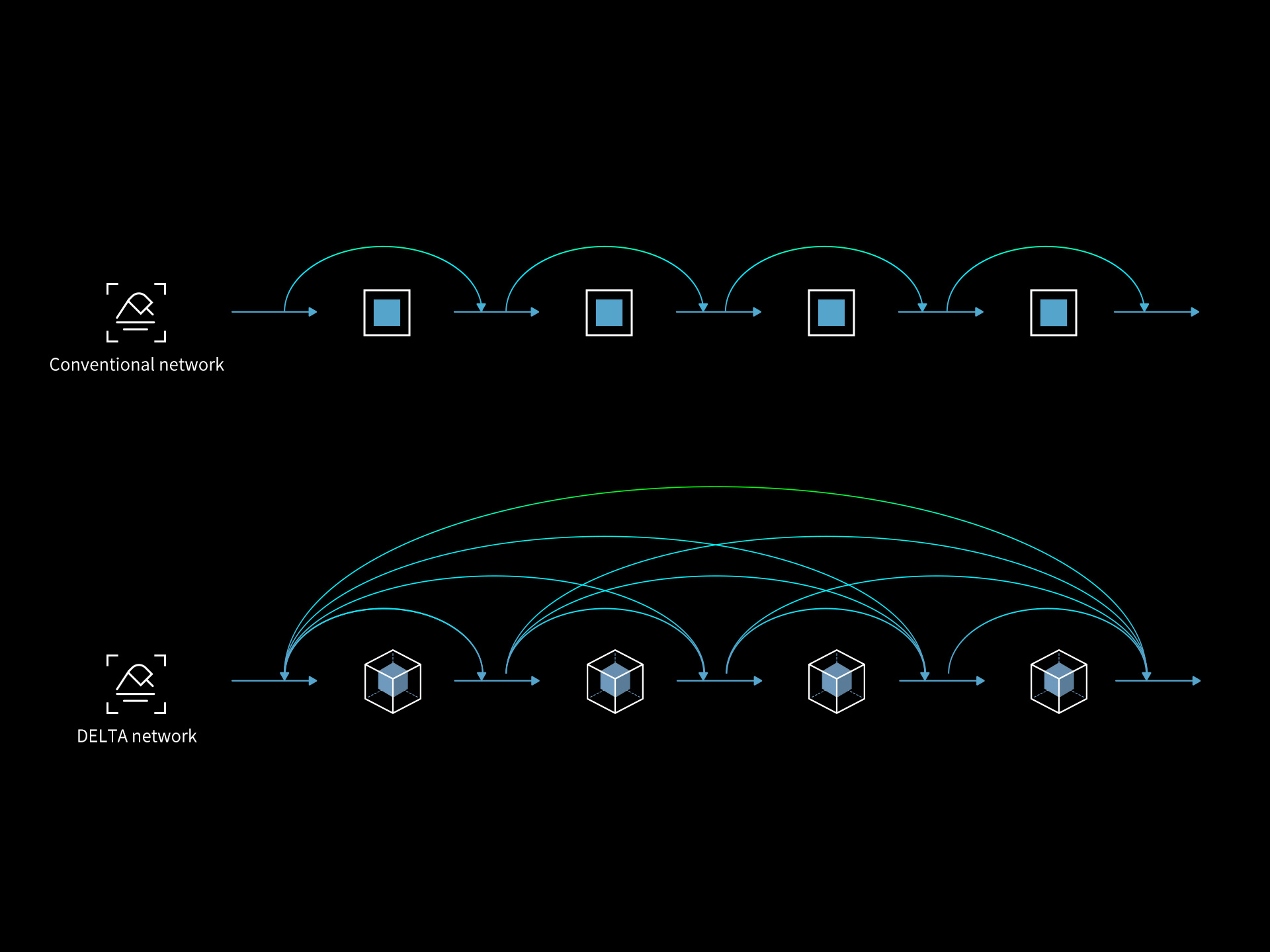

Specialized Network Design

During the training of neural networks, data propagation and correction are crucial factors for algorithm accuracy. Traditional network structures involve single-layer data propagation, whereas the specialized network design enables dense connections and efficient data propagation between different layers of network, preserving image details even at low radiation dose.

See More with Less

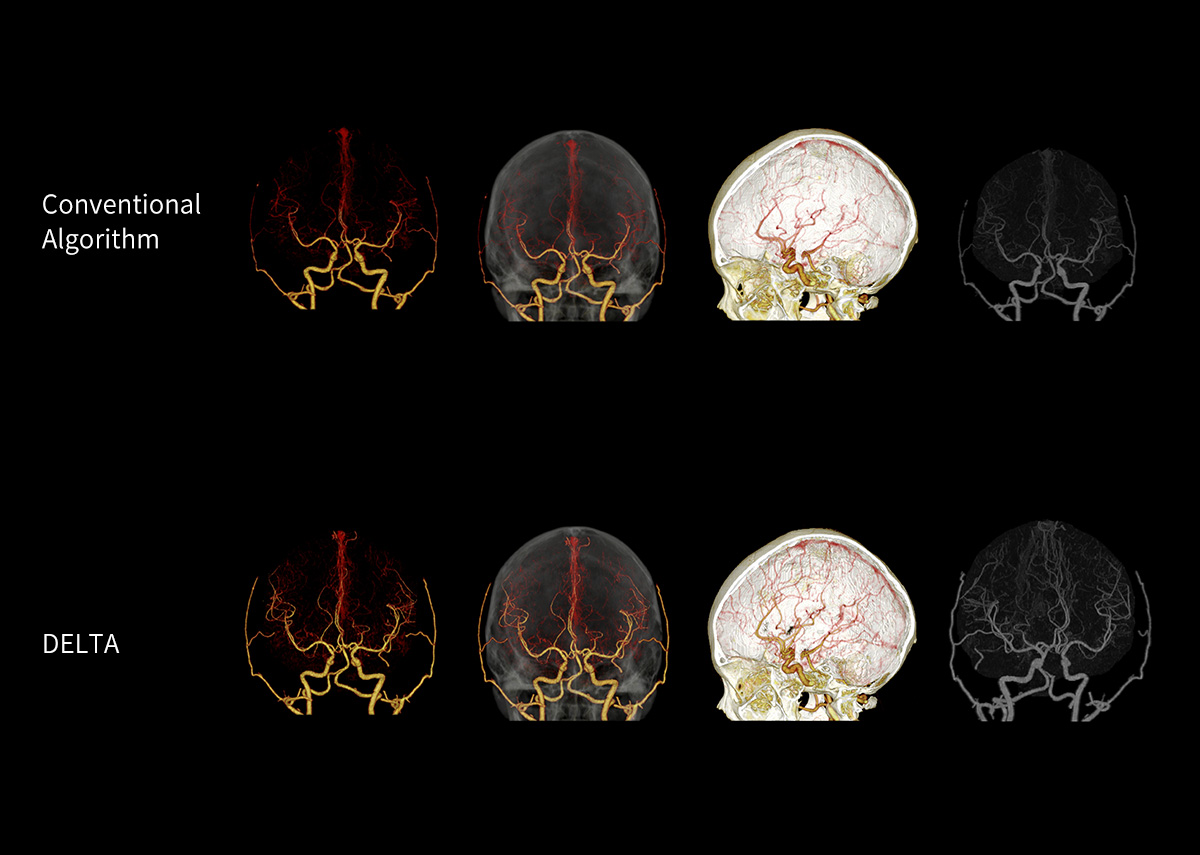

Under low-dose scanning conditions, DELTA can display richer vascular details, with longer vascular extraction and sharper vessel edges.

  • Head CTA
  • 0.50 sec/rotation
    kV: 100
    mAs: 198
    CTDIvol: 9.814 mGy
    Eff. Dose: 0.43 mSv
  • Reconstruction
  • Matrix: 512 × 512
    Slice: 1.0*0.6mm
    DELTA: 3
  • Contrast
  • 350 mgl/ml
    40 ml
    4.0 ml/s
See More with Less

Compared to the conventional algorithm, DELTA significantly reduces noise under low-dose scanning conditions, showing clearer lung texture and fissures.

  • Chest Helical
  • 0.50 sec/rotation
    kV: 100
    mAs: 10
    CTDIvol: 0.478 mGy
    Eff. Dose: 0.26 mSv
  • Reconstruction
  • Matrix: 512 × 512
    Slice: 1.0*0.8mm
    DELTA: 3
  • Contrast
  • —
See More with Less

Compared to the conventional algorithm, DELTA achieves better results in extracting both distal pulmonary arteries and veins.

  • Aort CTA & Pulmonary CTA
  • 0.50 sec/rotation
    kV: 120
    mAs: 208
    CTDIvol: 17.349 mGy
    Eff. Dose: 8.72 mSv
  • Reconstruction
  • Matrix: 512 × 512
    Slice: 1.0*0.8mm
    DELTA: 3
  • Contrast
  • 350 mgl/ml
    55 ml
    4.5 ml/s
See More with Less

After reconstruction through DELTA, noise is significantly reduced, low-contrast resolution is enhanced, and vascular clarity is improved.

  • Abdomen CE
  • 0.50 sec/rotation
    kV: 120
    mAs: 39
    CTDIvol: 3.263 mGy
    Eff. Dose: 2.31 mSv
  • Reconstruction
  • Matrix: 512x512
    Slice: 1.0x0.8 mm
    DELTA: 3
  • Contrast
  • 350 mg/ml
    60 ml
    4.5 ml/s
See More with Less

Under low-dose scanning conditions, DELTA can display richer vascular details, with longer vascular extraction and sharper vessel edges.

  • Head CTA
  • 0.50 sec/rotation
    kV: 100
    mAs: 198
    CTDIvol: 9.814 mGy
    Eff. Dose: 0.43 mSv
  • Reconstruction
  • Matrix: 512 × 512
    Slice: 1.0*0.6mm
    DELTA: 3
  • Contrast
  • 350 mgl/ml
    40 ml
    4.0 ml/s
See More with Less

Compared to the conventional algorithm, DELTA significantly reduces noise under low-dose scanning conditions, showing clearer lung texture and fissures.

  • Chest Helical
  • 0.50 sec/rotation
    kV: 100
    mAs: 10
    CTDIvol: 0.478 mGy
    Eff. Dose: 0.26 mSv
  • Reconstruction
  • Matrix: 512 × 512
    Slice: 1.0*0.8mm
    DELTA: 3
  • Contrast
  • —
See More with Less

Compared to the conventional algorithm, DELTA achieves better results in extracting both distal pulmonary arteries and veins.

  • Aort CTA & Pulmonary CTA
  • 0.50 sec/rotation
    kV: 120
    mAs: 208
    CTDIvol: 17.349 mGy
    Eff. Dose: 8.72 mSv
  • Reconstruction
  • Matrix: 512 × 512
    Slice: 1.0*0.8mm
    DELTA: 3
  • Contrast
  • 350 mgl/ml
    55 ml
    4.5 ml/s
See More with Less

After reconstruction through DELTA, noise is significantly reduced, low-contrast resolution is enhanced, and vascular clarity is improved.

  • Abdomen CE
  • 0.50 sec/rotation
    kV: 120
    mAs: 39
    CTDIvol: 3.263 mGy
    Eff. Dose: 2.31 mSv
  • Reconstruction
  • Matrix: 512x512
    Slice: 1.0x0.8 mm
    DELTA: 3
  • Contrast
  • 350 mg/ml
    60 ml
    4.5 ml/s

Evolve with Ease

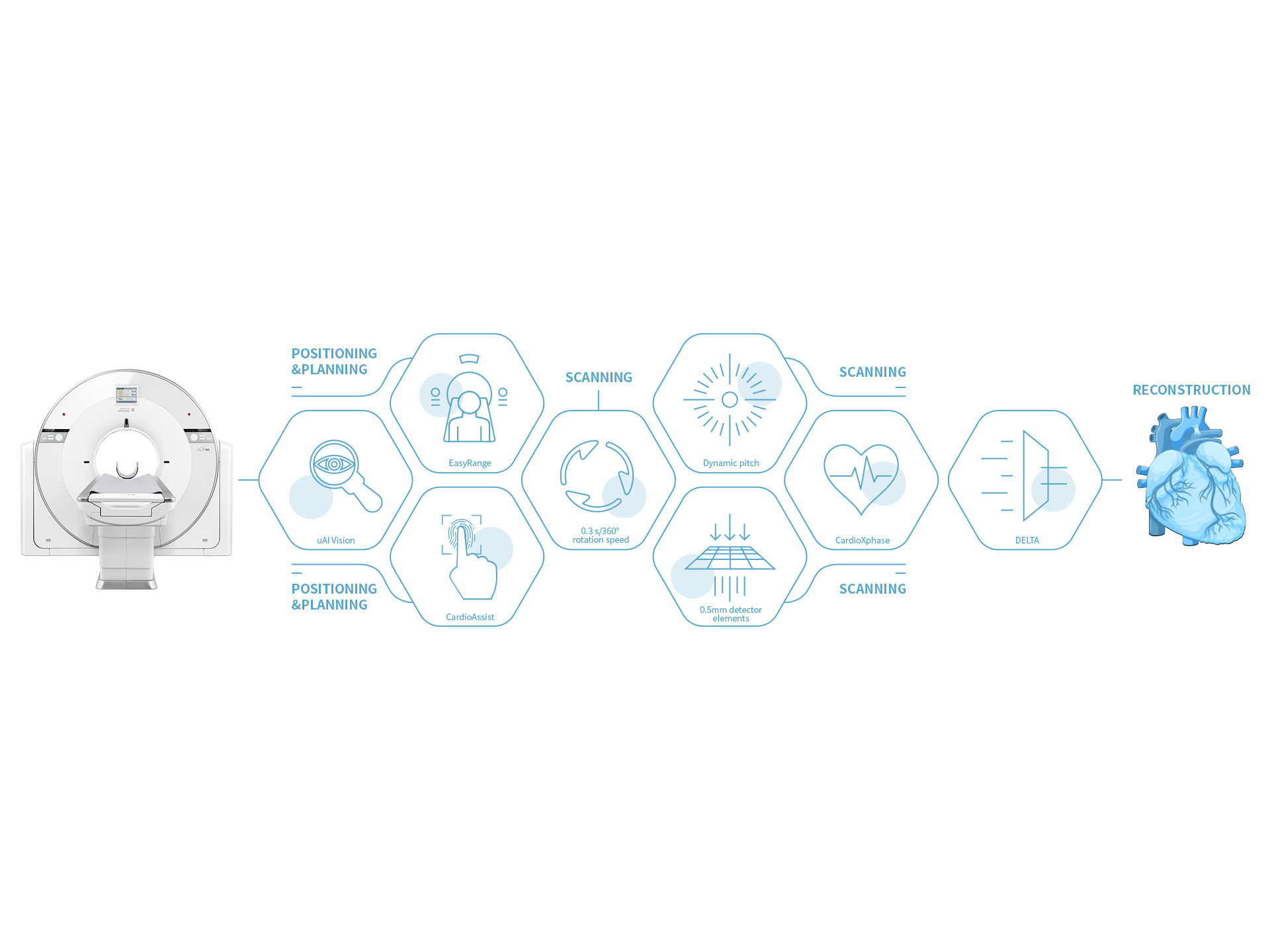

Cardiac CT imaging is commonly used, yet complex cases need more advanced solutions. uCT 780 combines AI workflows with advanced hardware to offer a smooth and efficient examination experience for intricate cardiac scenarios.

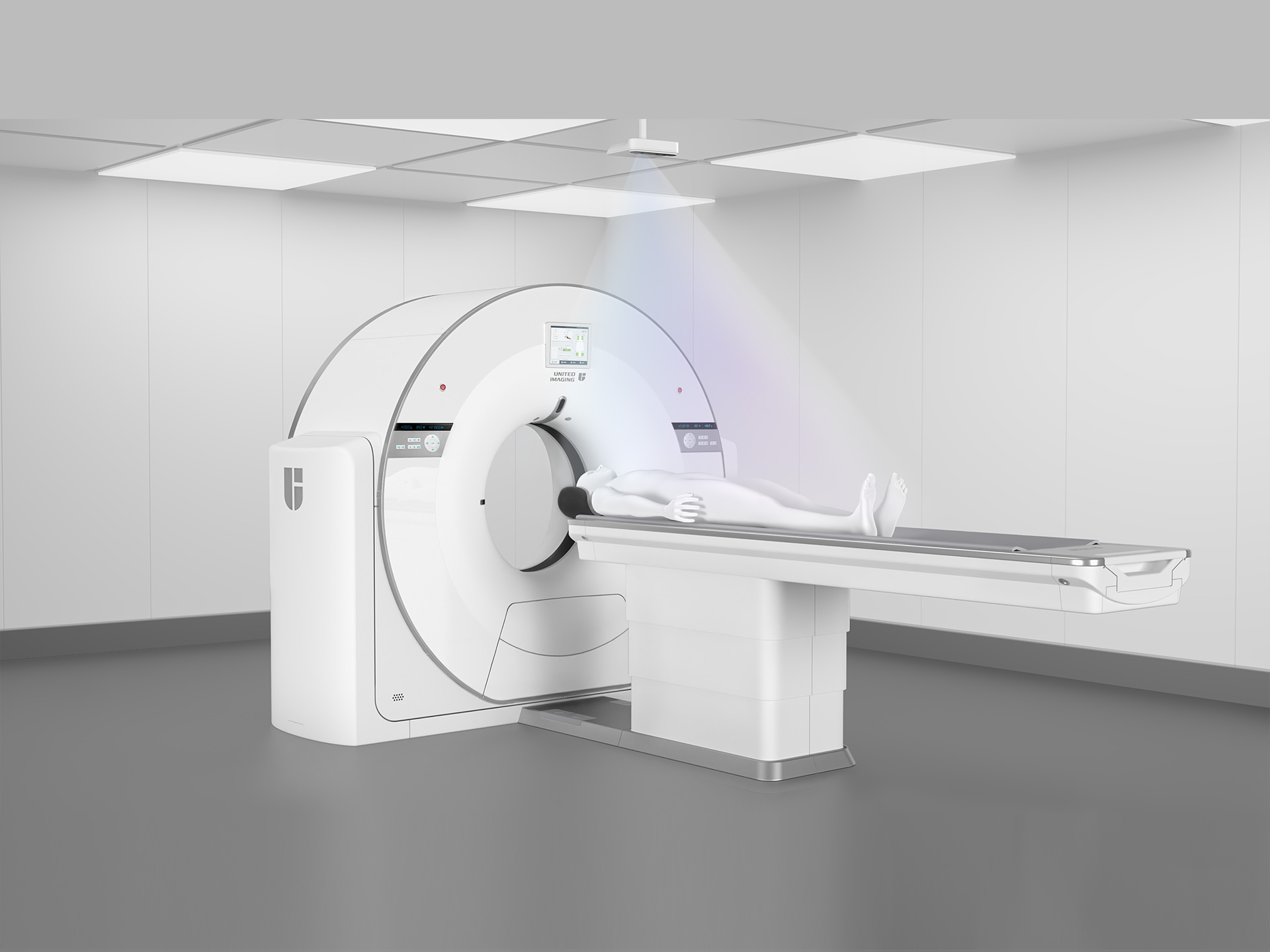

uCT 780 features the innovative uAI Vision 3D camera that enables an AI-empowered workflow. The uAI Vision provides an efficient, standardized and personalized scanning experience for each patient.

*Optional

The native temporal resolution, dictated by rotation speed, directly affects the quality of the raw data collected. The uCT 780 offers a native temporal resolution of 150 ms with a 0.3s rotation speed, helping to enhance image quality at high heart rate.

*Optional

uCT 780 with dynamic pitch technology enables seamless coronary and vascular imaging by rapidly switching between small-pitch ECG-gated and regular-pitch non-gated scan within a single contrast agent injection.

The Z-detector utilizes fully-integrated design for noise reduction with 0.5 mm fine detector units, which helps to enhance spatial resolution and optimize cardiac CT image quality.

For CT systems with 4cm detector coverage, capturing the entire heart requires multiple cardiac cycles, each with an optimal phase, particularly in cases of irregular heart rhythms. CardioXphase enhances overall coronary artery image quality by independently selecting the optimal phase for each cardiac cycle.

DELTA enhances cardiac CT imaging by reducing noise and improving low-contrast detectability, leading to better visualization of anatomical details such as soft plaques in coronary CT scans.

uAI Vision*

uCT 780 features the innovative uAI Vision 3D camera that enables an AI-empowered workflow. The uAI Vision provides an efficient, standardized and personalized scanning experience for each patient.

*Optional

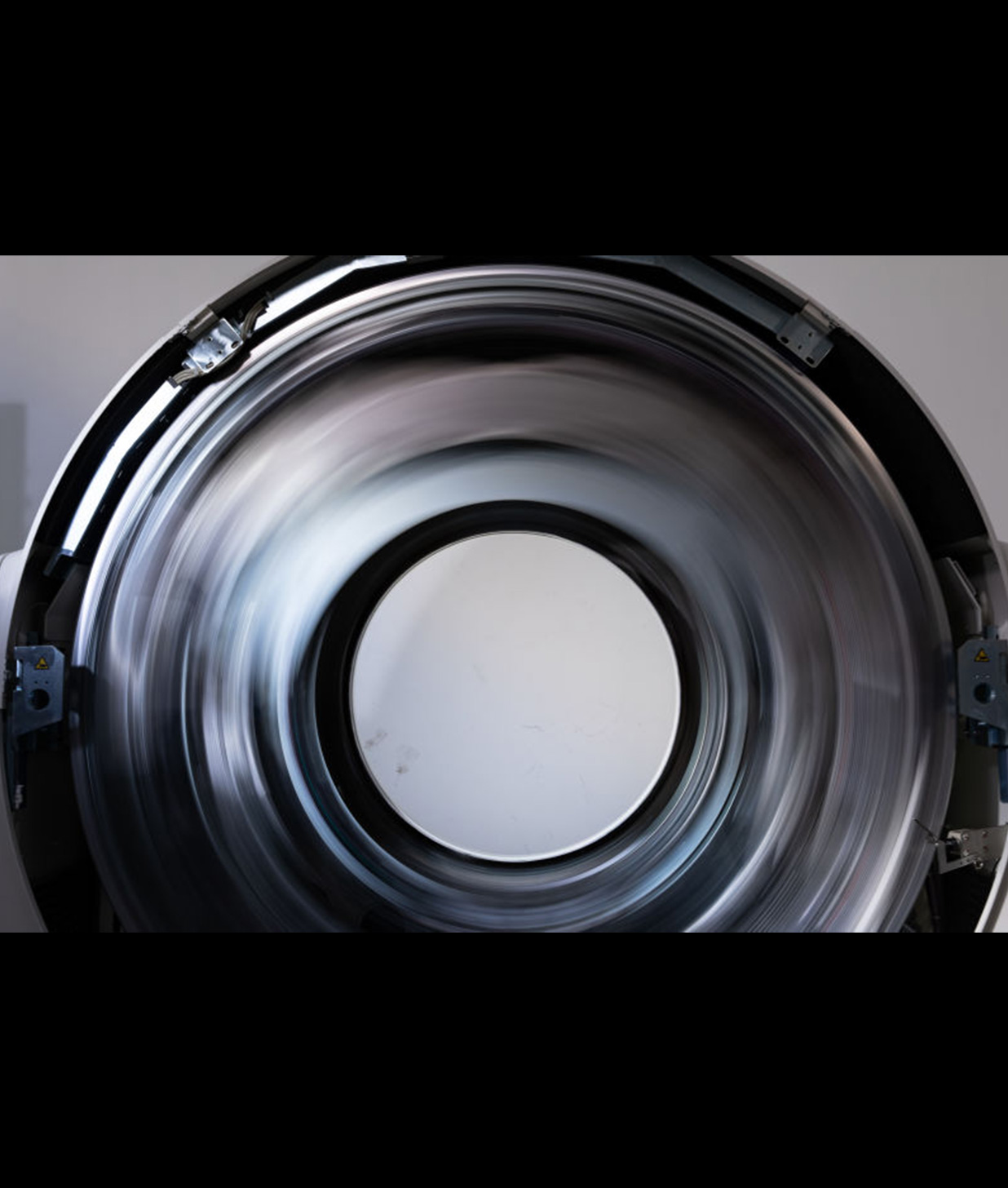

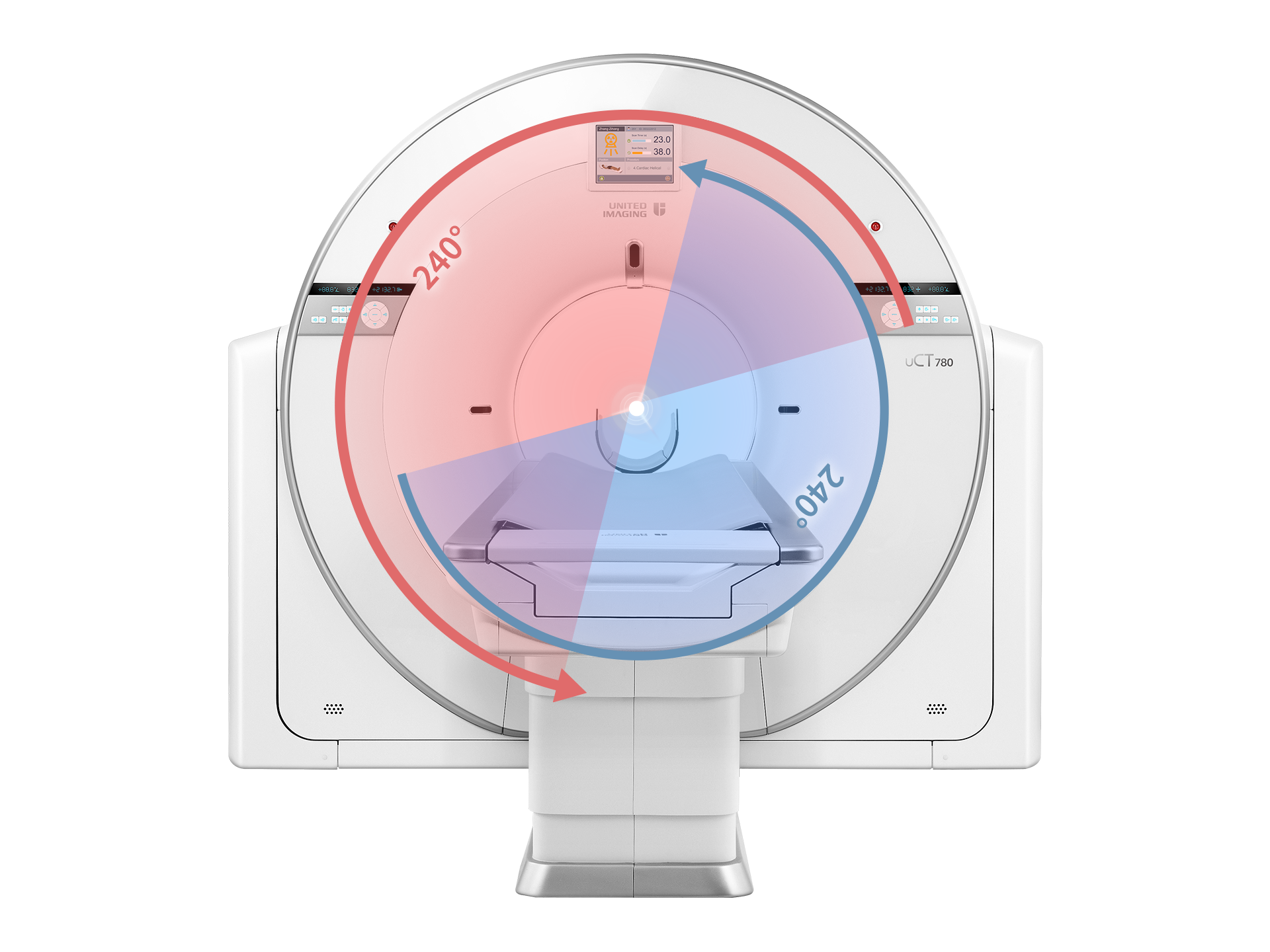

0.3 s Rotation Speed*

The native temporal resolution, dictated by rotation speed, directly affects the quality of the raw data collected. The uCT 780 offers a native temporal resolution of 150 ms with a 0.3s rotation speed, helping to enhance image quality at high heart rate.

*Optional

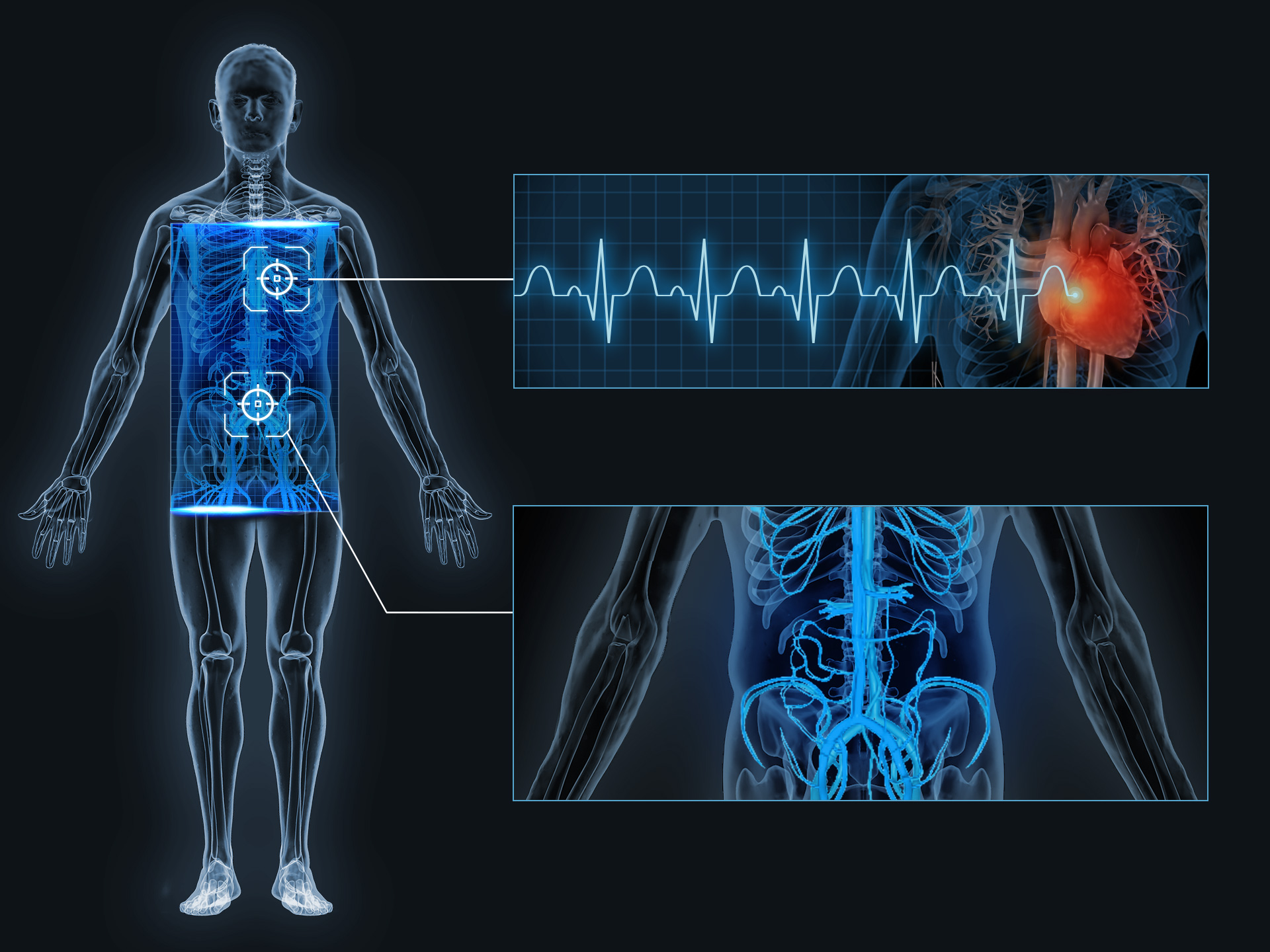

Dynamic Pitch

uCT 780 with dynamic pitch technology enables seamless coronary and vascular imaging by rapidly switching between small-pitch ECG-gated and regular-pitch non-gated scan within a single contrast agent injection.

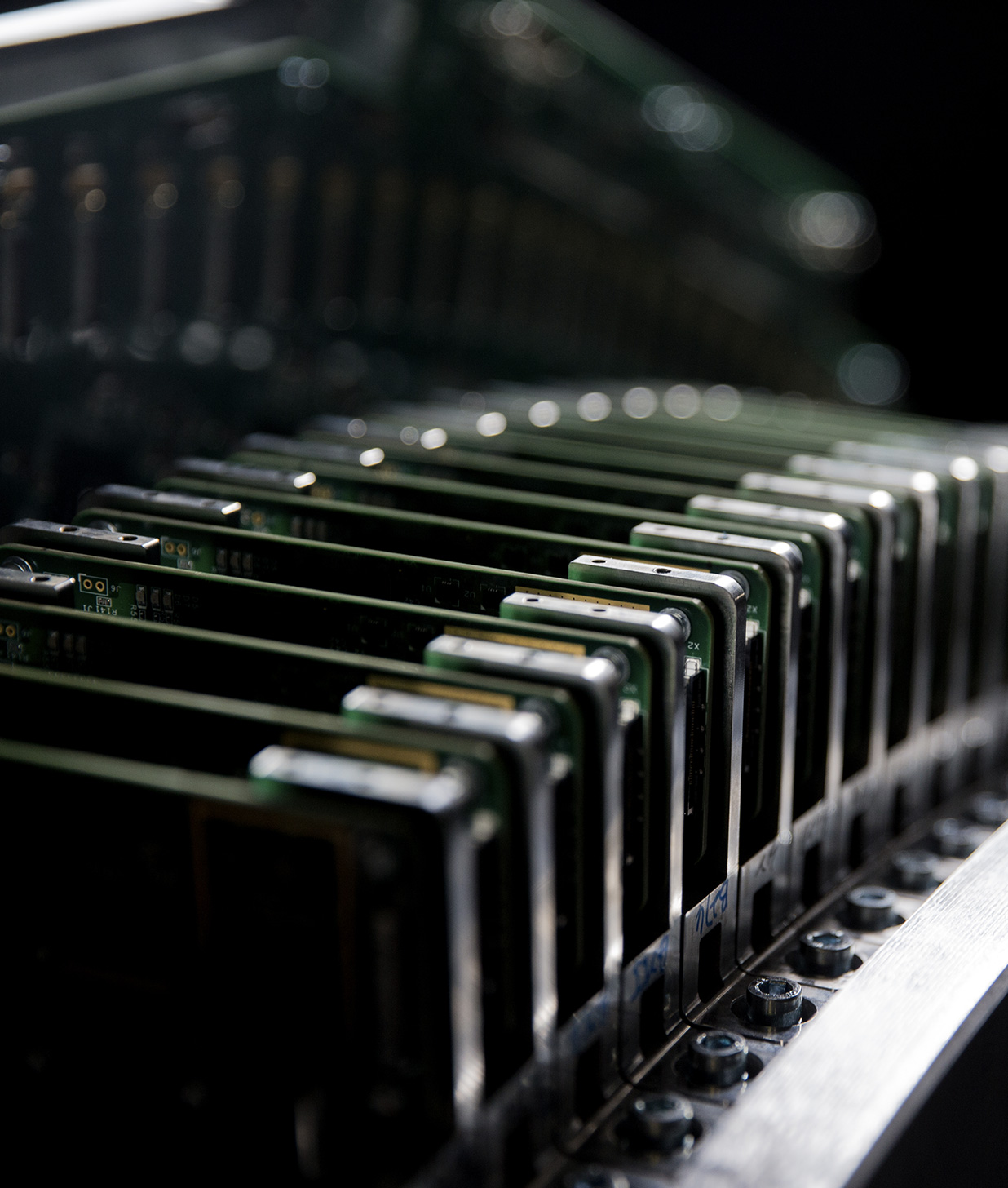

0.5 mm Detector Element Size

The Z-detector utilizes fully-integrated design for noise reduction with 0.5 mm fine detector units, which helps to enhance spatial resolution and optimize cardiac CT image quality.

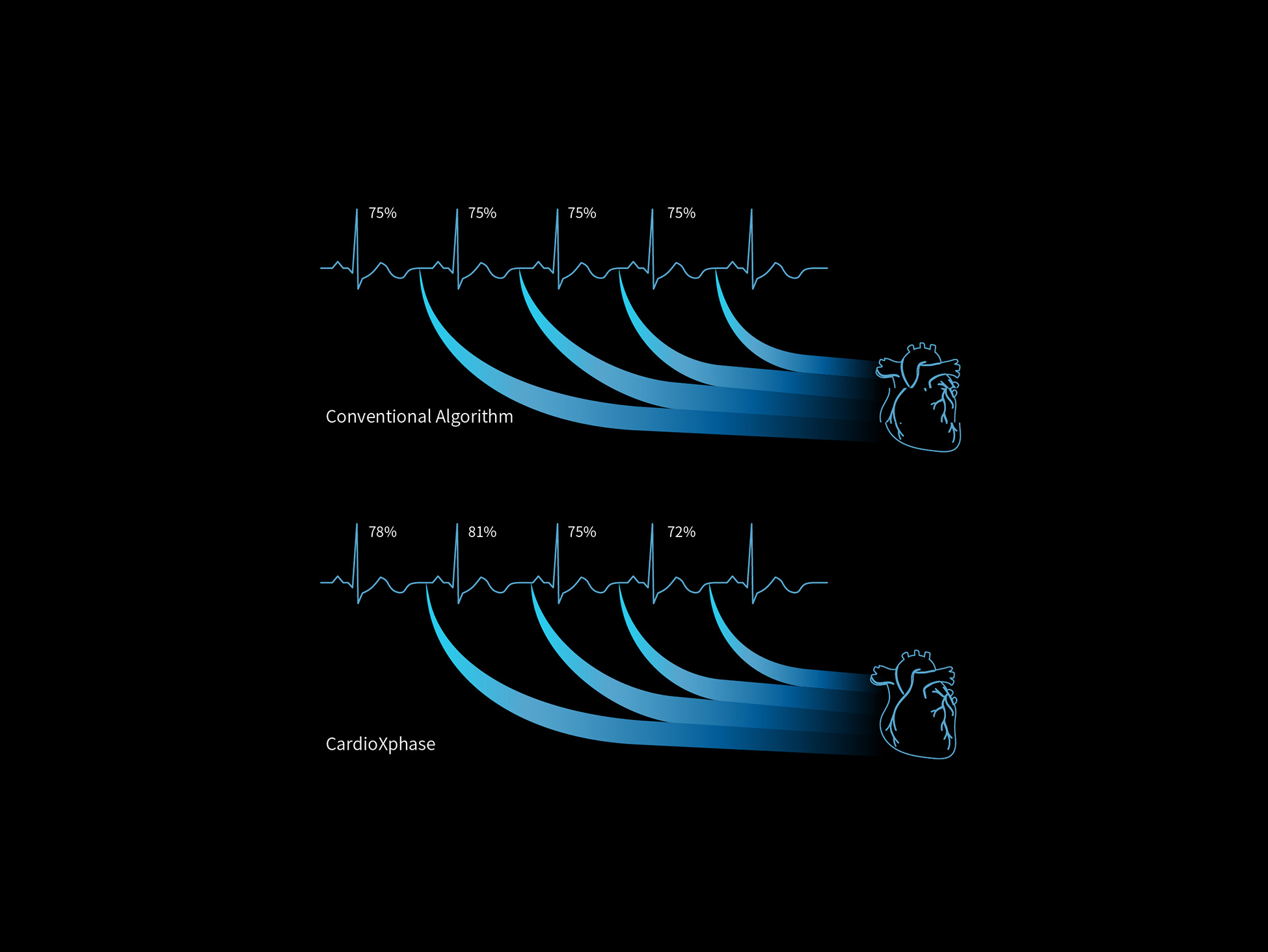

CardioXphase

For CT systems with 4cm detector coverage, capturing the entire heart requires multiple cardiac cycles, each with an optimal phase, particularly in cases of irregular heart rhythms. CardioXphase enhances overall coronary artery image quality by independently selecting the optimal phase for each cardiac cycle.

DELTA

DELTA enhances cardiac CT imaging by reducing noise and improving low-contrast detectability, leading to better visualization of anatomical details such as soft plaques in coronary CT scans.

See More with Ease

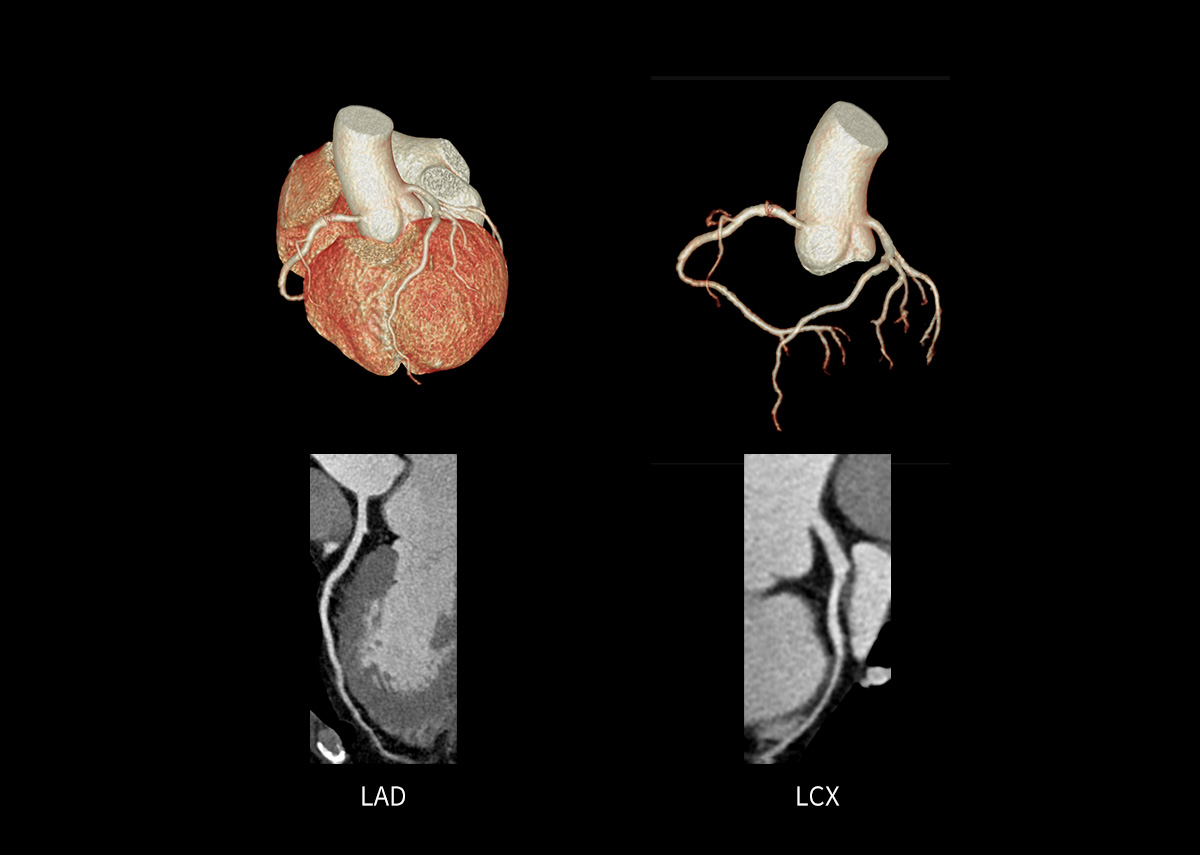

For a patient with a high heart rate of 93 bpm, thanks to 0.3s rotation speed, the images obtained were clear without significant motion artifacts.

  • CorCTA Helical
  • 0.30 sec/rotation
    kV: 100
    mAs: 160
    CTDIvol: 32.176 mGy
    Eff. Dose: 6.21 mSv
    AvgHR：93 bpm
    MinHR：85 bpm
    MaxHR：96 bpm
  • Reconstruction
  • Matrix: 512x512
    Slice: 0.75x0.5 mm
    HIR: C_SOFT_BA/KARL: 5
  • Contrast
  • 350 mg/ml
    50 ml
    5.0 ml/s
See More with Ease

Coronary artery and aortic CTA is essential for preoperative assessment and surgical planning in TAVR. uCT 780 utilizes dynamic pitch to provide one-stop cardiac and aortic imaging with a single contrast agent injection. And the analysis software would display important quantitative parameters and annotations of key locations.

  • CorCTA+Aort CTA
  • 0.30 sec/rotation
    kV: 80
    mAs: 150
    CTDIvol: 7.132 mGy
    Eff. Dose: 6.62 mSv
    AvgHR：75 bpm
    MinHR：63 bpm
    MaxHR：86 bpm
  • Reconstruction
  • Matrix: 512x512
    Slice: 1.0x0.5 mm
    HIR: B_SOFT_B/KARL: 5
  • Contrast
  • 370 mg/ml
    95 ml
    5.0 ml/s
See More with Ease

DELTA can significantly reduces image noise, particularly in curved surface reconstruction, and enhances the contrast of coronary soft plaques.

  • CorCTA Helical
  • 0.30 sec/rotation
    kV: 80
    mAs: 150
    CTDIvol: 10.064 mGy
    Eff. Dose: 2.57 mSv
    AvgHR：48 bpm
    MinHR：46 bpm
    MaxHR：54 bpm
  • Reconstruction
  • Matrix: 512x512
    Slice: 0.75x0.5 mm
    DELTA: 3
  • Contrast
  • 350 mg/ml
    50 ml
    5.0 ml/s
See More with Ease

The dynamic pitch technology on uCT 780 adjusts pitch accordingly for coronary (small pitch) and cervical (large pitch) scans, providing clear coronary imaging with detailed cervical vascular information.

  • CorCTA+Carotid CTA
  • 0.30 sec/rotation
    kV: 100
    mAs: 163
    CTDIvol: 17.284 mGy
    Eff. Dose: 8.17 mSv
    AvgHR：76 bpm
    MinHR：62 bpm
    MaxHR：90 bpm
  • Reconstruction
  • Matrix: 512x512
    Slice: 1.0*0.5mm
    HIR: B_SOFT_B/KARL: 5
  • Contrast
  • 370 mg/ml
    60 ml
    5.0 ml/s
See More with Ease

For a patient with a high heart rate of 93 bpm, thanks to 0.3s rotation speed, the images obtained were clear without significant motion artifacts.

  • CorCTA Helical
  • 0.30 sec/rotation
    kV: 100
    mAs: 160
    CTDIvol: 32.176 mGy
    Eff. Dose: 6.21 mSv
    AvgHR：93 bpm
    MinHR：85 bpm
    MaxHR：96 bpm
  • Reconstruction
  • Matrix: 512x512
    Slice: 0.75x0.5 mm
    HIR: C_SOFT_BA/KARL: 5
  • Contrast
  • 350 mg/ml
    50 ml
    5.0 ml/s
See More with Ease

Coronary artery and aortic CTA is essential for preoperative assessment and surgical planning in TAVR. uCT 780 utilizes dynamic pitch to provide one-stop cardiac and aortic imaging with a single contrast agent injection. And the analysis software would display important quantitative parameters and annotations of key locations.

  • CorCTA+Aort CTA
  • 0.30 sec/rotation
    kV: 80
    mAs: 150
    CTDIvol: 7.132 mGy
    Eff. Dose: 6.62 mSv
    AvgHR：75 bpm
    MinHR：63 bpm
    MaxHR：86 bpm
  • Reconstruction
  • Matrix: 512x512
    Slice: 1.0x0.5 mm
    HIR: B_SOFT_B/KARL: 5
  • Contrast
  • 370 mg/ml
    95 ml
    5.0 ml/s
See More with Ease

DELTA can significantly reduces image noise, particularly in curved surface reconstruction, and enhances the contrast of coronary soft plaques.

  • CorCTA Helical
  • 0.30 sec/rotation
    kV: 80
    mAs: 150
    CTDIvol: 10.064 mGy
    Eff. Dose: 2.57 mSv
    AvgHR：48 bpm
    MinHR：46 bpm
    MaxHR：54 bpm
  • Reconstruction
  • Matrix: 512x512
    Slice: 0.75x0.5 mm
    DELTA: 3
  • Contrast
  • 350 mg/ml
    50 ml
    5.0 ml/s
See More with Ease

The dynamic pitch technology on uCT 780 adjusts pitch accordingly for coronary (small pitch) and cervical (large pitch) scans, providing clear coronary imaging with detailed cervical vascular information.

  • CorCTA+Carotid CTA
  • 0.30 sec/rotation
    kV: 100
    mAs: 163
    CTDIvol: 17.284 mGy
    Eff. Dose: 8.17 mSv
    AvgHR：76 bpm
    MinHR：62 bpm
    MaxHR：90 bpm
  • Reconstruction
  • Matrix: 512x512
    Slice: 1.0*0.5mm
    HIR: B_SOFT_B/KARL: 5
  • Contrast
  • 370 mg/ml
    60 ml
    5.0 ml/s

Evolve with Versatility

In addition to the clinical applications of conventional 64-row CT scanners, the uCT 780 showcases remarkable versatility. Equipped with spectral and dynamic perfusion imaging, it serves as a valuable tool across various clinical scenarios.

The dynamic perfusion technique provides a wider perfusion scanning range than the detector coverage, which is capable of delivering whole-brain functional information within the 2-second cycle time.

uCT 780 acquires dual-energy CT data by switching kV settings between consecutive rotations, which can reduce spectral blurring during transitions and improve spectral separation.

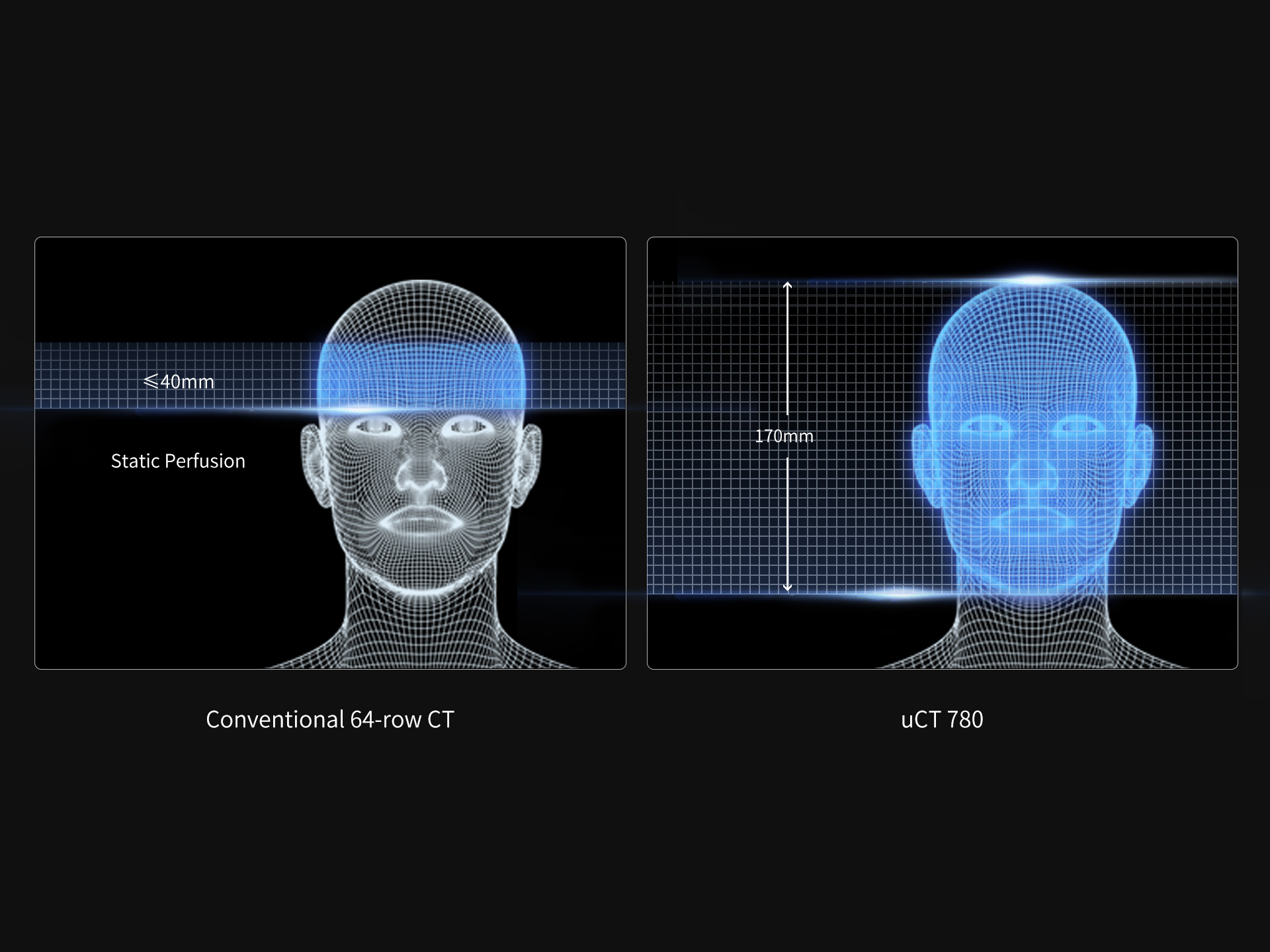

170 mm Dynamic Cerebral Perfusion

The dynamic perfusion technique provides a wider perfusion scanning range than the detector coverage, which is capable of delivering whole-brain functional information within the 2-second cycle time.

Spectral Imaging

uCT 780 acquires dual-energy CT data by switching kV settings between consecutive rotations, which can reduce spectral blurring during transitions and improve spectral separation.

See More with Versatility

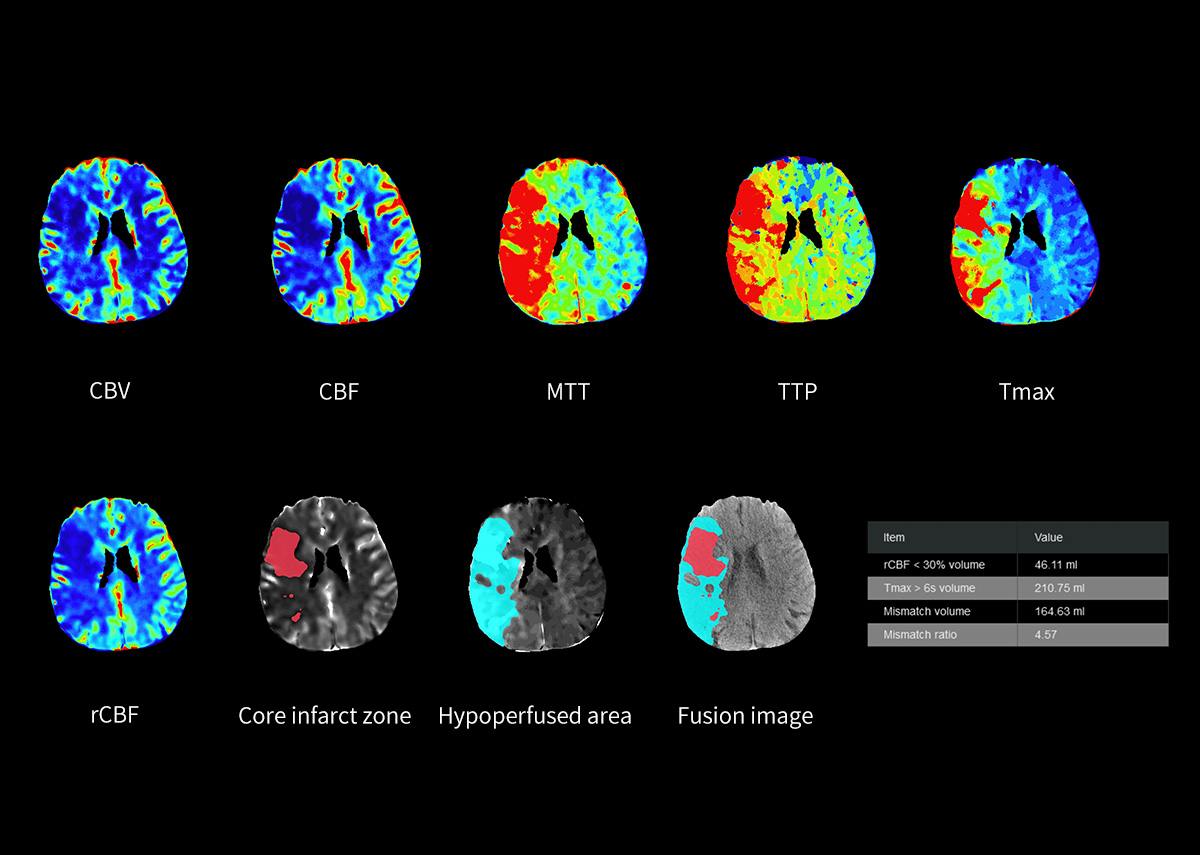

Whole-brain dynamic perfusion imaging, with a scanning length of 14 cm, combines wide-ranging dynamic perfusion imaging with an intelligent post-processing software, which can rapidly and accurately present quantitative analysis results for whole-brain functional studies.

  • Head Shuttle Perfusion
  • 0.35 sec/rotation
    kV: 100
    mAs: 75
    CTDIvol: 336.461 mGy
    Eff. Dose: 8.35 mSv
  • Reconstruction
  • Matrix: 512x512
    Slice: 5.0x5.0 mm
    DELTA: 3
  • Contrast
  • 350 mg/ml
    55 ml
    5.0 ml/s
See More with Versatility

By combining dynamic perfusion techniques with the DELTA deep learning reconstruction algorithm, detailed 4D CTA images of both cerebral arteries and veins can be obtained even at low radiation dose.

  • Head Shuttle Perfusion
  • 0.50 sec/rotation
    kV: 80
    mAs: 150
    CTDIvol: 265.838 mGy
    Eff. Dose: 6.13 mSv
  • Reconstruction
  • Matrix: 512x512
    Slice: 5.0x5.0 mm
    DELTA: 3
  • Contrast
  • 350 mg/ml
    45 ml
    4.5 ml/s
See More with Versatility

The dual energy analysis software can calculate the total volume of urate crystal and analyze the composition of gout stones through effective atomic number.

  • Upper Extremity Helical DE
  • 0.50 sec/rotation
    kV: 140/80
    mAs: 100/400
    CTDIvol: 12.123/4.831 mGy
    Eff. Dose: 3.07/1.23 mSv
  • Recon
  • Matrix: 512x512
    Slice: 1.0x0.5 mm
    HIR: B_SOFT_B
  • Contrast
  • -
See More with Versatility

Whole-brain dynamic perfusion imaging, with a scanning length of 14 cm, combines wide-ranging dynamic perfusion imaging with an intelligent post-processing software, which can rapidly and accurately present quantitative analysis results for whole-brain functional studies.

  • Head Shuttle Perfusion
  • 0.35 sec/rotation
    kV: 100
    mAs: 75
    CTDIvol: 336.461 mGy
    Eff. Dose: 8.35 mSv
  • Reconstruction
  • Matrix: 512x512
    Slice: 5.0x5.0 mm
    DELTA: 3
  • Contrast
  • 350 mg/ml
    55 ml
    5.0 ml/s
See More with Versatility

By combining dynamic perfusion techniques with the DELTA deep learning reconstruction algorithm, detailed 4D CTA images of both cerebral arteries and veins can be obtained even at low radiation dose.

  • Head Shuttle Perfusion
  • 0.50 sec/rotation
    kV: 80
    mAs: 150
    CTDIvol: 265.838 mGy
    Eff. Dose: 6.13 mSv
  • Reconstruction
  • Matrix: 512x512
    Slice: 5.0x5.0 mm
    DELTA: 3
  • Contrast
  • 350 mg/ml
    45 ml
    4.5 ml/s
See More with Versatility

The dual energy analysis software can calculate the total volume of urate crystal and analyze the composition of gout stones through effective atomic number.

  • Upper Extremity Helical DE
  • 0.50 sec/rotation
    kV: 140/80
    mAs: 100/400
    CTDIvol: 12.123/4.831 mGy
    Eff. Dose: 3.07/1.23 mSv
  • Recon
  • Matrix: 512x512
    Slice: 1.0x0.5 mm
    HIR: B_SOFT_B
  • Contrast
  • -
Technical Details

Tube anode storage capacity

7.5 MHU

Detector

Z-Detector

Number of detector rows

80

Max. slices generated per rotation

160

Rotation time

0.3 s*/360° scans

kV settings

70,80,100,120,140 kV

Generator power

100* kW

Aperture

70 cm

Table load

205 kg / 451 lbs

*optional
