Simple is a new smart

uCT 528 is designed for sophisticated CT applications through simple operations, coming with lower radiation dose, higher efficiency and improved profitability.

Boost efficiency of routine practices

Smart Workflow

Reduce total cost of ownership

Smart Design

Deliver lower radiation dose and better patient care

Smart Dose

uCT 528 with Smart Workflow, Smart Design and Smart Dose

Smart Workflow

a patient is in the bore for a fast scan
Easy-Logic

The system predicts the user's coming operation, based on which the scan procedure is automatically arranged

Easy-Range

EasyRange generates the optimized 3D dose distribution based on anatomic information, making each exam customized

Smart Design

Advanced post-processing applications of uCT 528
Advanced Applications

Advanced post-processing applications* are integrated on the console to improve diagnostic convenience without a separate workstation

*Advanced post-processing applications are registered separately from CT

Green Mode


uECO mode saves 30% power consumption compared to conventional stand-by mode

Advanced post-processing applications of uCT 528

Smart Dose

uDose 3D Dose Modulation

uDose 3D Dose Modulation

uDose generates an optimized 3D dose distribution plan for every individual scan according to anatomical information

KARL 3D Iterative Denoising

KARL 3D Iterative Denoising

KARL 3D performs in both projection and image spaces to provide low dose and high quality images

70kV Scan Mode

70kV Scan Mode

70kV scan mode can increase signal-to-noise ratio(SNR), which can be especially beneficial for pediatric patients, contrast imaging and CT venography (CTV) imaging

Innovation Z-Detector

Z-Detector with High Quality Material, Ultra-low Noise Design and Fine Sampling
High Quality Material

Gadolinium oxysulfide scintillator (GOS) provides a fast and high conversion efficiency of X-rays.

Ultra-low Noise Design

The Z-Detector with highly integrated technology, significantly reduces noise to provide low dose, high quality images.

Fine Sampling

The refined voxel size realizes the exquisite visualization of anatomical details.

Clinical Applications

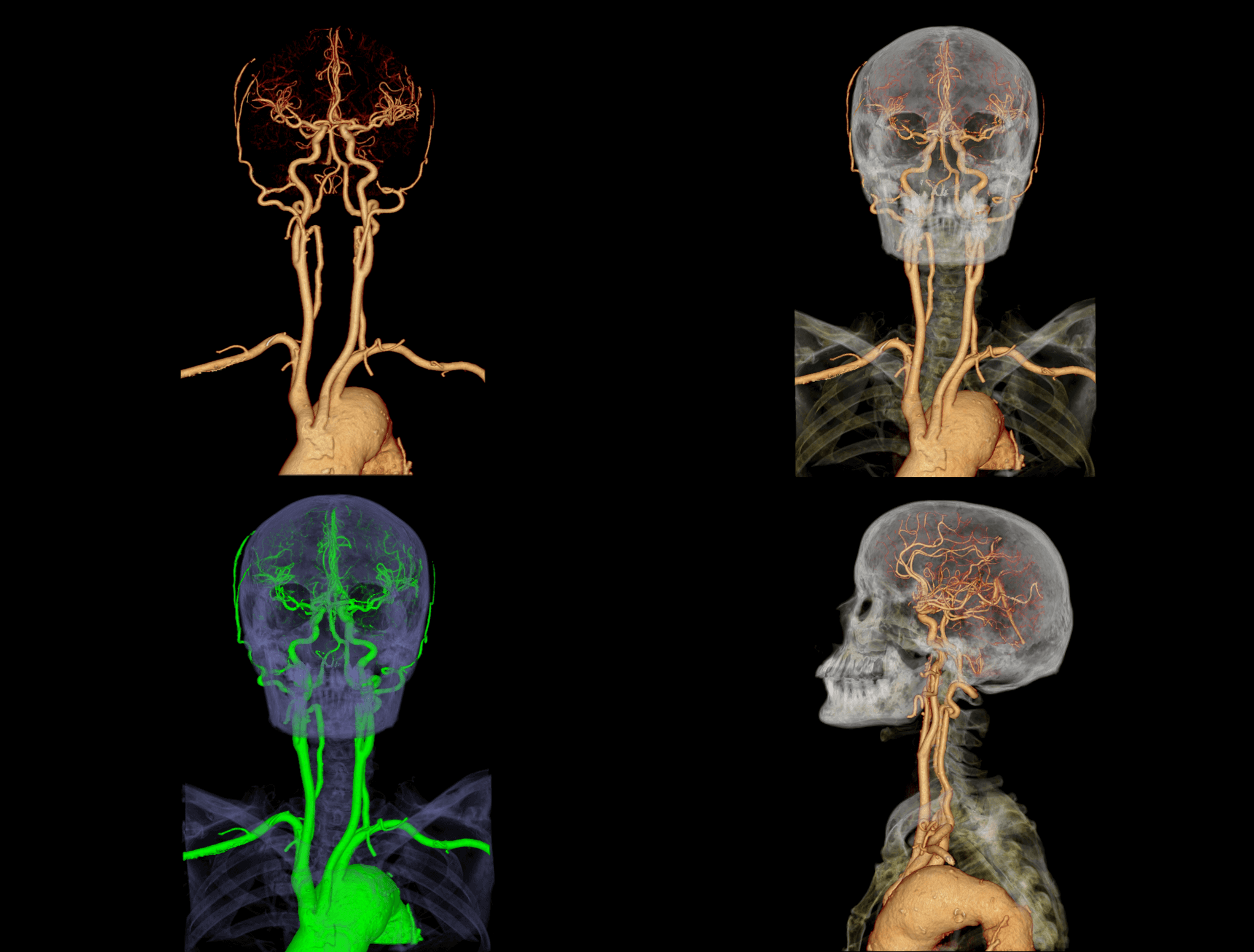

Head and Neck CTA

Head and Neck CTA

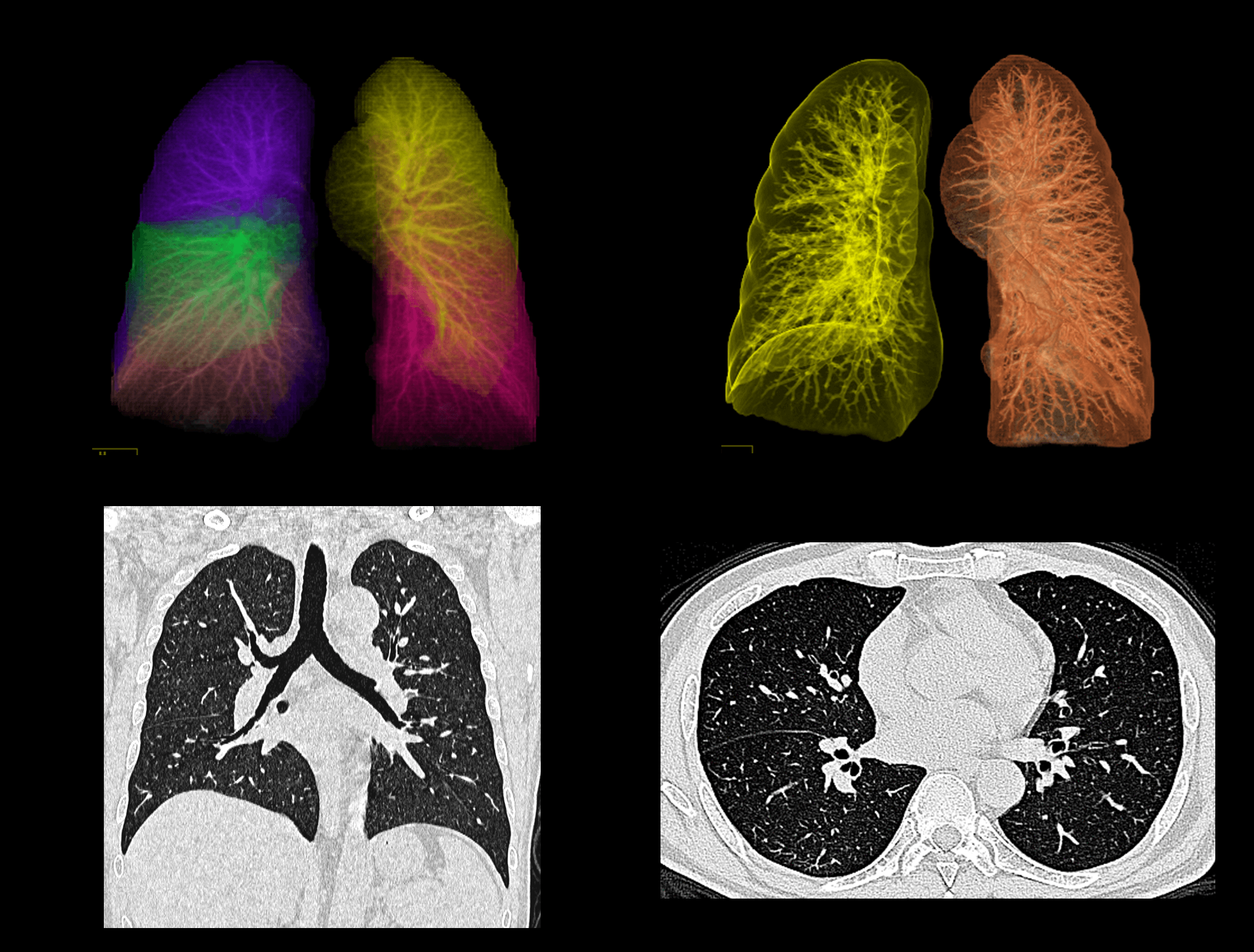

Lung Density Analysis

Lung Density Analysis

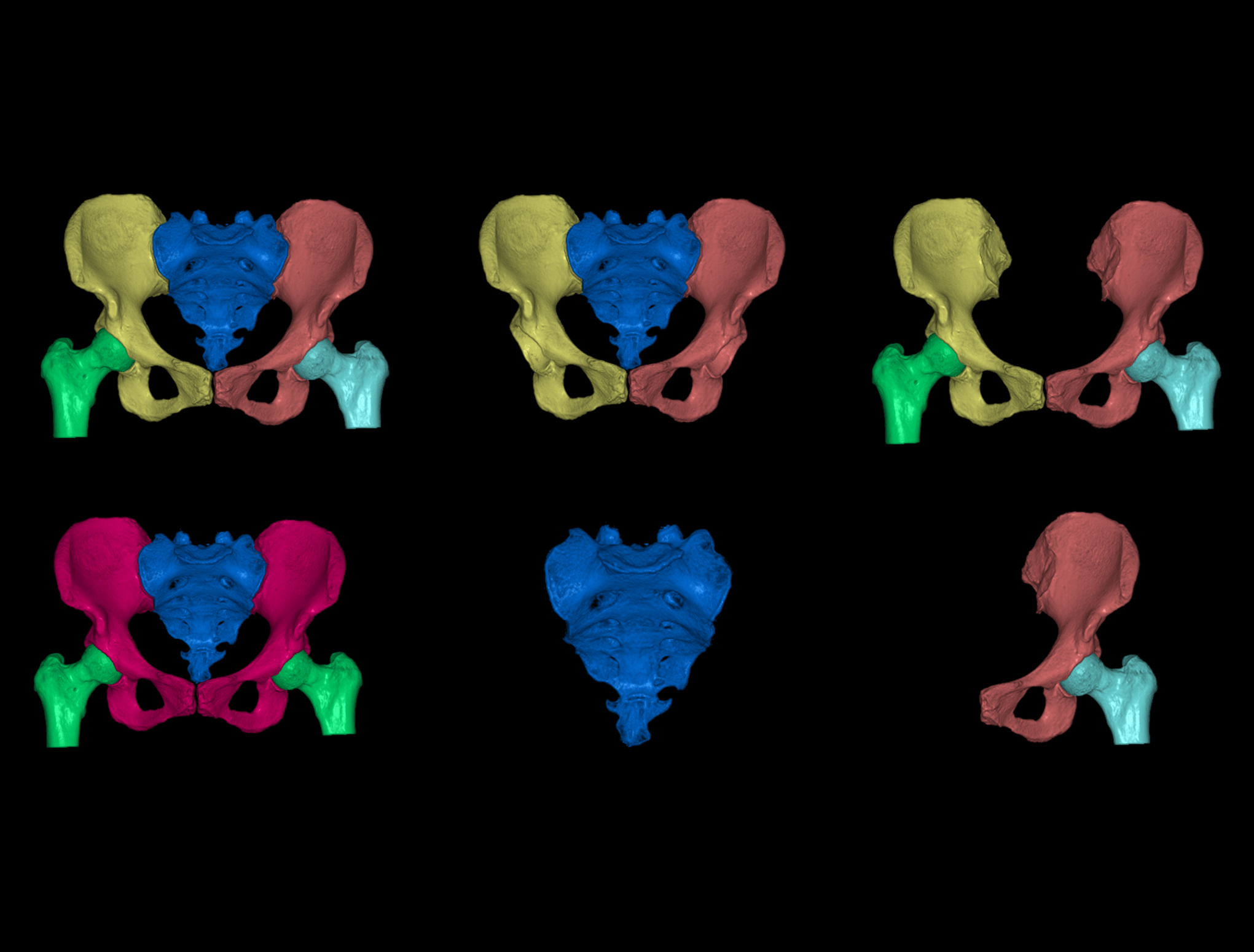

Review 3D - Hip Joint

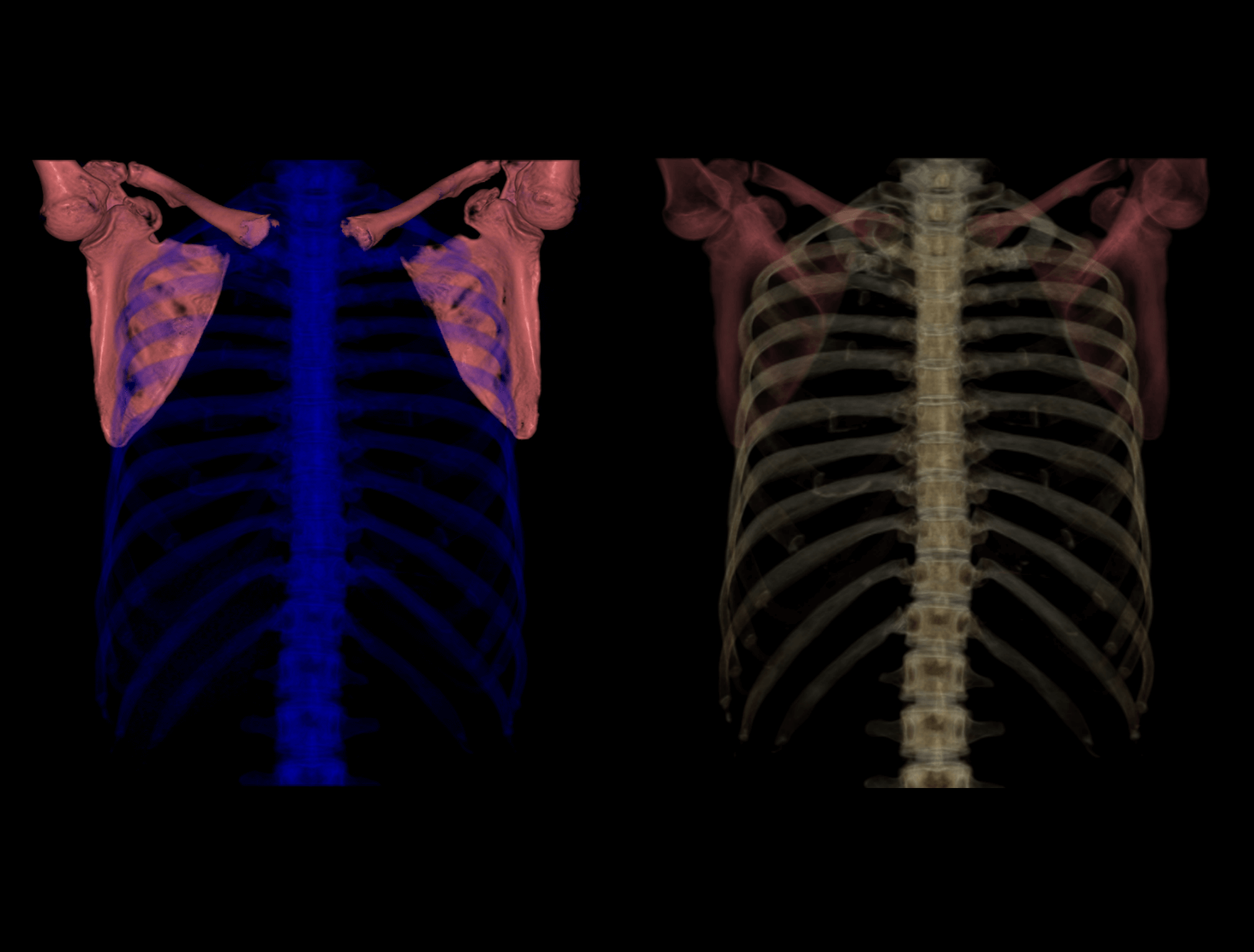

Review 3D - Shoulder Joint

Review 3D - Hip Joint

Review 3D - Hip Joint

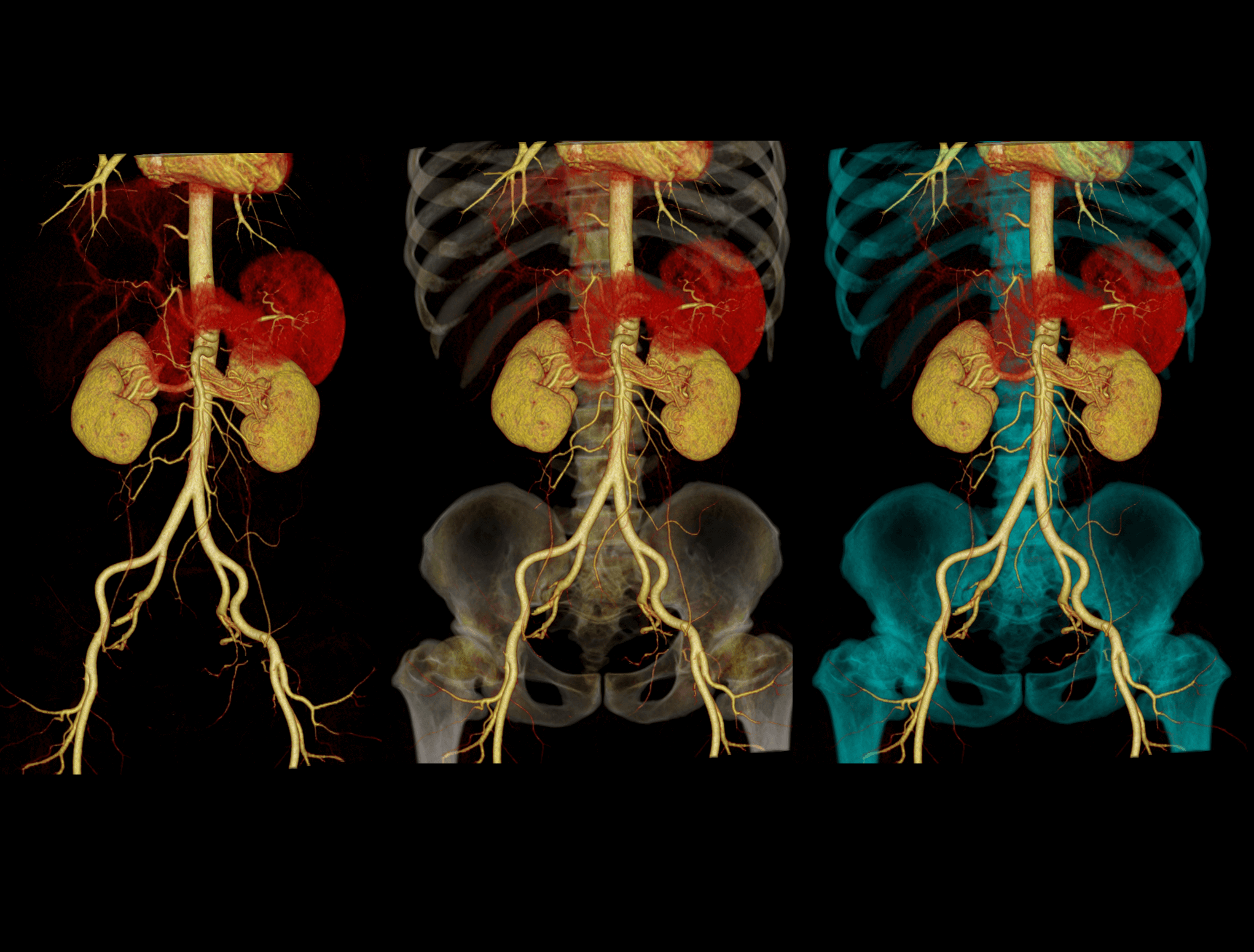

Large Range Scan-Abdominal CTA

Large Range Scan - Abdominal CTA

CTU

CTU

Technical Details

Tube anode storage capacity

3.5 MHU

Detector

Z-Detector

Number of detector rows

40

Max. slices generated per rotation

80*

Rotation time

0.75 s/360°

kV settings

70,80,100,120,140 kV

Generator power

42 kW

Aperture

70 cm

Table load

205 kg

*optional
